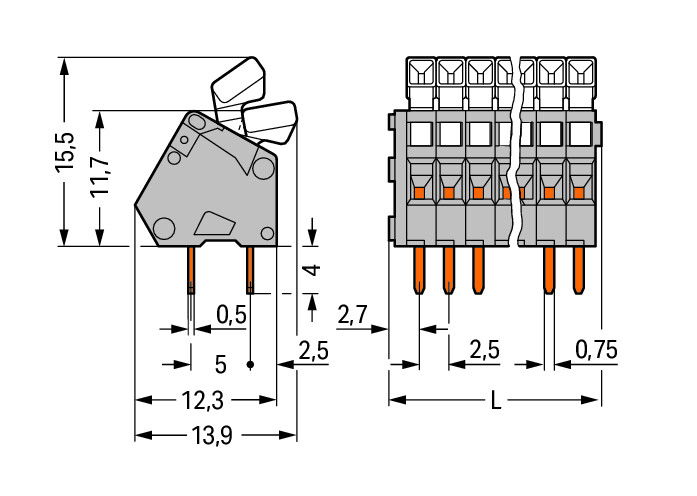

| Height |
15.5 |
| EFNA0008 |
V0 |
| Length pin |
4 |
| Rated voltage |
160 |
| Housing colour |
Grey |
| Type of banding |
None |
| Number of levels |
1 |
| Pollution degree |
2 |
| Rated current In |
6 |
| Type of fastening |
Solder |
| Connection type PCB |
Soldering connection |
| Rated surge voltage |
2.5 |
| Operating temperature |
-60 - 105 |
| Over voltage category |
III |
| Type of PCB fastening |
Connecting contact |
| Diameter connection pin |
- |
| Material insulation body |
Thermoplastic |
| Connection type conductor |
Spring clamp connection |
| Material connection surface |
Tin |
| Modular spacing connections |
2.5 |
| RAL-number (similar) housing |
- |
| Angle PCB/conductor connection |
Other |
| Number of electrical connections |
6 |
| Degree of protection (IP), mounted |
- |
| Connectable conductor cross section solid-core |
0.08 - 0.5 |
| Connectable conductor cross section multi-wired |
0.08 - 0.5 |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.25 |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.08 - 0.5 |
