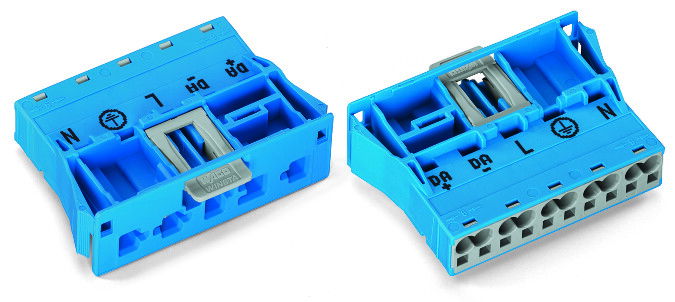

Snap-in plug 5-pole Cod. I blue

Snap-in plug 5-pole Cod. I blue by Wago is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £3.31 excl. VAT.

Snap-in plug; 5-pole; Cod. I; 4,00 mm²; blue

Product identifiers

SKU: 770-2115
EAN: 4055143375887
GTIN: 4055143375887
MPN: 770-2115

Voltimum+ Loyalty Programme Loyalty points: 7 (x100)

Price: £ 3.31 Excl. VAT

Specifications

Model Plug
Width 55.5
Height 18.5
Length 41.1
Fire load 0.10722
Halogen free yes
Rated current 25
Rated voltage 400
Connection type Spring clamp connection
Type of locking Integrated in plug-in connector
Contact material CuSn
Insert direction Straight
Mechanical coding yes
Rated surge voltage 6
Length soldering pin -
Connection size thread No thread connection
Degree of protection (IP) IP20
Colour coding/contact insert Blue
RAL-number coding/contact insert 5015
Connection cross section (solid-core) 0.5 - 4
Max. continuous temperature resistance contact part 85
