ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Transp.cover H60
1 / 2
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Transp.cover H60
ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Transp.cover H60 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £60.93 to £67.63 excl. VAT. Voltimum+ members earn 8 points per unit.

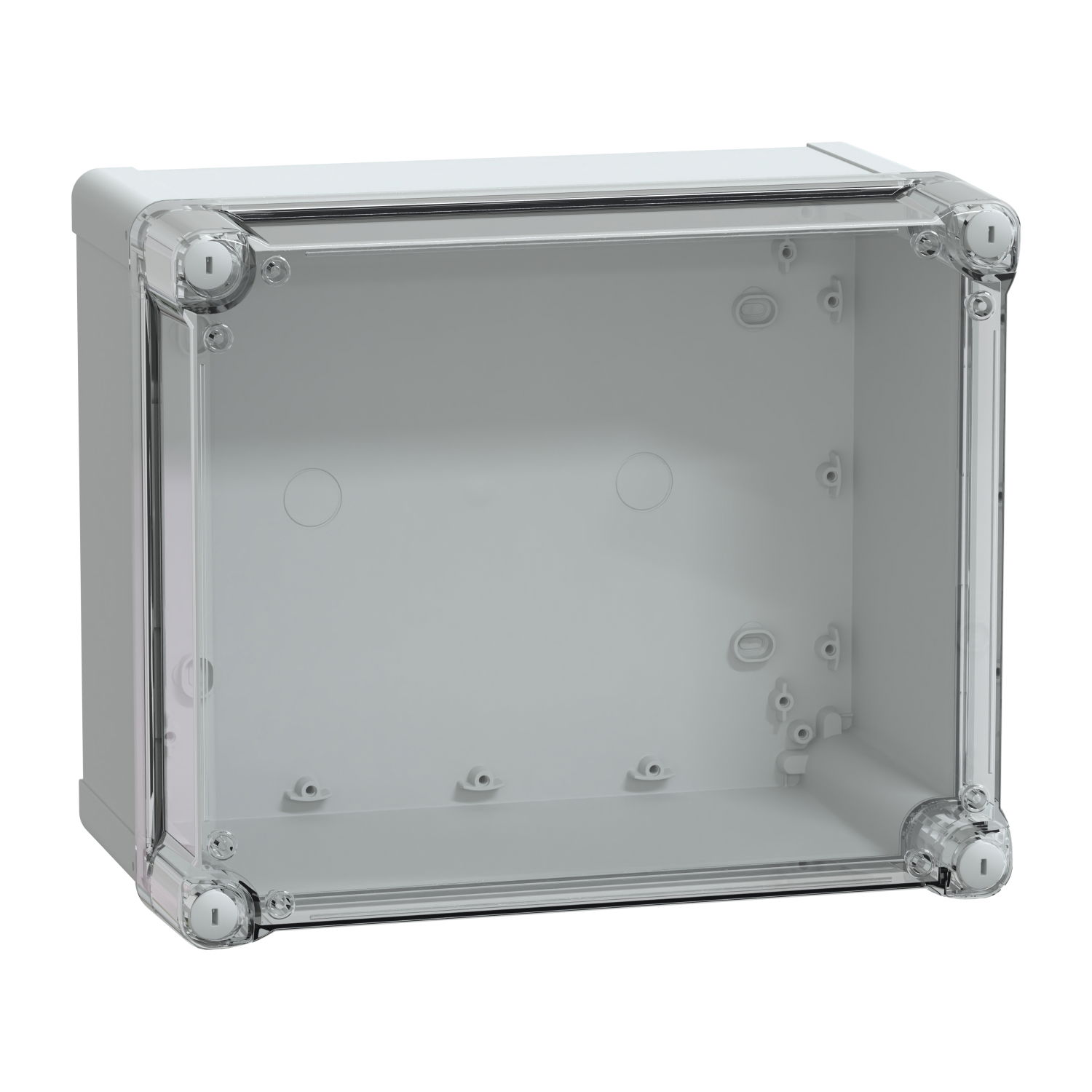

PanelSeT TBS industrial ABS box with transparent cover H60. Int is 275 x 225 x 160 mm. Ext is 291 x 241 x 168 mm. Wall mounted enclosure. High transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Product identifiers
SKU: NSYTBS292416HT
EAN: 3606480165559
GTIN: 3606480165559
MPN: NSYTBS292416HT
Loyalty points:
8
Price range: £ 60.93 - £ 67.63 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 168 mm |
| Width | 241 mm |
| Colour | Grey |
| Height | 291 mm |
| With lock | no |
| RAL-number | 7035 |
| Cover model | Closed |
| Inner depth | 160 mm |
