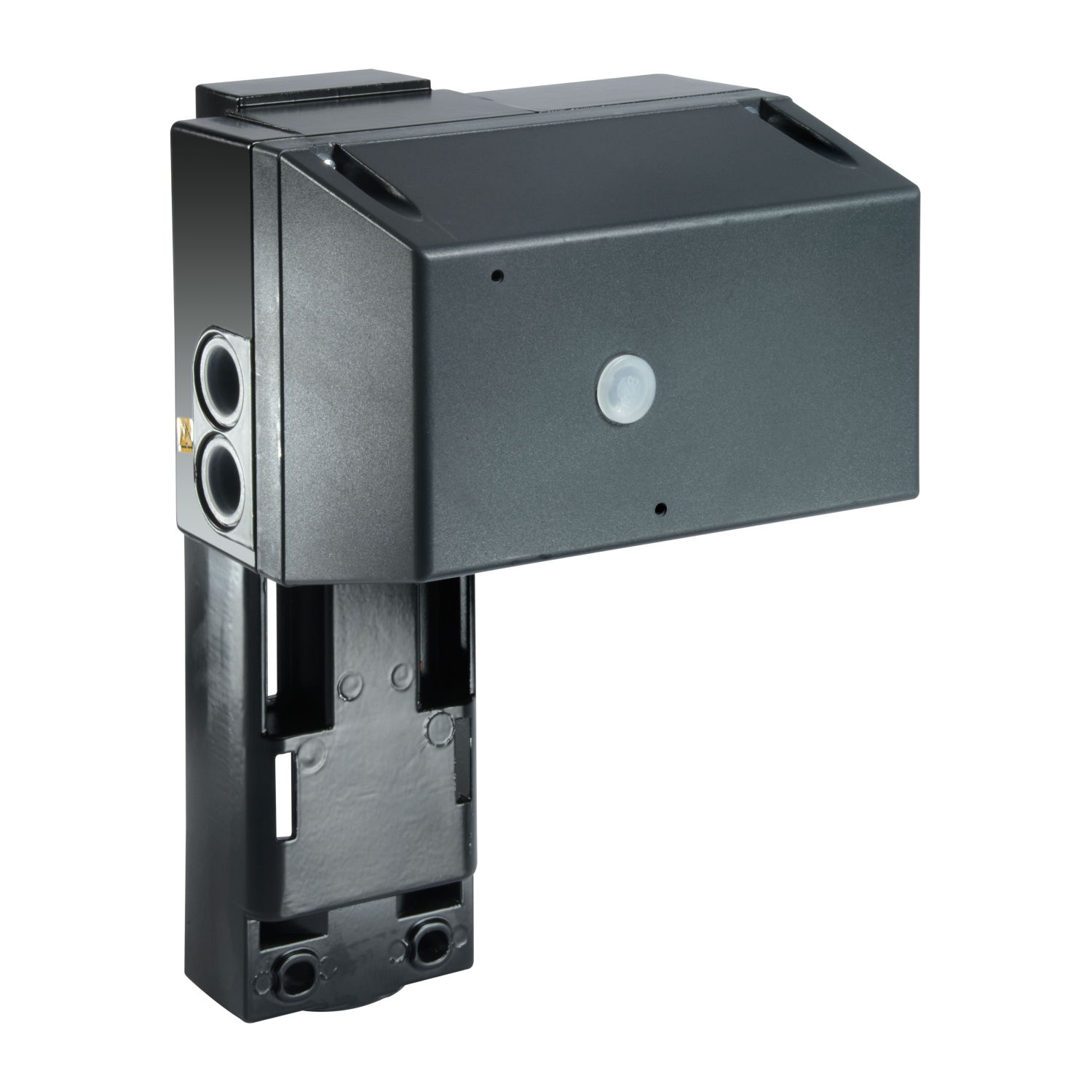

The MV15B is a powerful 3-point floating actuator for the control of 2-way and 3-way globe valves. The actuator self adjusts to the stroke of whatever valve it is connected to. The U-bolt mounting makes for a very easy and quick installation. A manual override is standard on all models. Supply voltage: 24 Vac +/- 10%. Force: 1500 N, IP 54 Protection class. EMC 2014/30/EU, LVD 2014/35/EU. Conduit connection 2 x M20 screwed. EMC 2014/30/EU, LVD 2014/35/EU. Conduit connection 2 x M20 screwed.

Voltimum+ Loyalty Programme Loyalty points: 169

Price: £ 1,011.00 Excl. VAT

Specifications

Depth 312 mm
Model Linear
Width 225 mm
Height 228 mm
Torque -
End contacts None
Transmission -
Stroke length 52 mm
Operating time 27 s
Adjusting force 1500 N
Housing material Aluminium
Auxiliary contacts yes
Ambient temperature
Max. angle of rotation -
Communications protocol -
Deactivated when closed yes
Connection to stop valve Other
Max. electric power input 15 VA
Adjustable operating range yes
Regulation type modulating yes
Suitable for air accessory no
Auxiliary contacts optional no
Automatic stroke recognition no
Potential free switch contact no
Suitable for manual operation no
With mechanical setting indicator no
Principle of operation safety function -

Documents

Declaration of Conformity (Sustainability)

8800462000 REACh Regulation

Open

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

8800462000 EU RoHS Directive

Open

Environmental Disclosure

Forta electro mechanical actuator M800 for globe valve

Open

Circularity Profile

Forta electro mechanical actuator M800 for globe valve

Open
