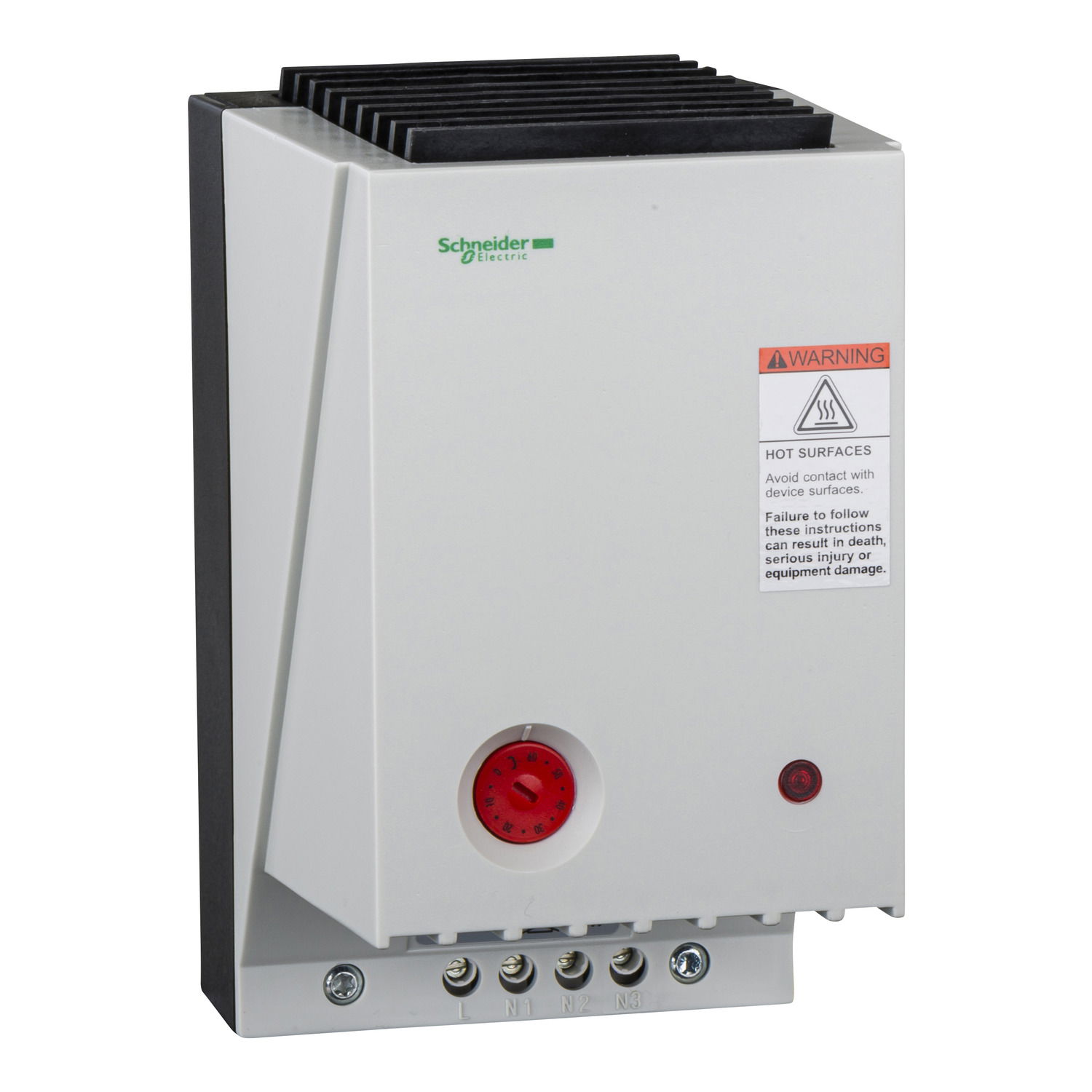

ClimaSys PTC heating resistance 350-550W, 230V insulate thermoventilator

Link copied
SKU
EAN
GTIN
MPN

ClimaSys PTC heating resistance 350-550W, 230V insulate thermoventilator by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £252.24 to £254.76 excl. VAT. Voltimum+ members earn 31 points per unit.

ClimaSys PTC heating resistance insulate thermoventilator. 350-550W, 230V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 2 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Fixing mode by clips. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.

Voltimum+ Loyalty Programme Loyalty points: 31

Price range: £ 252.24 - £ 254.76 Excl. VAT

Specifications

Depth 215 mm
Width 155 mm
Height 150 mm
With fan yes
Rated power 500 W
Voltage type AC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller yes

Documents

Declaration of Conformity (Sustainability)

NSYCRP1W230VTVC REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSULATED HEATERS INSTRUCTIONS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYCRP1W230VTVC EU RoHS Directive

Open

Environmental Disclosure

ClimaSys Resistance heater

Open

CAD

Open
