REVERSING CONTACTOR 575VAC 18A IEC
1 / 2
REVERSING CONTACTOR 575VAC 18A IEC
REVERSING CONTACTOR 575VAC 18A IEC by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £300.29 to £303.29 excl. VAT. Voltimum+ members earn 39 points per unit.

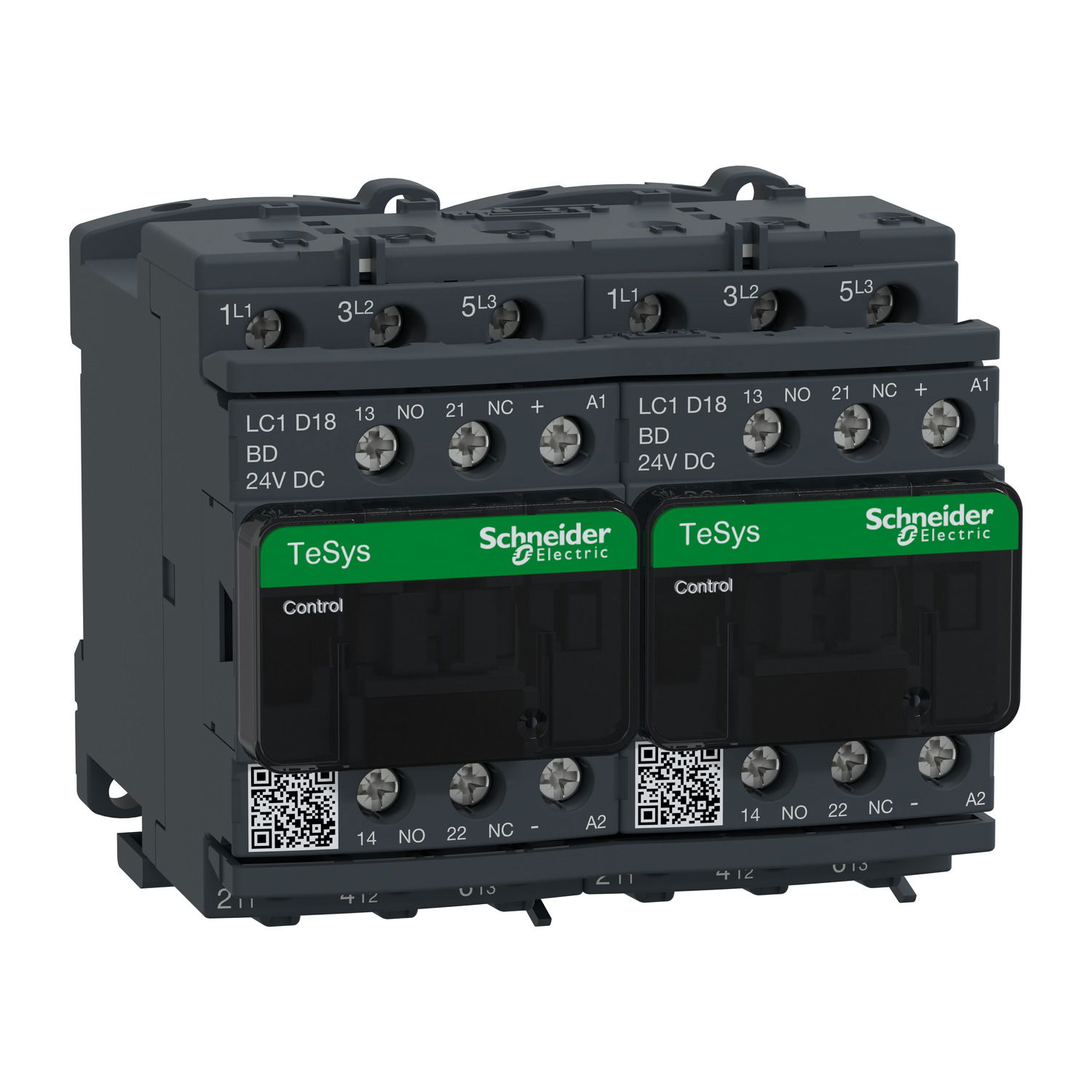

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 18A/440V AC-3/3e (7.5kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC2D18BD
EAN: 3389110392425
GTIN: 3389110392425
MPN: LC2D18BD
Loyalty points:
39
Price range: £ 300.29 - £ 303.29 Excl. VAT
ETIM group
Specifications
| Depth | 95 mm |
| Width | 90 mm |
| Height | 77 mm |
| Function | Reversing contactor |
| Operating voltage DC | |
| Degree of protection (IP) | IP20 |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz |
