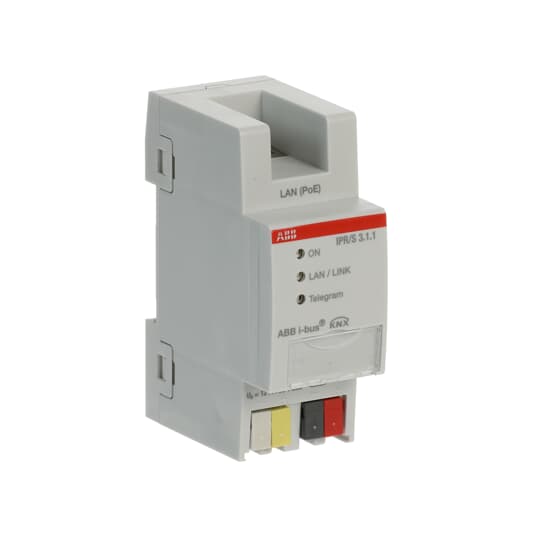

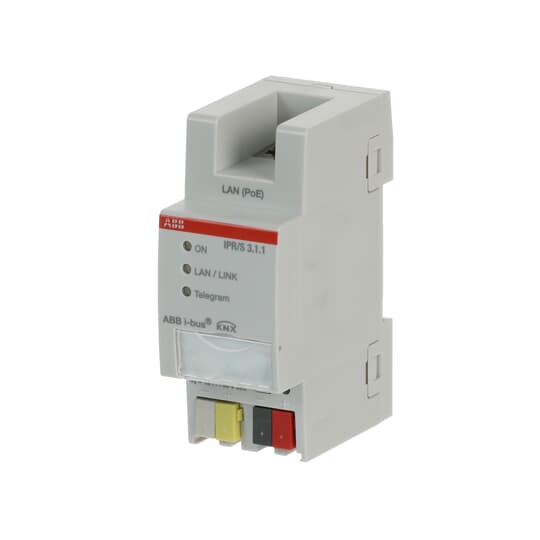

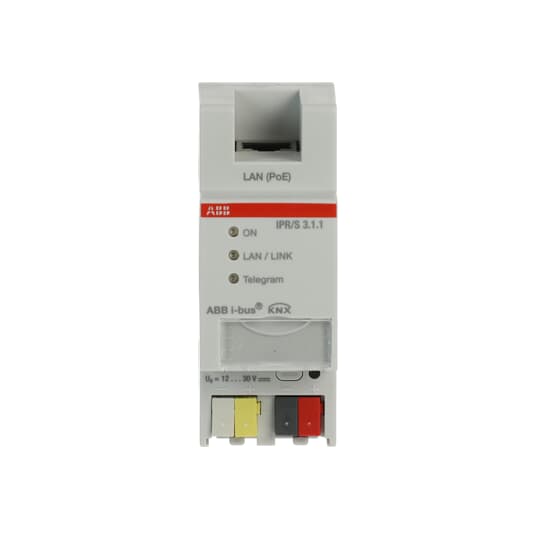

IPR/S3.1.1 IP Router, MDRC

Link copied
SKU
EAN
GTIN
MPN

IPR/S3.1.1 IP Router, MDRC by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £474.35 to £620.57 excl. VAT. Voltimum+ members earn 276 points per unit.

Connects the KNX bus with the Ethernet network. The device uses the KNXnet/IP protocol for communication (Routing and Tunneling). It can be used as a fast line and area coupler. The full filter table for main groups 0-31 is supported. KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Tunneling Servers are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12…30 V DC or PoE (IEEE 802.3af class 1). The KNX Standard Communication (Multicast) can be switched off. In this case, up to 10 IPR/S 3.1.1 can communicate using unicast communication

Voltimum+ Loyalty Programme Loyalty points: 276

Price range: £ 474.35 - £ 620.57 Excl. VAT

Specifications

Model Ethernet
Colour Other
Material -
Transparent no
Bus system KNX yes
Bus system LON no
Mounting method DRA (DIN-rail adapter)
With label area yes
Other bus systems None
Surface protection -
With LED indication yes
RAL-number (similar) 7035
Bus system radio frequency no
Radio frequency bidirectional no
Width in number of modular spacings 2

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

2_TE_MB_XX_V1-0_2CDC072025F0017_Rev_A.pdf

Open

Instructions for use

IPRS_311_MBA_XX_V1-0_2CDG941170P0001.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

IPRS_311_CE_xx_V1-3_2CDK502089D2701_4.pdf

Open
