Set of 2 standard vertical rails for fixing of chassis and cross rails - 2200 mm by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Voltimum+ members earn 7 points per unit.

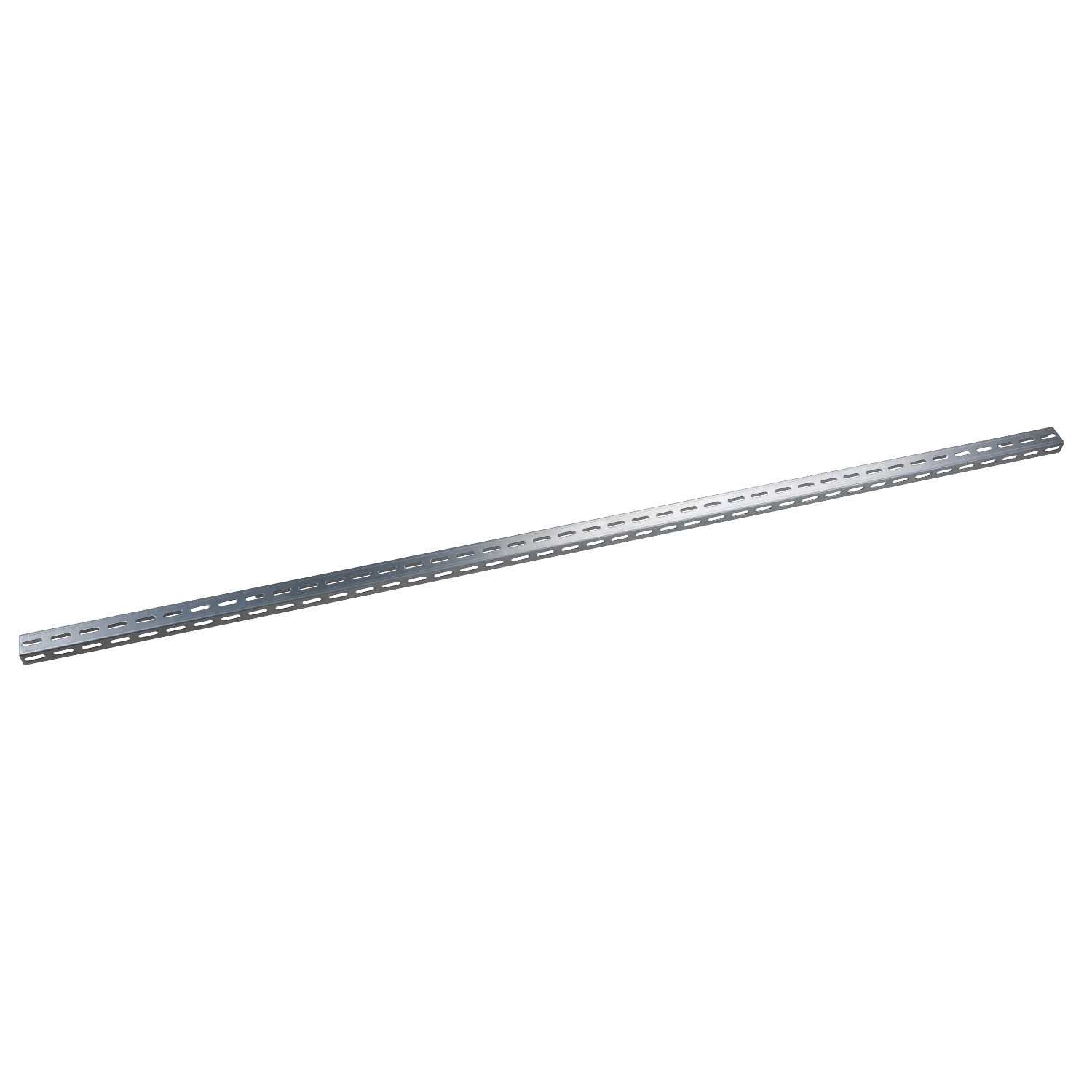

This is a galvanized steel standard upright for PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures. The height, width and depth are 2200mm, 50mm and 30mm respectively. The real height is 2096mm. The thickness is 2mm. The uprights are used for mounting chassis and fixing wiring accessories. Mounting is adjustable in height every 25mm and adjustable in height every 50mm. It is a set of 2 uprights.

Voltimum+ Loyalty Programme Loyalty points: 7

Price: £ 39.00 Excl. VAT

Specifications

Depth 30 mm
Model Mounting rail
Width 50 mm
Colour Other
Height 2200 mm
Material Metal
RAL-number -
Max. load capacity -
Suitable for enclosure building width -
