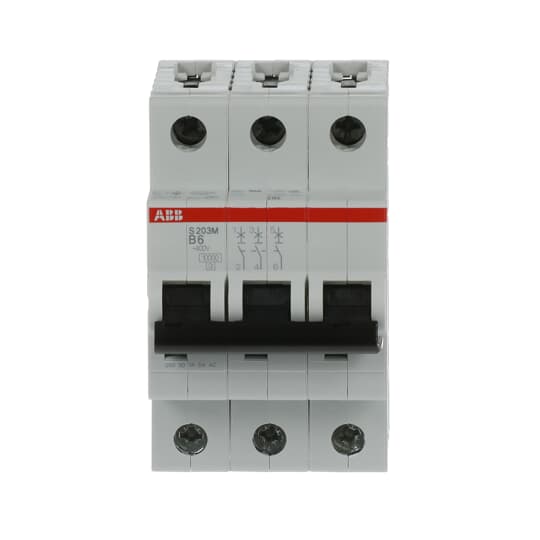

Miniature Circuit Breaker - S200M - 3P - 6 A - B - (AC) 10 kA

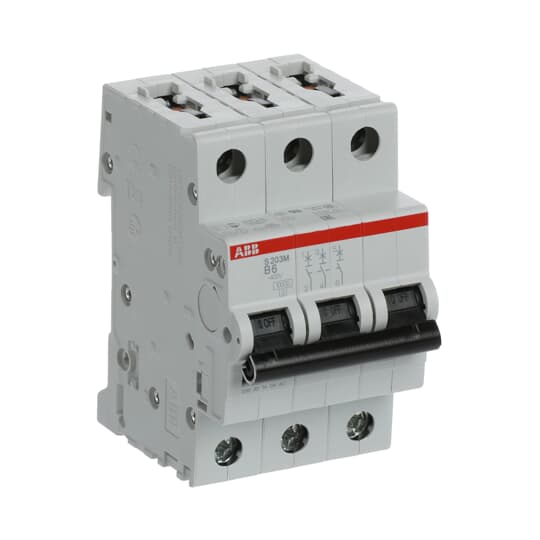

Miniature Circuit Breaker - S200M - 3P - 6 A - B - (AC) 10 kA – Image 2 of 3

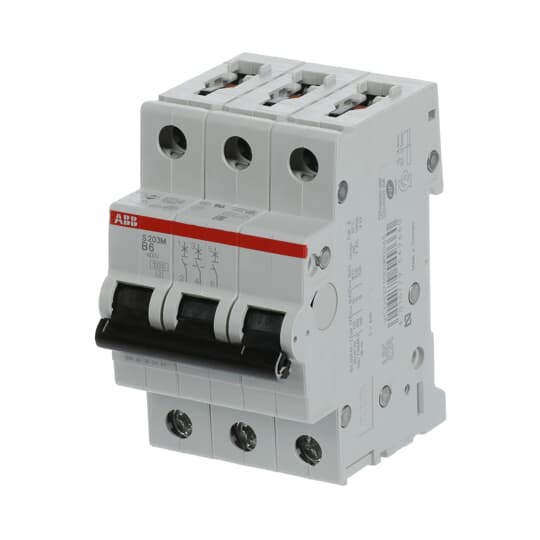

Miniature Circuit Breaker - S200M - 3P - 6 A - B - (AC) 10 kA – Image 3 of 3

1 / 3

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Miniature Circuit Breaker - S200M - 3P - 6 A - B - (AC) 10 kA

Name: Miniature Circuit Breaker - S200M - 3P - 6 A - B - (AC) 10 kA
Brand: ABB
SKU: 2CDS273001R0065
Availability: InStock

Miniature Circuit Breaker - S200M - 3P - 6 A - B - (AC) 10 kA by ABB is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 3 of them. Trade prices range from £83.53 to £105.65 excl. VAT. Voltimum+ members earn 47 points per unit.

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.

Product identifiers

SKU: 2CDS273001R0065

EAN: 4016779549660

GTIN: 4016779549660

MPN: S203M-B6

Loyalty points: 47

Price range: £ 83.53 - £ 105.65 Excl. VAT

Specifications

Frequency
Power loss	6
Voltage type	AC/DC
Rated current	6
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	B
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	3
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
