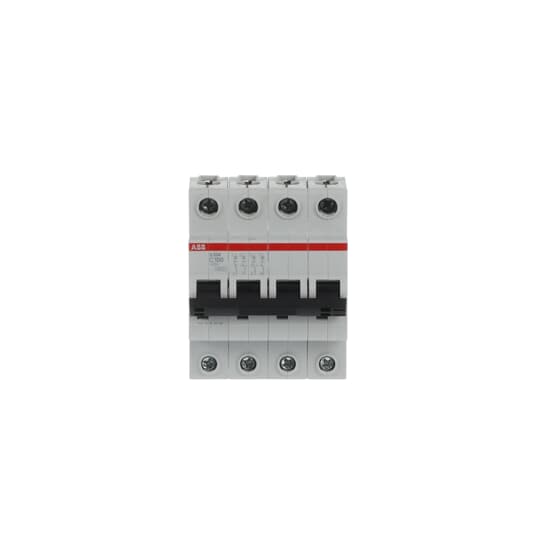

Miniature Circuit Breaker - S200 80-100A - 4P - 100 A - C - (AC) 6 kA

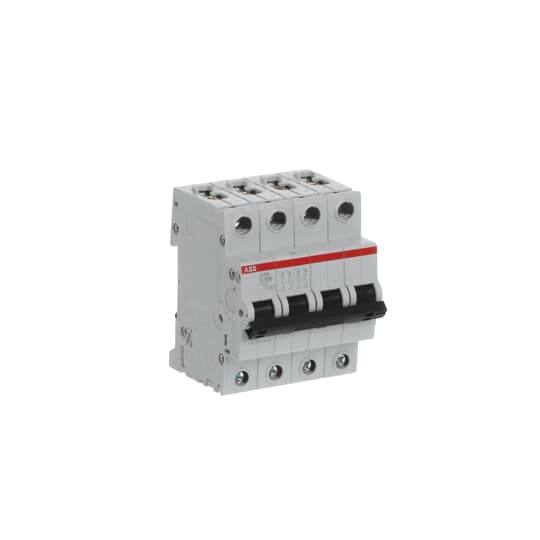

Miniature Circuit Breaker - S200 80-100A - 4P - 100 A - C - (AC) 6 kA – Image 2 of 3

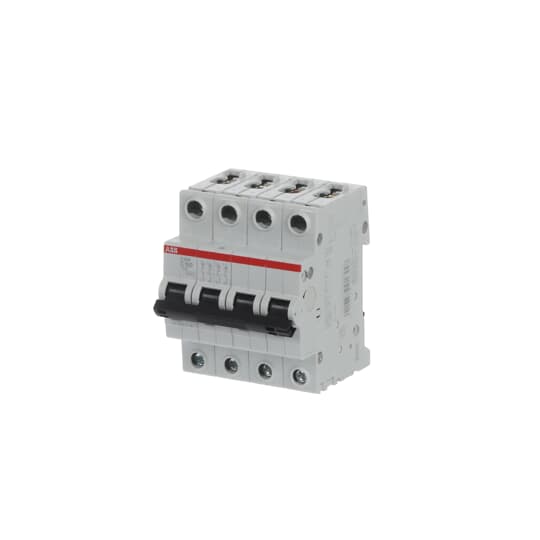

Miniature Circuit Breaker - S200 80-100A - 4P - 100 A - C - (AC) 6 kA – Image 3 of 3

1 / 3

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Miniature Circuit Breaker - S200 80-100A - 4P - 100 A - C - (AC) 6 kA

Name: Miniature Circuit Breaker - S200 80-100A - 4P - 100 A - C - (AC) 6 kA
Brand: ABB
SKU: 2CDS254001R0824
Availability: InStock

Miniature Circuit Breaker - S200 80-100A - 4P - 100 A - C - (AC) 6 kA by ABB is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and TLA. It is currently in stock at all of them. Trade prices range from £176.34 to £233.40 excl. VAT. Voltimum+ members earn 114 points per unit.

S204-C100 Miniature Circuit Breake C-Char., 6kA, 100A, 4P

Product identifiers

SKU: 2CDS254001R0824

EAN: 4016779916448

GTIN: 4016779916448

MPN: S204-C100

Loyalty points: 114

Price range: £ 176.34 - £ 233.40 Excl. VAT

Specifications

Frequency
Power loss	9.8
Voltage type	AC
Rated current	100
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	4
Degree of protection (IP)	IP20
Number of protected poles	4
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	4
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
