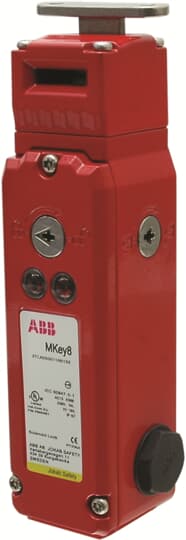

MKey8 24VDC Safety Sensors, Switches and Locks

Link copied
SKU
EAN
GTIN
MPN
Safety interlock switch, die cast housing and head, 3xM20 conduits entries, +24VDC power to unlock. Delivered with standard key. MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.

Voltimum+ Loyalty Programme Loyalty points: 194

Price: £ 391.64 Excl. VAT

Specifications

Width sensor 46
Coating housing Powder coating
Height of sensor 176
Housing material Metal
Length of sensor 47
Type of interface Other
Guard locking force 3000
With escape release no
With auxiliary release yes
Construction type housing Special construction
Type of switching contact Other
Type of electric connection Other
Explosion safety category for gas -
Number of safety auxiliary contacts -
Number of contacts as change-over contact -
Rated operation current Ie at DC-13, 24 V 0.2
Rated operation current Ie at AC-15, 230 V 3
Rated operation current Ie at DC-13, 230 V -
Number of contacts as normally open contact 4
Number of contacts as normally closed contact 2
Rated control supply voltage magnet drive AC 60 Hz

Documents

Deeplink product page

Open

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

MKey8_Manual_(English)_ABB_rev-B_130312.pdf

Open

Product data sheet

Open

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

Declaration_of_conformity_MKey_(EN)_2022_revC_2TLC172101D0201.pdf

Open
