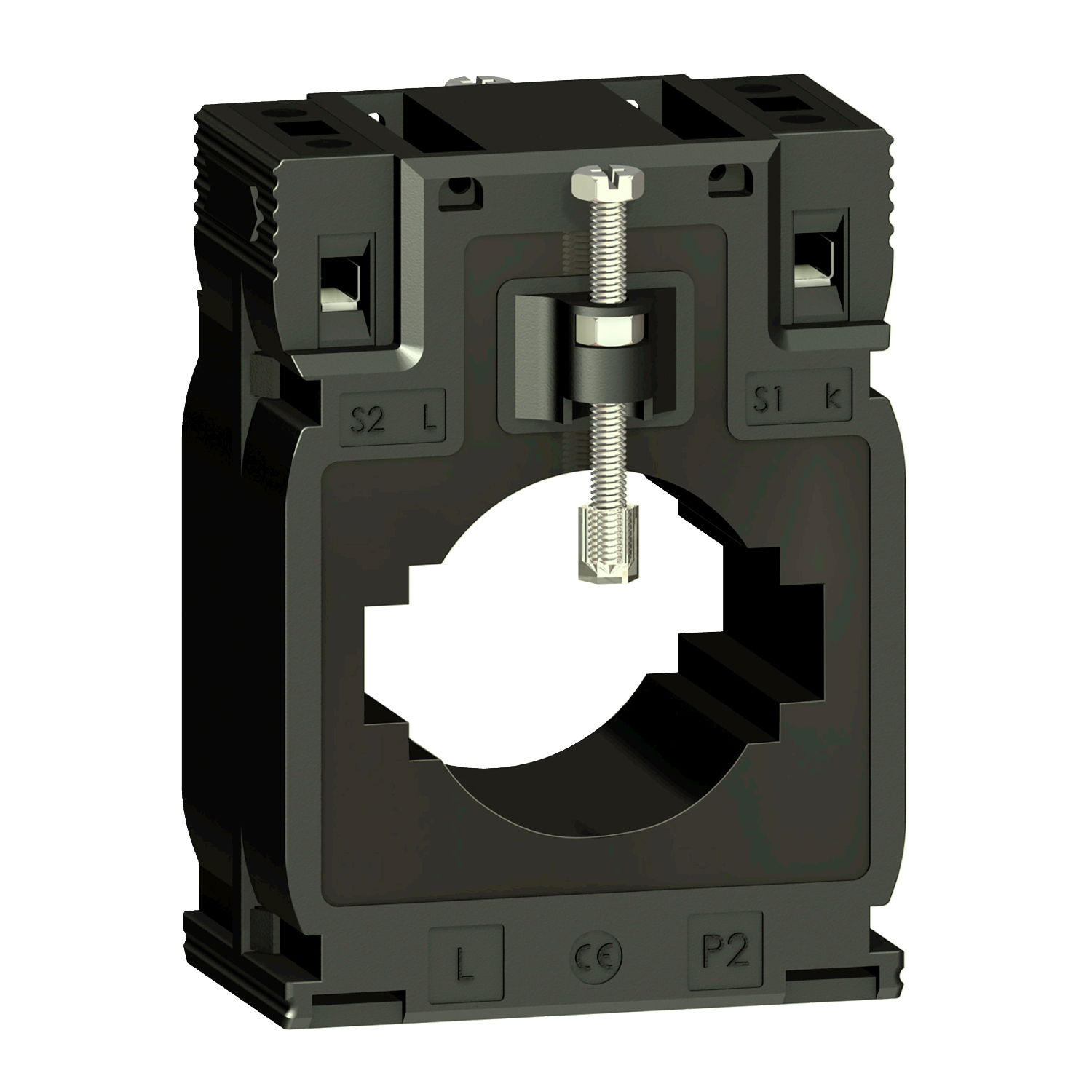

Current transformer tropicalised DIN mount 800 5 cables d. 40 - bars 12x50 20x40

Link copied
SKU
EAN
GTIN
MPN

Current transformer tropicalised DIN mount 800 5 cables d. 40 - bars 12x50 20x40 by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £115.56 excl. VAT. Voltimum+ members earn 13 points per unit.

This current transformer, tropicalised for busbar and cable, has a line rated current of 800 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 40 mm. Compatible with a double output for bar: 50.5 mm x 12.5 mm or 40.5 mm x 20.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 8 VA, class 1 maximum power: 12 VA.

Voltimum+ Loyalty Programme Loyalty points: 13

Price: £ 115.56 Excl. VAT

Specifications

Model Through-feed current converter
Calibrated no
Snap mounting no
Width opening
Accuracy class 1
Height opening
Opening diameter 40 mm
With copper rail no
Secondary connection Screw connection
Rated secondary current 5 A
Number of primary inputs 1
Rated secondary apparent power 12 VA

Documents

Declaration of Conformity (Sustainability)

METSECT5MD080 REACh Regulation

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

User guide

Easergy T300 Technical Guide - LV Standard CT Sensors for LV150

Open

Instruction sheet

IEC Type 5A Solid-core Current Transformer - Instruction Sheet

Open
