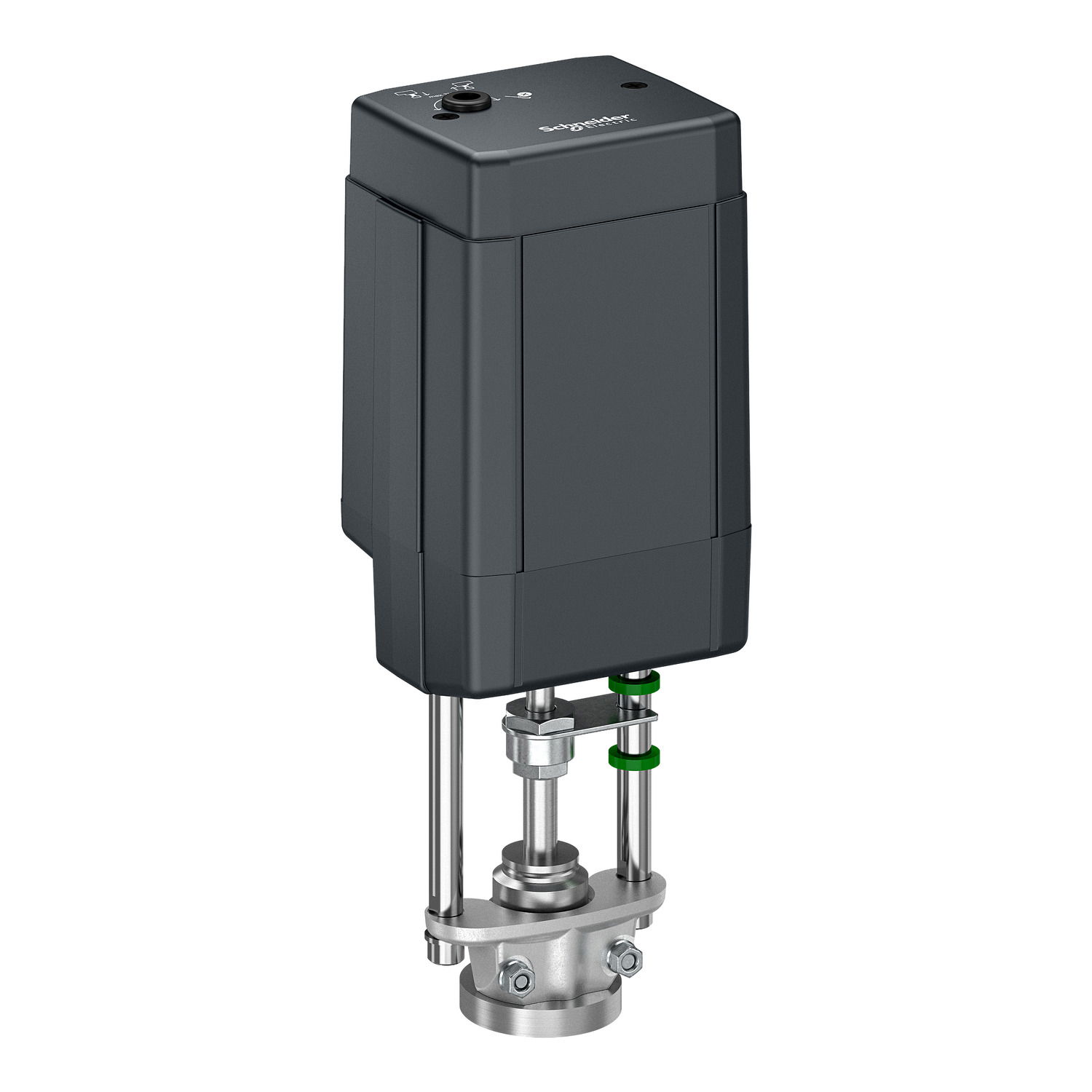

SmartX, Electric Actuator, Proportional, Non-Spring Return, 24 VAC, No leads, 2000 N, Linear, LED, IP54

Link copied
SKU
EAN
GTIN
MPN
The MP2000 is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 24 Vac/Vdc. Force : 2 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.

Voltimum+ Loyalty Programme Loyalty points: 202

Price: £ 1,213.00 Excl. VAT

Specifications

Depth 55 mm
Model Linear
Width 116 mm
Height 375 mm
Torque -
End contacts None
Transmission -
Stroke length 40 mm
Operating time -
Adjusting force 2000 N
Housing material Other
Auxiliary contacts no
Ambient temperature
Max. angle of rotation -
Communications protocol -
Deactivated when closed no
Connection to stop valve Other
Max. electric power input 9 VA
Adjustable operating range no
Regulation type modulating yes
Suitable for air accessory no
Auxiliary contacts optional no
Automatic stroke recognition yes
Potential free switch contact no
Suitable for manual operation no
With mechanical setting indicator yes
Principle of operation safety function Other
