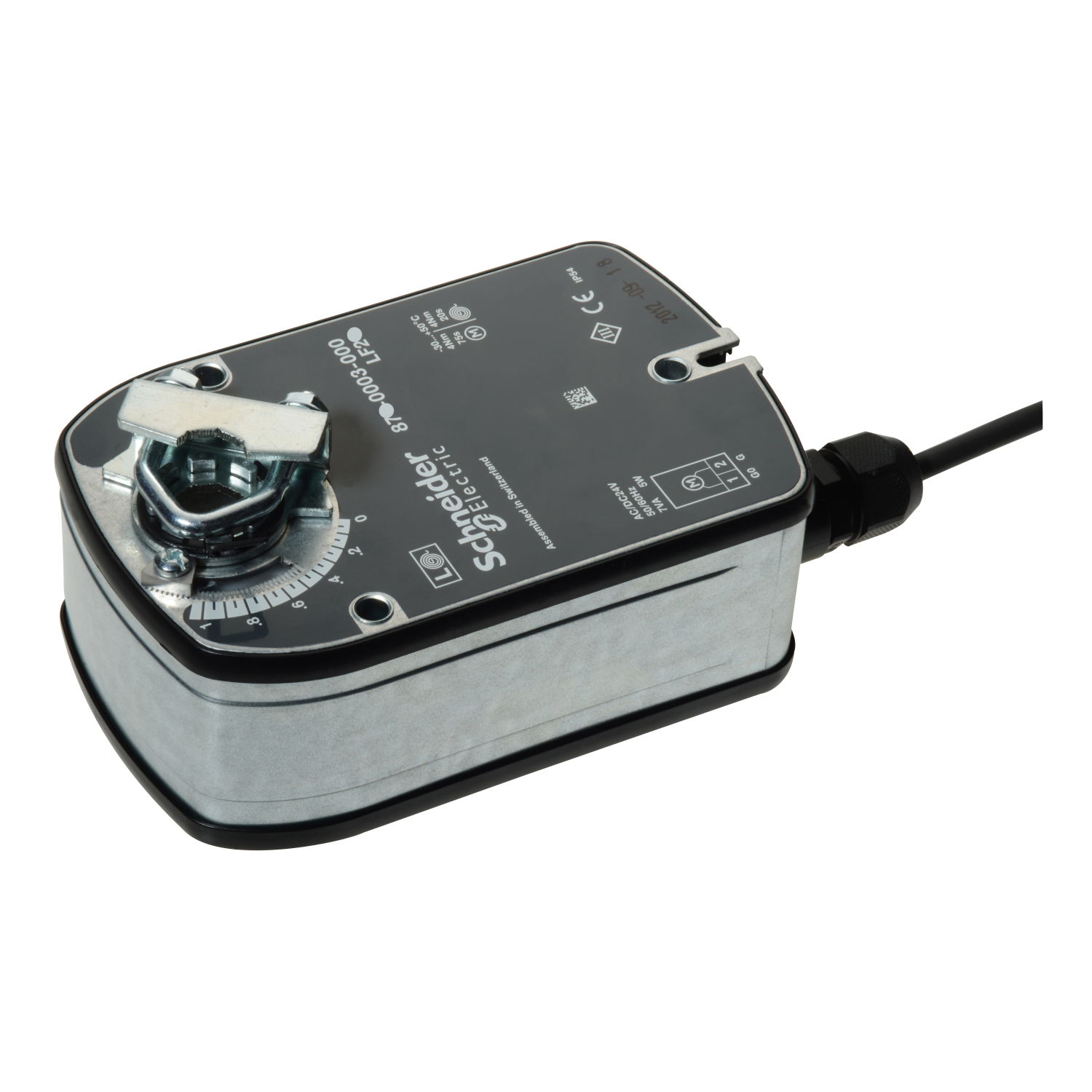

Act: Elec, Mod, 2-20 VDC, SR, 24 VAC/VDC, 1m Leads, 4 Nm, IP54

Link copied
SKU
EAN
GTIN
MPN
The LF actuator is a compact, low-torque, spring return damper actuator suitable for controlling air dampers up to .8 m² cross sectional area. The LF24-SR is for …1 V modulating with 2…1 V position feedback. The actuator is maintenance free, with mechanical position indication. Supply voltage: 24 Vac +/- 2%. …1 V modulating control signal. Torque: 4 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable 37…1% with additional limit stop ZDB-LF. Connection cable 2 x .75 mm² (AWG 18).

Voltimum+ Loyalty Programme Loyalty points: 65

Price: £ 391.00 Excl. VAT

Specifications

Depth -
Model Rotating
Width 127 mm
Height 109 mm
Torque 4 Nm
End contacts None
Transmission -
Stroke length -
Operating time 75 s
Adjusting force -
Housing material Other
Auxiliary contacts no
Ambient temperature
Max. angle of rotation 95 °
Communications protocol -
Deactivated when closed no
Connection to stop valve None
Max. electric power input 5 VA
Adjustable operating range no
Regulation type modulating yes
Suitable for air accessory yes
Auxiliary contacts optional no
Automatic stroke recognition no
Potential free switch contact no
Suitable for manual operation yes
With mechanical setting indicator yes
Principle of operation safety function Other
