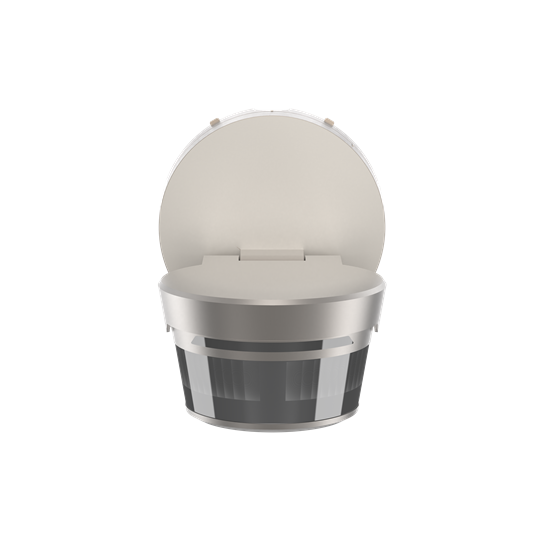

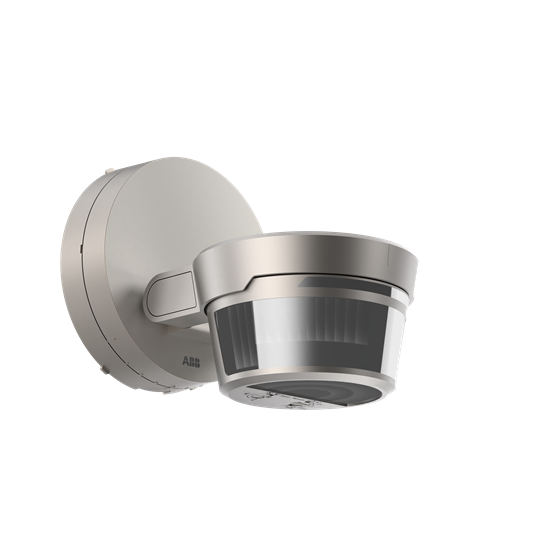

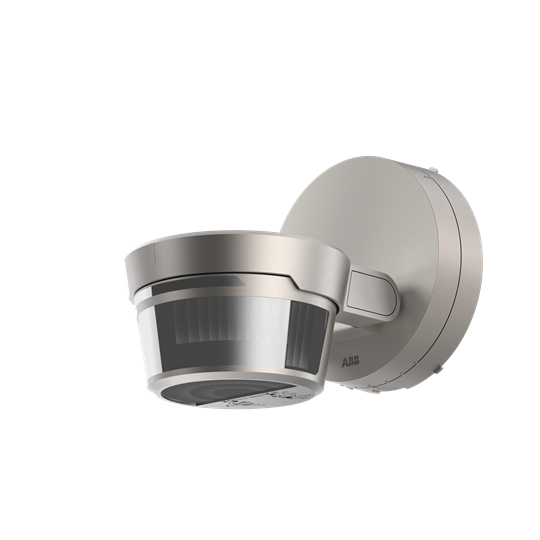

Busch-Watchdog PRO 8 ... 220 ° Motion detector stainless steel

Wireless movement detector for detecting thermal motion. With integrated switch actuator. With high-quality lens for optimum detection. Level balancing of the device +/- 30° With ground and rear-field detection. Additional possibility for switch-on via normally open push-button switch. Potentiometer for the adjustment of standard parameters: Switch-on brightness, Switch-off delay, Testmode and short-term impulse. Optional: ABB-free@home® next app for commissioning of basic and add-on parameters. Remote operation via the Bluetooth and smartphone/tablet app with integrated dismounting protection. Individual adjustment of detection range via enclosed protective foil which can be cut to size. With brightness-independent test mode for evaluating the detection zone. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec. adjustable. Adjustment of standard parameters via app: Switch-on brightness, Switch-off delay, Testmode and short-term impulse. Adjustment of add-on parameters via app: Detection sensitivity, PIR switch-off, takeover of the measured brightness level, permanent on, permanent off. Reduction of the detection range by PIR switch-off via app. Switch-off delay also programmable via app. With optical indicator for detection and operation mode. With automatic range stabilization. With automatic interference suppression. With automatic dazzle-proofing. Surveillance density: 84 sectors with 336 switching segments. Brightness limiting values: lux range 0.5–1000 or daytime mode Number of PIR: 2
