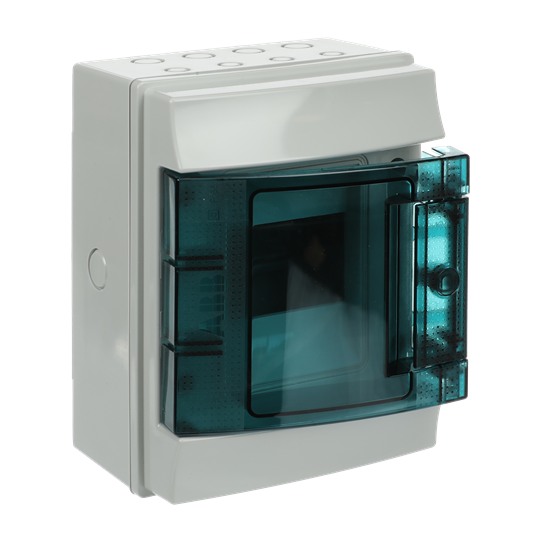

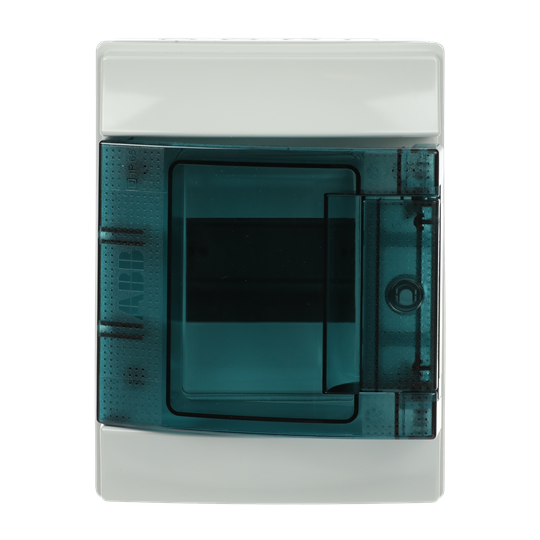

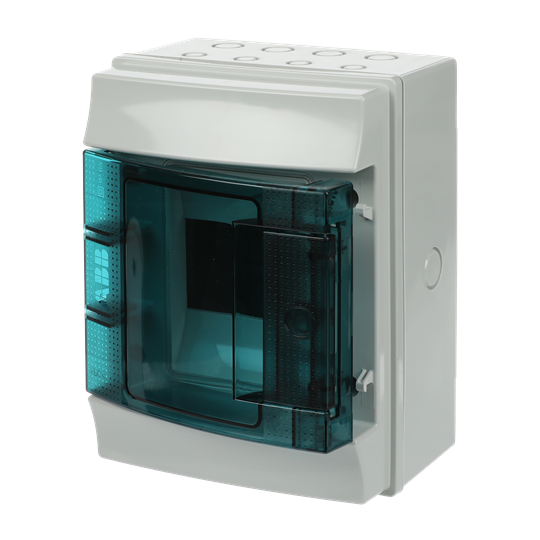

Consumer unit MISTRAL65H, Surface mounting, 4 modules, 1 row(s), IP65, Door: Single, Plastic, Transparent, Dimensions: 202 mm x 152 mm x 117 mm

Link copied
SKU
EAN
GTIN
MPN

Consumer unit MISTRAL65H, Surface mounting, 4 modules, 1 row(s), IP65, Door: Single, Plastic, Transparent, Dimensions: 202 mm x 152 mm x 117 mm by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £32.30 excl. VAT. Voltimum+ members earn 5 points per unit.

MISTRAL65H transparent door 4M;MISTRAL65H CONSUMER UNIT transparent door 4M

Voltimum+ Loyalty Programme Loyalty points: 5

Price: £ 32.30 Excl. VAT

Specifications

Depth 117
Width 152
Colour Grey
Height 202
DIN-rail yes
With lock no
RAL-number 7035
Cover model Closed
Inner depth 56
UV resistant yes
Built-in width 94
Built-in height 192
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block no
Earthing terminal block no
Width in number of modular spacings 4

Documents

Deeplink product page

Open

Deeplink REACH

ReachDeclaration_Enclosures_290424.pdf

Open

Instructions for use

M65_M65H.pdf

Open

Product data sheet

Open

3D / BIM object

MISTRAL65, 65H 1-4 Rows and Switchboard, wall mounting.zip

Open

Declaration RoHS

9AKKMISTRAL65H.pdf

Open
