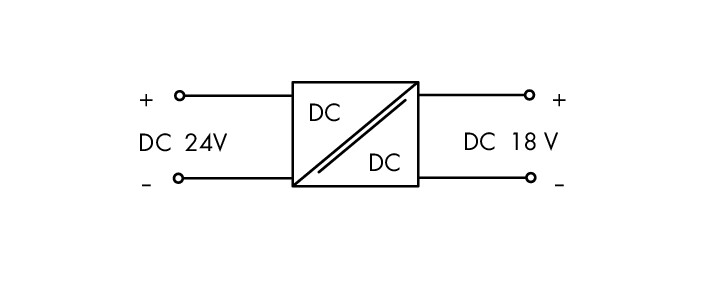

DC/DC Converter 24 VDC input voltage 18 VDC output voltage

DC/DC Converter 24 VDC input voltage 18 VDC output voltage

DC/DC Converter; 24 VDC input voltage; 18 VDC output voltage; 0.4 A output current; galvanically isolated; 2,50 mm²

Product identifiers

SKU: 288-895
EAN: 4066966152609
GTIN: 4066966152609
MPN: 288-895

Voltimum+ Loyalty Programme Loyalty points: 5

Price: £ 250.16 Excl. VAT

Specifications

Depth 85
Width 50
Height 85
Stabilized yes
Power output -
Built-in width -
Built-in height -
Modular version no
Short-circuit-proof yes
Max. output current 2 -
Rated supply voltage DC 19 - 36
Degree of protection (IP) IP20
SIL according to IEC 61508 -
Suitable for wall mounting no
Type of electric connection Spring clamp connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) DC
Nominal value output current 2 -
Nominal value output voltage 1 18
Nominal value output voltage 3 -
Performance level according to EN ISO 13849-1 -
