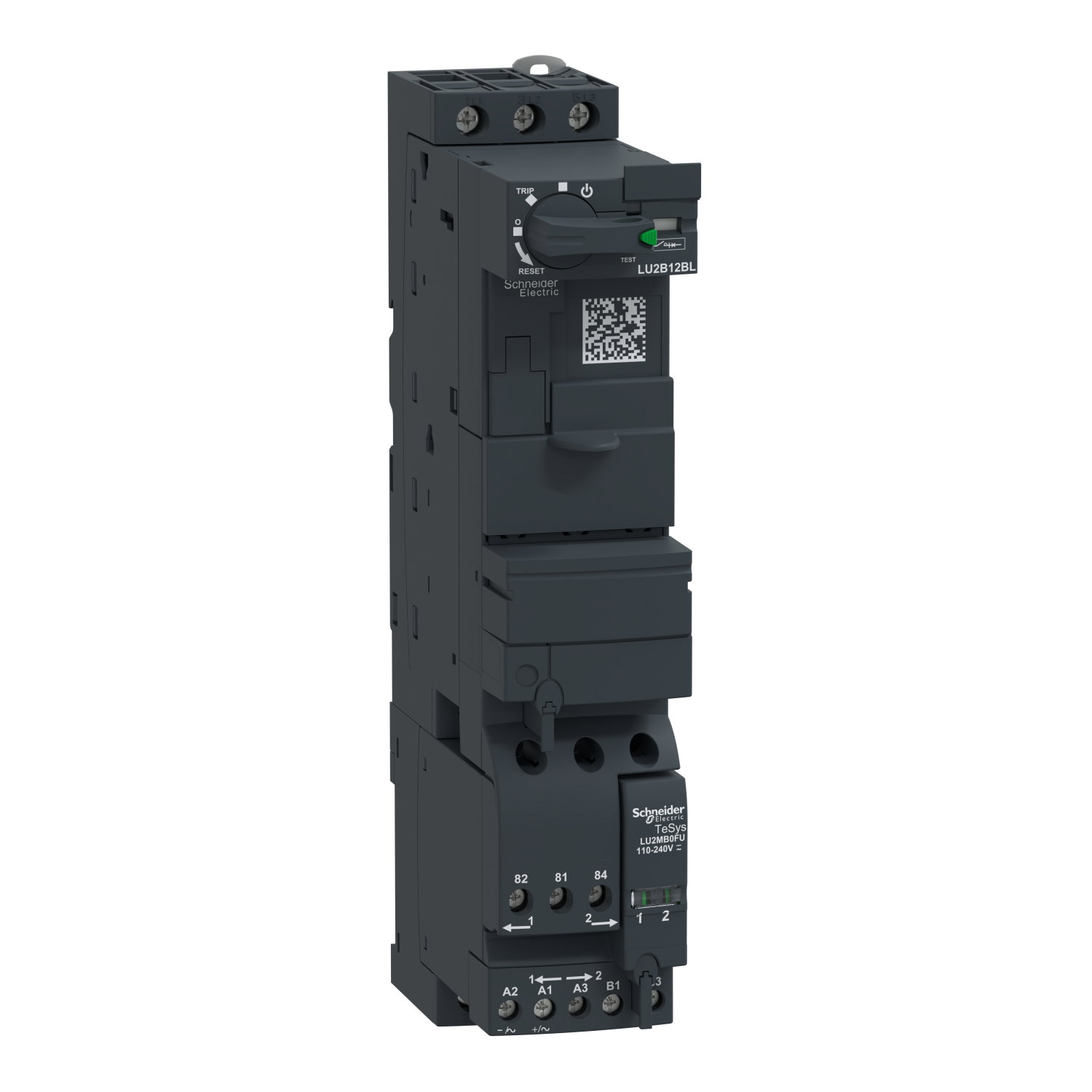

Reversing power base, TeSys U, 3P, 12A/690V, coil 24V DC

Reversing power base, TeSys U, 3P, 12A/690V, coil 24V DC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £106.99 to £213.21 excl. VAT. Voltimum+ members earn 25 points per unit.

TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine)

Product identifiers

SKU: LU2B12BL
EAN: 3389110362930
GTIN: 3389110362930
MPN: LU2B12BL

Voltimum+ Loyalty Programme Loyalty points: 25

Price range: £ 106.99 - £ 213.21 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 126 mm
Width 45 mm
Height 224 mm
With fuse no
Release class -
With transformer no
Power consumption -
Type of motor starter Reversing starter
Degree of protection (IP) IP20
Rated operation current Ie 12 A
Voltage type for actuating DC
Degree of protection (NEMA) -
Suitable for emergency stop no
Supporting protocol for CAN no
Supporting protocol for Modbus no
Supporting protocol for TCP/IP no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet no
Rated power, 460 V, 60 Hz, 3-phase 5.5 kW
Supporting protocol for EtherNet/IP no
Supporting protocol for SafetyBUS p no
Supporting protocol for Data-Highway no
Rated control supply voltage AC 50 Hz
Rated operation current at AC-3, 400 V 12 A
Supporting protocol for DeviceNet Safety no
Ambient temperature, upper operating limit 70 °C
Temperature compensated overload protection -
Rated operation power at AC-3, 230 V, 3-phase 3 kW
Supporting protocol for AS-Interface Safety at Work no
Rated conditional short-circuit current, type 2, 230 V 50000 A
Number of auxiliary contacts as normally closed contact 1
Rated conditional short-circuit current, type 1, 600 Y/347 V 4000 A
