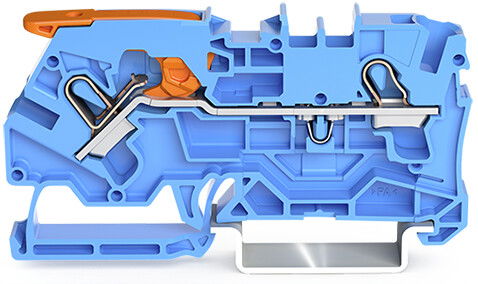

2-conductor through terminal block with lever and Push-in CAGE CLAMP® 4 mm² blue
2-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 4 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; blue
Product identifiers
SKU: 2104-1204
EAN: 4055143992435
GTIN: 4055143992435
MPN: 2104-1204
Price range: £ 1.47 - £ 1.51 Excl. VAT
Categories
Features
|
Depth
|
32.9 mm
|
|
Width
|
6.2 mm
|
|
Colour
|
Blue
|
|
Height
|
70 mm
|
|
Rated voltage
|
800 V
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
32 A
|
|
Operating temperature
|
105 - 105 °C
|
|
Closing plate required
|
yes
|
|
Material insulation body
|
Thermoplastic
|
|
Internally connected stages
|
no
|
|
Explosion-tested version 'Ex e'
|
yes
|
|
Suitable for conductor material
|
-
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
2
|
|
Connectable conductor cross section solid-core
|
1.6 - 1.6 mm²
|
|
Connectable conductor cross section multi-wired
|
0.5 - 4 mm²
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.75 - 2.5 mm²
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.5 - 6 mm²
|
