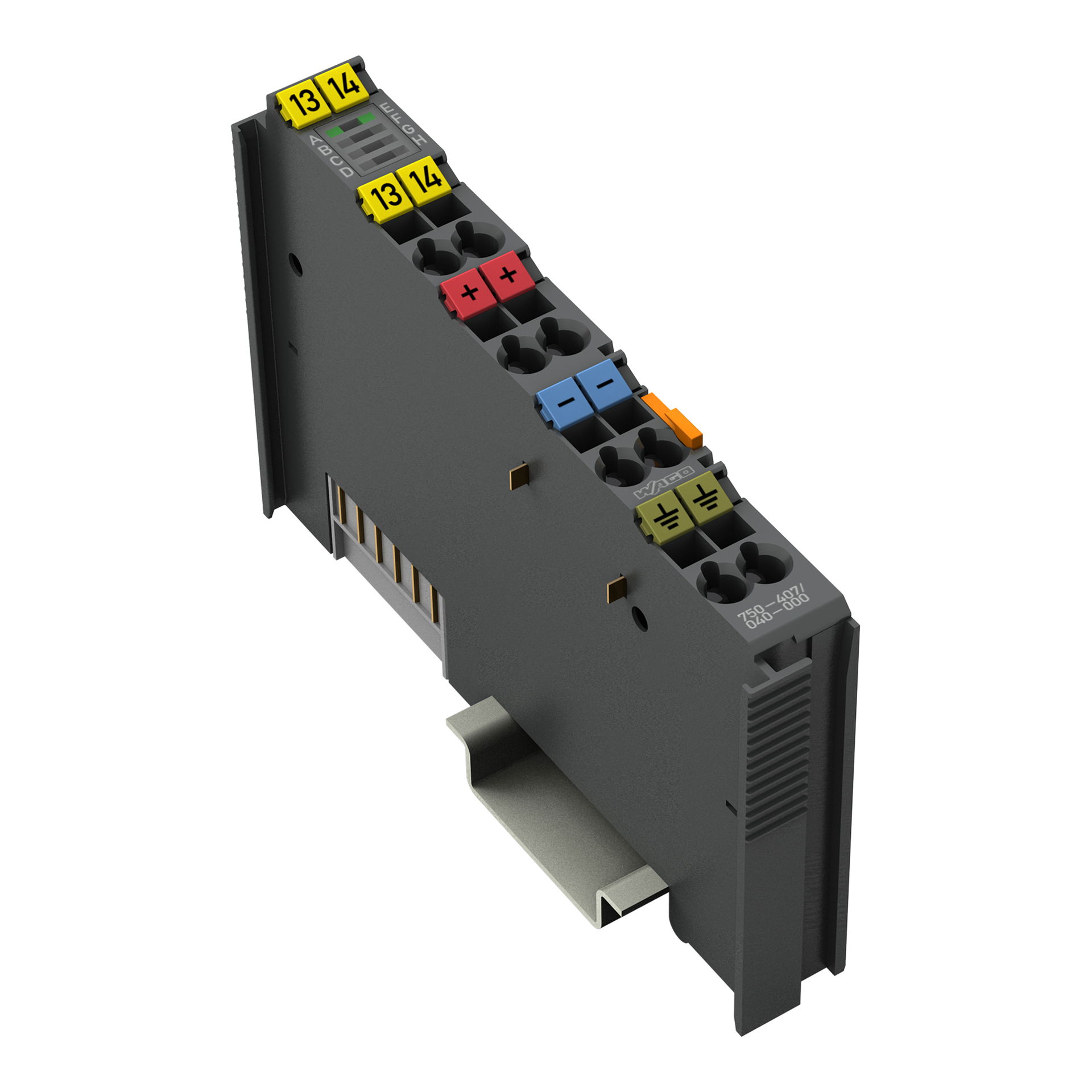

2-channel digital input 220 VDC 3 ms dark gray
Wago

2-channel digital input 220 VDC 3 ms dark gray

2-channel digital input; 220 VDC; 3 ms; Extreme

Product identifiers

SKU: 750-407/040-000
EAN: 4050821481911
GTIN: 4050821481911
MPN: 750-407/040-000

Voltimum+ Loyalty Programme Loyalty points: 2

Price: £ 104.32 Excl. VAT

Categories

PLCs Lighting Control Systems Building Controls & Automation

Specifications

Depth 67.8
Width 12
Height 100
IO link master no
Output current -
System accessory yes
Supply voltage DC 220 - 220
Radio standard GSM no
Radio standard UMTS no
Type of digital output Other
With optical interface no
Supply voltage AC 50 Hz
Number of digital inputs 2
Degree of protection (IP) IP20
Number of digital outputs 0
Radio standard WLAN 802.11 no
Suitable for rail mounting yes
Number of HW-interfaces USB 0
Supporting protocol for ASI no
Supporting protocol for KNX no
Time delay at signal change 3 - 3
Digital outputs configurable no
Number of interfaces PROFINET 0
Voltage type (supply voltage) DC
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces parallel 0
Supporting protocol for EtherCAT no
Supporting protocol for PROFIBUS no
Appendant operation agent (Ex ib) no
Supporting protocol for DeviceNet no
Explosion safety category for dust ATEX dust-ex-protection, Cat. 3D
Supporting protocol for EtherNet/IP no
Supporting protocol for SafetyBUS p no
Supporting protocol for PROFINET CBA no
Supporting protocol for DeviceNet Safety no
Certified for UL hazardous location class I yes
Short-circuit protection, outputs available no
Certified for UL hazardous location class II no
Performance level according to EN ISO 13849-1 None
Certified for UL hazardous location division 2 no
Certified for UL hazardous location group D (propane) yes
Certified for UL hazardous location group C (ethylene) yes
Certified for UL hazardous location group A (acetylene) yes
Certified for UL hazardous location group F (carbonaceous dusts) no
