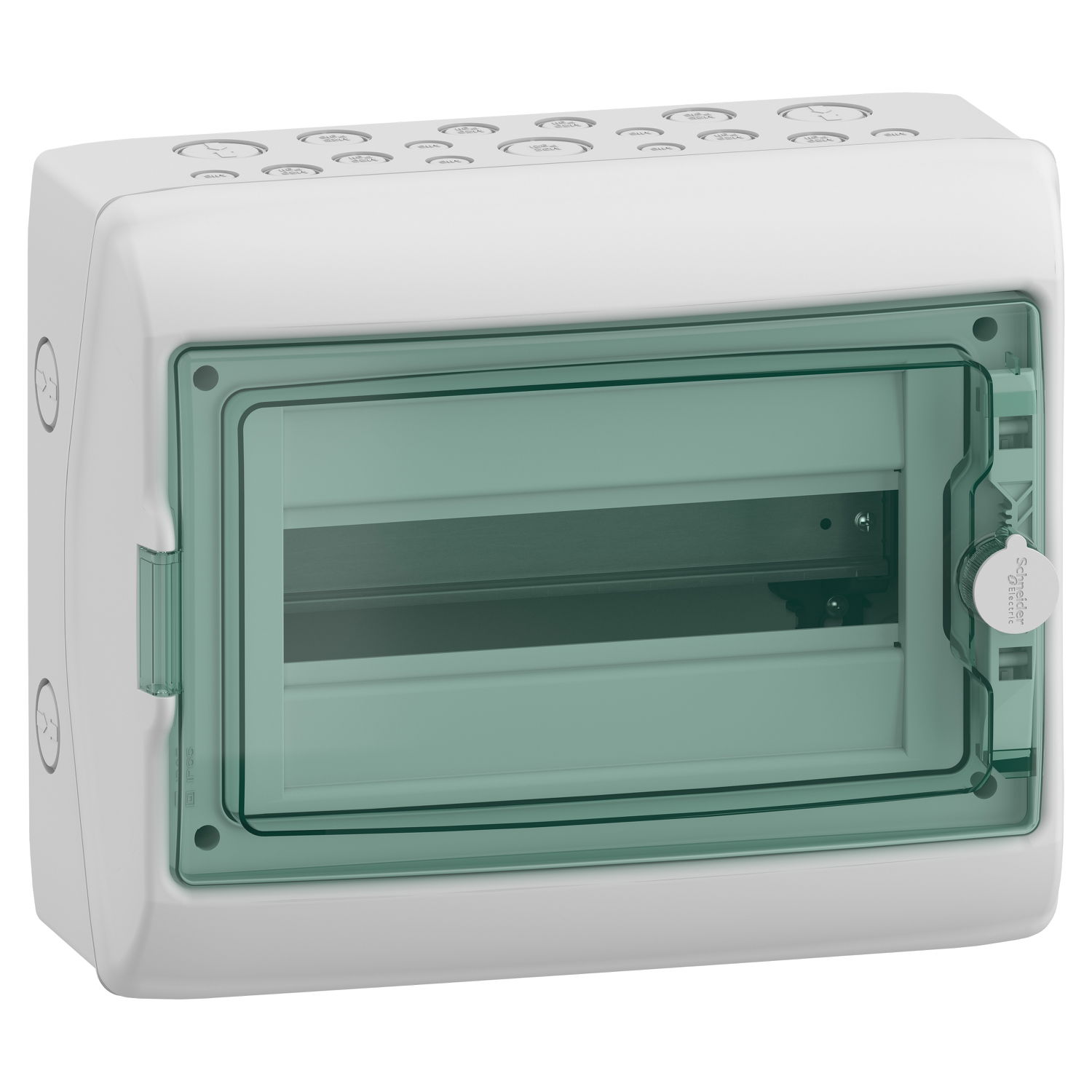

Kaedra - for modular device - 1 x 12 modules - 1+1 terminal blocks

Link copied
SKU
EAN
GTIN
MPN

Kaedra - for modular device - 1 x 12 modules - 1+1 terminal blocks by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 65 points per unit.

This Kaedra weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 4 outgoers and 1 with 8 outgoers for a total of 12 outgoers (6x10mm² + 6x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 24W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 340mm x (H) 280mm x (D) 160mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.

Voltimum+ Loyalty Programme Loyalty points: 65

Price: £ 392.00 Excl. VAT

Specifications

Depth 160 mm
Width 340 mm
Colour Grey
Height 280 mm
DIN-rail yes
With lock no
RAL-number 7035
Cover model Closed
Inner depth 88 mm
UV resistant yes
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door yes
Neutral terminal block no
Earthing terminal block yes
Width in number of modular spacings 12

Documents

Declaration of Conformity (Sustainability)

13981 REACh Regulation

Open

Product data sheet

Open

Catalog

Mureva Enclosures catalog

Open

Declaration of Conformity (Sustainability)

13981 EU RoHS Directive

Open

Declaration of conformity

EU Declaration of Conformity Schneider Electric

Open

Declaration of Conformity (Sustainability)

13981 OECD PFAS Regulation

Open

Declaration of Conformity (Sustainability)

13981 POP Directive

Open

Environmental Disclosure

Mureva - Waterproof Enclosure for Modular Device from 1 to 4 rows with 1 to 18 Modules - Product Environmental Profile

Open
