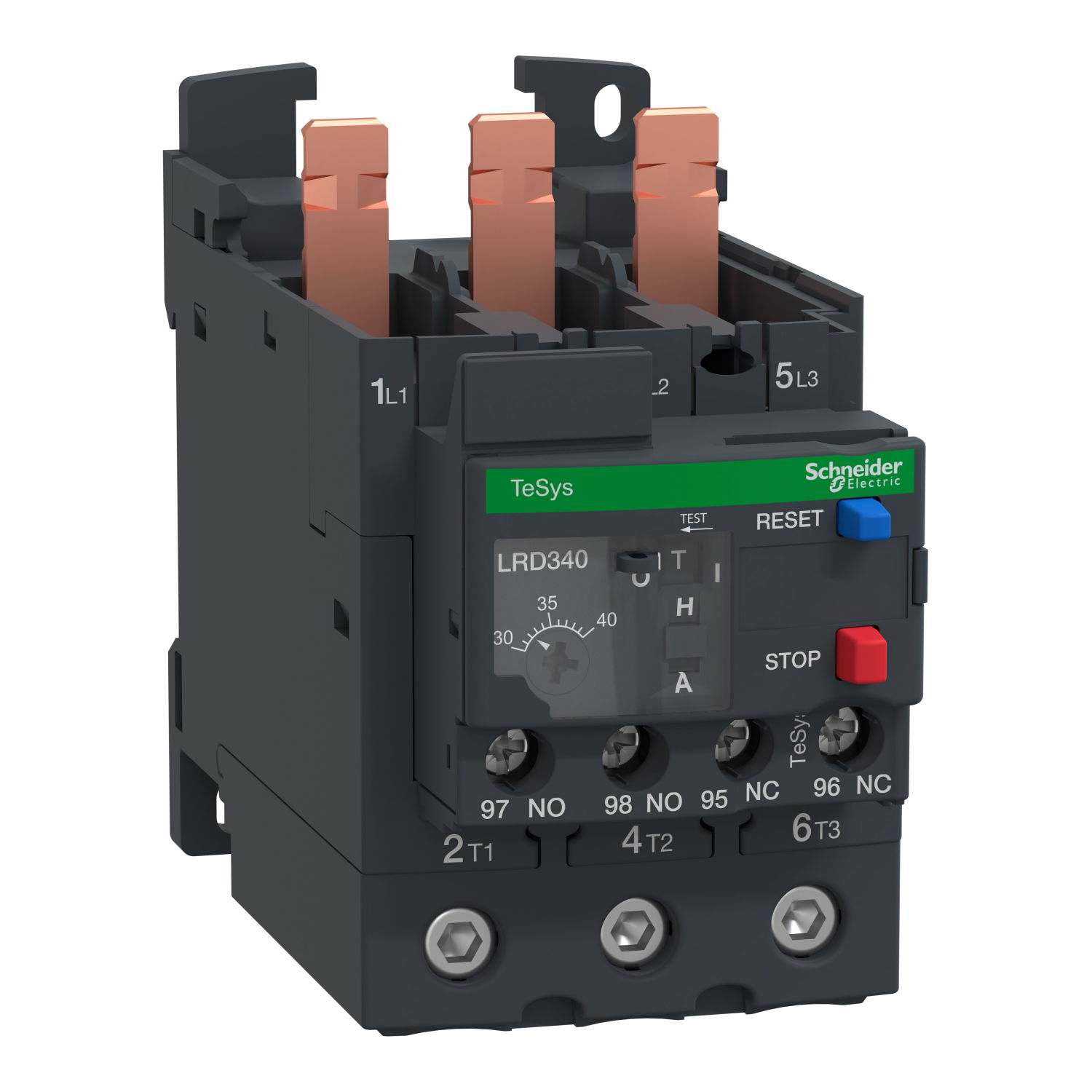

TeSys LRD thermal overload relays - 30...40 A - class 10A

TeSys LRD thermal overload relays - 30...40 A - class 10A by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £68.69 to £110.75 excl. VAT. Voltimum+ members earn 15 points per unit.

TeSys LRD thermal overload relay, 40A/690V, thermal setting range 30-40A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LRD340
EAN: 3389119215497
GTIN: 3389119215497
MPN: LRD340

Voltimum+ Loyalty Programme Loyalty points: 15

Price range: £ 68.69 - £ 110.75 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Low-voltage industrial components

Specifications

Release class CLASS 10 A
Mounting method Direct attachment/single positioning
Reset function input no
Adjustable current range
Reset function automatic yes
Reset function push-button yes
Max. rated operation voltage Ue 690 V
Type of electrical connection of main circuit Screw connection
Number of auxiliary contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

LRD340 REACh Regulation

Open

User guide

TeSys Protect - Deca Overload Relays (9 to 80 A) - Use in Explosive Atmospheres

Open

Instruction sheet

RT3 Instruction Sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

LRD340 EU RoHS Directive

Open

Declaration of conformity

UKCA Declaration TeSysD_LRD3,L3D3

Open

Environmental Disclosure

TeSys Deca thermal overload relays 48-65 A-class 10A

Open
