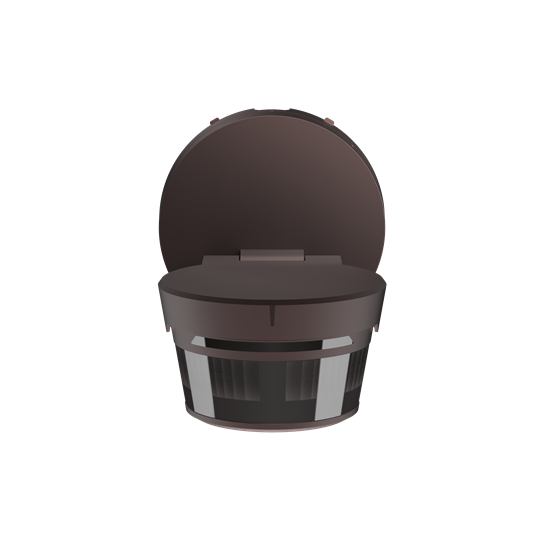

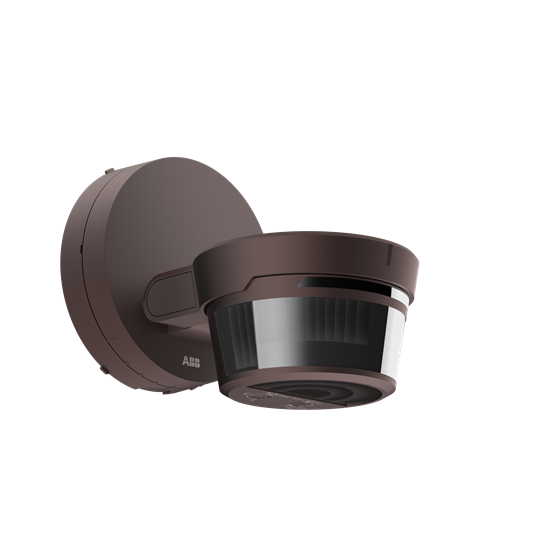

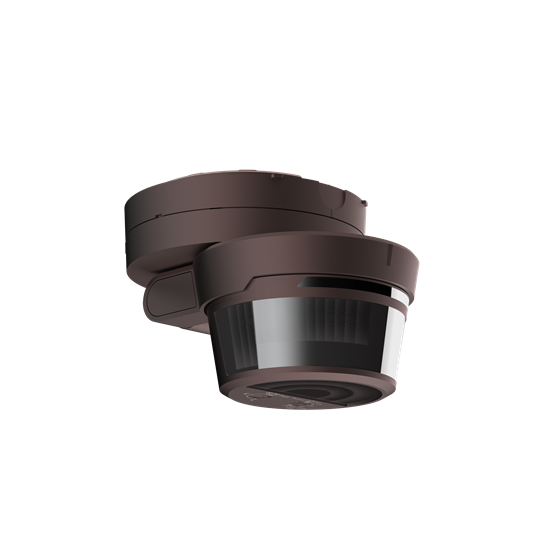

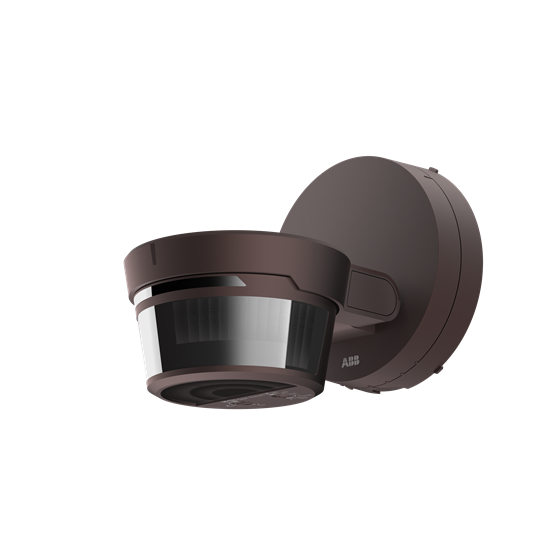

Busch-Watchdog PRO 8 ... 220 ° Motion detector brown

Link copied
SKU
EAN
GTIN
MPN
Wireless movement detector for detecting thermal motion. With integrated switch actuator. With high-quality lens for optimum detection. Level balancing of the device +/- 30° With ground and rear-field detection. Additional possibility for switch-on via normally open push-button switch. Potentiometer for the adjustment of standard parameters: Switch-on brightness, Switch-off delay, Testmode and short-term impulse. Optional: ABB-free@home® next app for commissioning of basic and add-on parameters. Remote operation via the Bluetooth and smartphone/tablet app with integrated dismounting protection. Individual adjustment of detection range via enclosed protective foil which can be cut to size. With brightness-independent test mode for evaluating the detection zone. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec. adjustable. Adjustment of standard parameters via app: Switch-on brightness, Switch-off delay, Testmode and short-term impulse. Adjustment of add-on parameters via app: Detection sensitivity, PIR switch-off, takeover of the measured brightness level, permanent on, permanent off. Reduction of the detection range by PIR switch-off via app. Switch-off delay also programmable via app. With optical indicator for detection and operation mode. With automatic range stabilization. With automatic interference suppression. With automatic dazzle-proofing. Surveillance density: 84 sectors with 336 switching segments. Brightness limiting values: lux range 0.5–1000 or daytime mode Number of PIR: 2

Voltimum+ Loyalty Programme Loyalty points: 17

Price: £ 168.60 Excl. VAT

Specifications

Depth 157.75
Model Movement sensor
Width 110
Colour Brown
Height 124.4
Diameter -
Material Plastic
Frequency
Animal zone no
Sensor type Other
Transparent -
Halogen free no
Built-in depth -
Bridging switch yes
Connection type -
Impact strength -
Mounting method Surface mounted
Forced switch on yes
Remote operation yes
Switch-off delay -
Built-in diameter -
Surface finishing -
Switching-on delay -
Max. reach sideways 16
Suitable for C-load -
With alarm function -
Max. reach frontally 16
RAL-number (similar) 8017
Background monitoring -
Min. starting current -
Constant light control no
Connection cable length -
IFTTT support available no
Anti-bacterial treatment no
Degree of protection (IP) IP55
Response value luminosity
Staircase light controller yes
Compatible with Amazon Alexa no
Suitable for ceiling mounting yes
Compatible with Google Assistant no
Suitable for wireless transmission yes
Response value sensitivity adjustable yes
Min. depth of built-in installation box -

Documents

Deeplink product page

Open

Deeplink REACH

All Articles_REACH_EN_25-1_2CKA309999E9999.pdf

Open

Instructions for use

MBA_6851 22-xxx_ABB_Gesamt.pdf

Open

Product data sheet

Open

3D / BIM object

Security-Devices_ABB_Busch-Wathchdog-Motion-Detector_Ceiling-Mounted.rfa

Open

Declaration DOC CE (Declaration of conformity CE)

6851_22-131-500_CE_XX_V01_2CKA100000E5334.pdf

Open

Declaration EPD (Environmental Product Declaration)

Open
