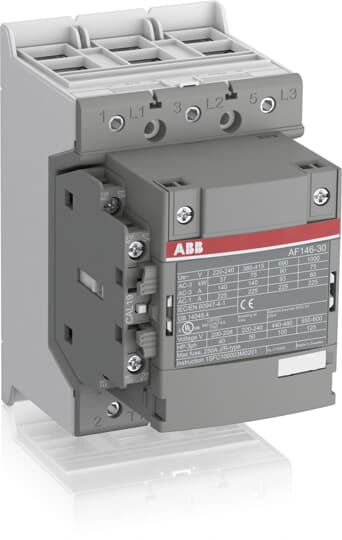

AF146-30-11-11 Contactor

Name: AF146-30-11-11 Contactor
Brand: ABB
SKU: 1SFL467001R1111
Availability: InStock

3x rewards on ABB Contactors at TLA

AF146-30-11-11 Contactor by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia, and currently in stock. Trade price £774.01 excl. VAT. Voltimum+ members earn 405 points per unit.

The AF146-30-11-11 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 225 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Product identifiers

SKU: 1SFL467001R1111

EAN: 7320500482056

GTIN: 7320500482056

MPN: AF146-30-11-11

Loyalty points: 1215

Price: £ 774.01 Excl. VAT

Specifications

Depth	126
Width	90
Height	150
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	14.9140
Voltage type for actuating	AC/DC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	75
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	225
Rated operation current Ie at AC-3, 400 V	146
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
