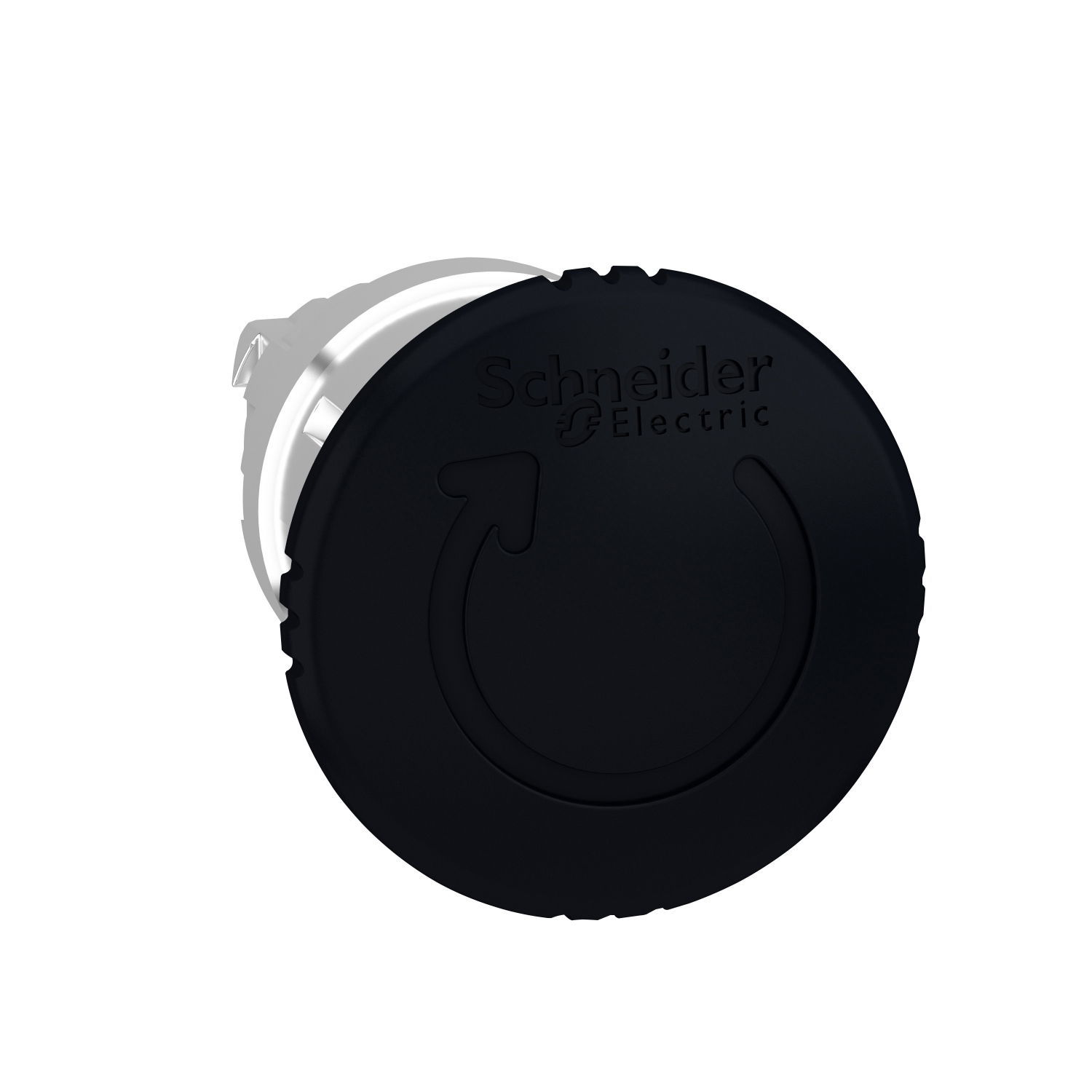

Black Ø40 mushroom pushbutton head Ø22 latching turn release

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 2 of 13

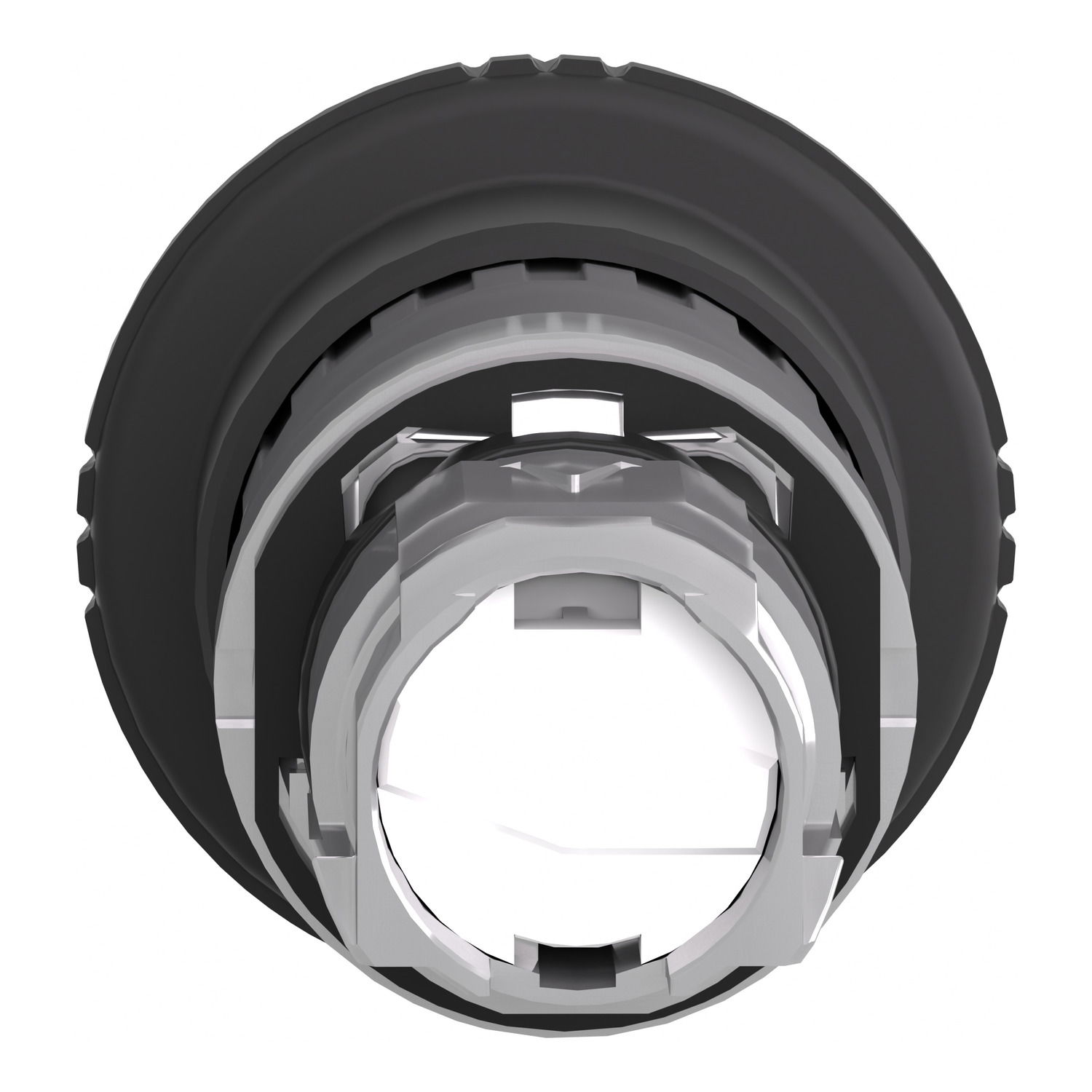

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 3 of 13

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 4 of 13

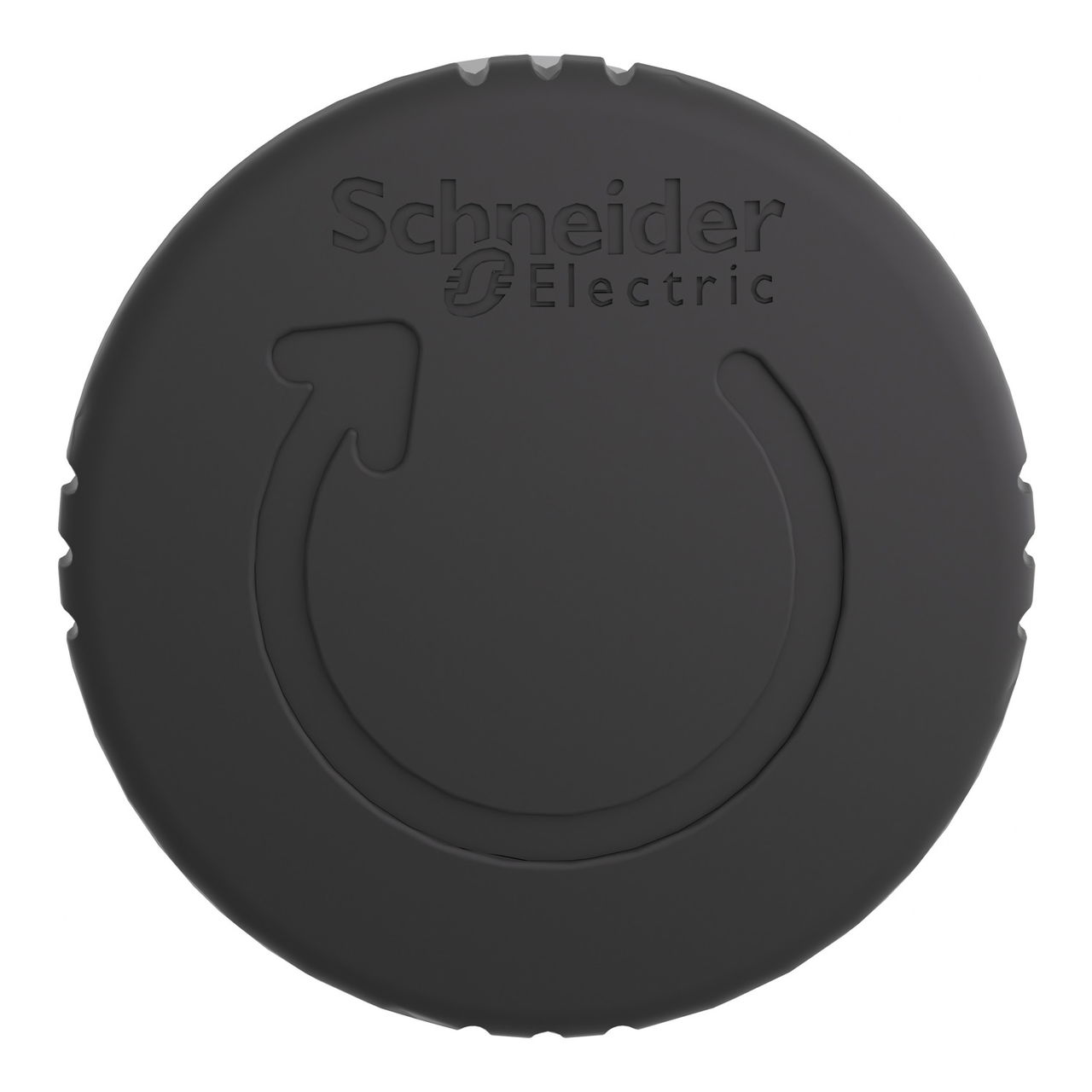

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 5 of 13

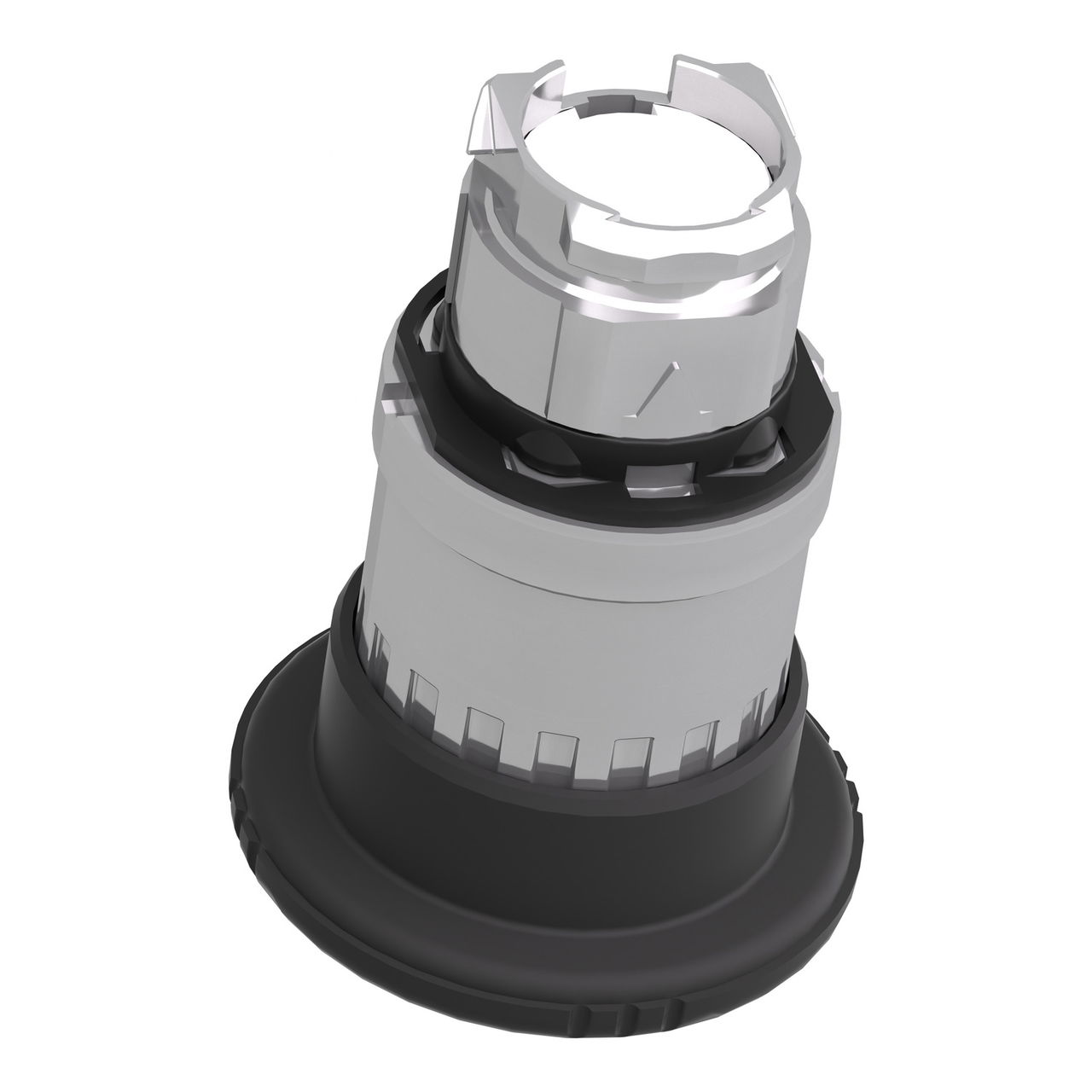

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 6 of 13

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 7 of 13

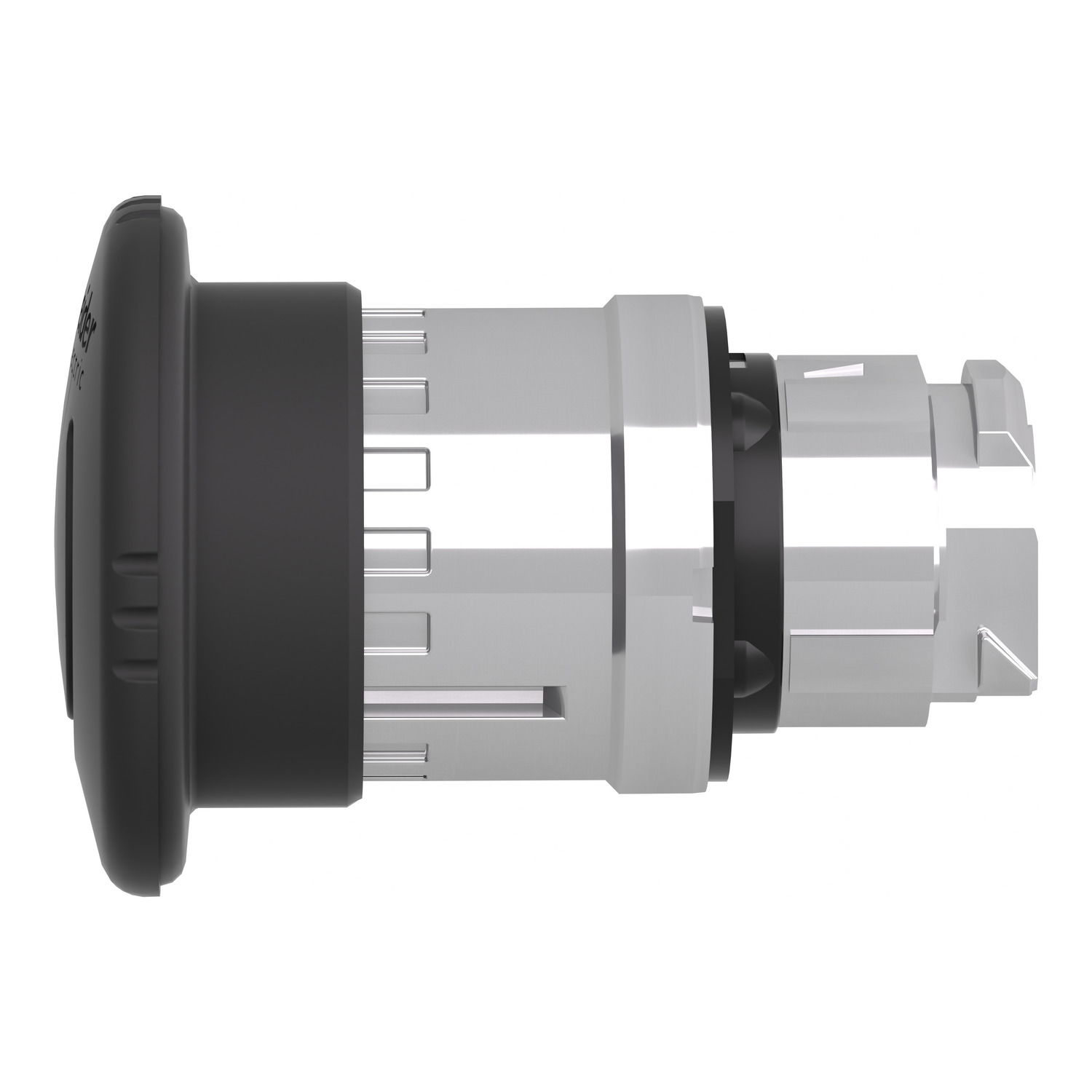

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 8 of 13

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 9 of 13

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 10 of 13

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 11 of 13

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 12 of 13

Black Ø40 mushroom pushbutton head Ø22 latching turn release – Image 13 of 13

1 / 13

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Black Ø40 mushroom pushbutton head Ø22 latching turn release

Link copied

SKU
EAN
GTIN
MPN

Black Ø40 mushroom pushbutton head Ø22 latching turn release by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £16.91 to £27.14 excl. VAT. Voltimum+ members earn 4 points per unit.

This Harmony XB4, 40mm mushroom black button head operates with latched turn to release mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.

Loyalty points: 4

Price range: £ 16.91 - £ 27.14 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Diameter cap	40 mm
Colour button	Black/white
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
With lighting	no
Height opening	-
Type of button	High
With front ring	yes
Unlocking method	Turn-release
Colour front ring	Chrome
Material front ring	Metal
Supply voltage lamp	-
Suitable for lighting	no
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Suitable for emergency stop	no
Switching function latching	yes
