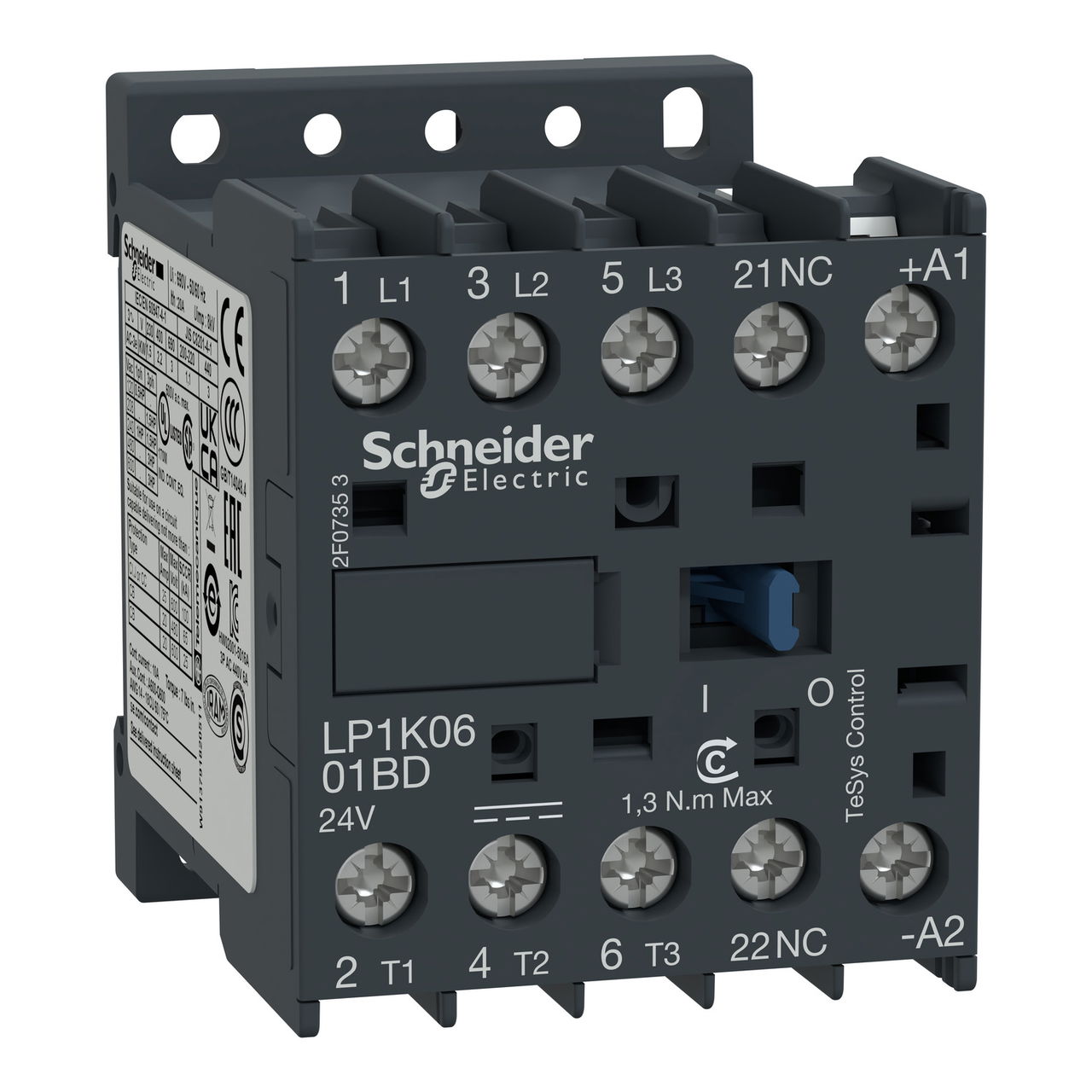

TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NC aux. - 24 V DC coil
TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 24V DC coil, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Product identifiers
SKU: LP1K1201BD
EAN: 3389110790771
GTIN: 3389110790771
MPN: LP1K1201BD
Loyalty points: 18
Price range: £ 28.85 - £ 45.18 Excl. VAT
Categories
Features
|
Depth
|
57 mm
|
|
Width
|
45 mm
|
|
Height
|
58 mm
|
|
Modular version
|
FALSE
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Rated operation power NEMA
|
-
|
|
Voltage type for actuating
|
DC
|
|
Rated control supply voltage DC
|
|
|
Rated operation power at AC-3, 400 V
|
5.5 kW
|
|
Rated operation power at AC-4, 400 V
|
2.2 kW
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Rated operation current Ie at AC-1, 400 V
|
20 A
|
|
Rated operation current Ie at AC-3, 400 V
|
12 A
|
|
Rated operation current Ie at AC-4, 400 V
|
6 A
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of normally open contacts as main contact
|
3
|
|
Number of normally closed contacts as main contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
0
|
|
Number of auxiliary contacts as normally closed contact
|
1
|
