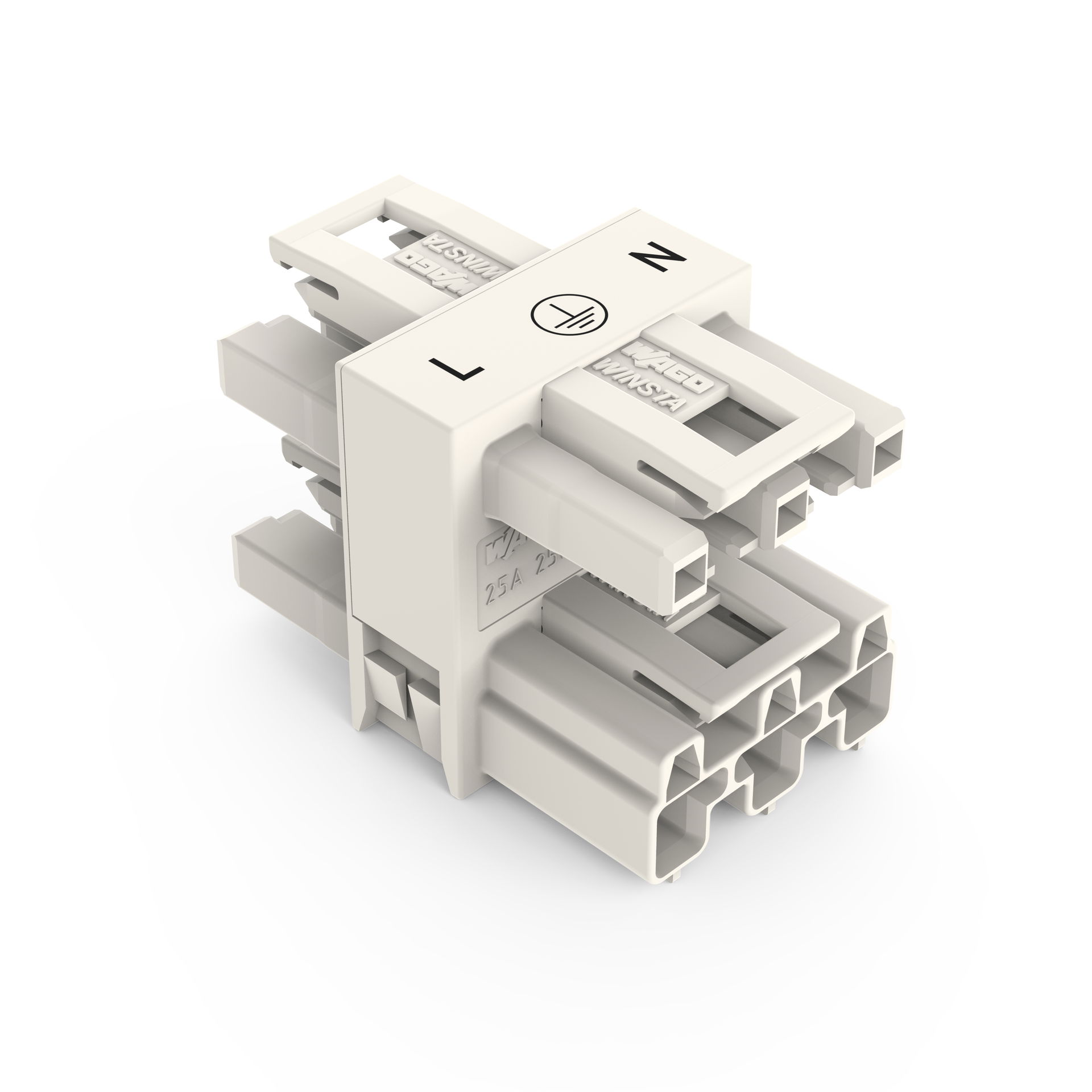

3-way distribution connector 3-pole Cod. A white

Name: 3-way distribution connector 3-pole Cod. A white
Brand: Wago
SKU: 770-657
Availability: InStock

3-way distribution connector; 3-pole; Cod. A; 1 input; 3 outputs; white

Product identifiers

SKU: 770-657

EAN: 4045454251512

GTIN: 4045454251512

MPN: 770-657

Price: £ 4.93 Excl. VAT

Specifications

Width	30
Height	32.7
Length	46
Fire load	0.11722
Halogen free	yes
Phase pickup	-
Rated current	25
Rated voltage	250
Number of poles	3
Type of locking	Integrated in plug-in connector
Contact material	CuSn
Housing material	Polyamide (PA)
Number of inputs	3
Pollution degree	3
Mechanical coding	yes
Number of outputs	9
Pole codification	L, N, PE
Rated surge voltage	4
Type of distributor	H-distributor
Mounting possibility	With separate adapter
Continuity resistance	1
Degree of protection (IP)	IP20
Rated current to luminaire	25
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Type of integrated switching	None
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
