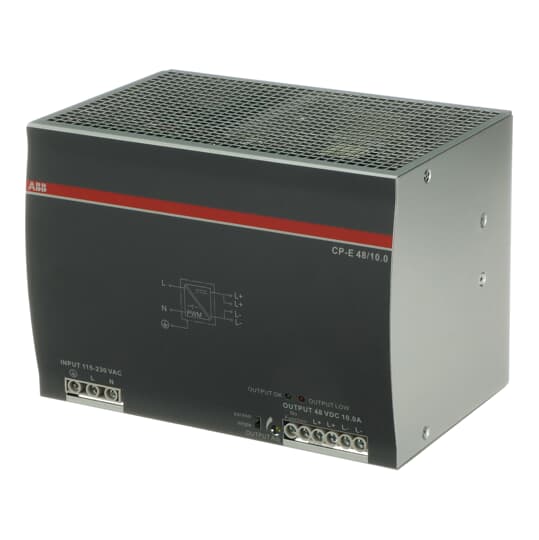

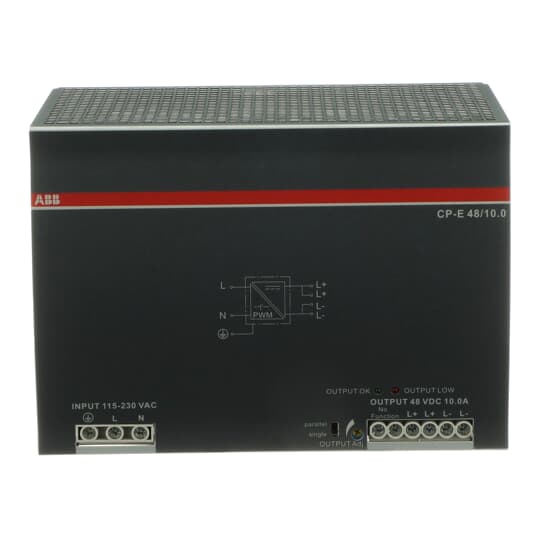

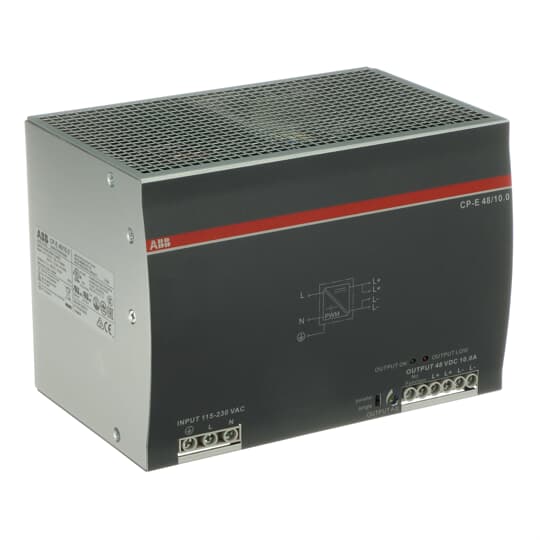

CP-E 48/10.0 Power supply In:115/230VAC Out: 48VDC/10A
CP-E 48/10.0 Power supply In:115/230VAC Out: 48VDC/10A by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £370.06 excl. VAT. Voltimum+ members earn 206 points per unit.
The CP-E 48/10.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 115-230 V AC. The rated output power is 480 W, rated output current is 10 A at an output voltage of 48 V DC. The output voltage is adjustable within a range of 47 to 56 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel.
Product identifiers
SKU: 1SVR427035R2000
EAN: 4016779669733
GTIN: 4016779669733
MPN: CP-E 48/10.0
Loyalty points:
206
Price: £ 370.06 Excl. VAT
Specifications
| Depth | 123.6 |
| Width | 175 |
| Height | 123.6 |
| Stabilized | yes |
| Power output | 480 |
| Built-in width | 175 |
| Built-in height | 123.6 |
| Modular version | no |
