Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

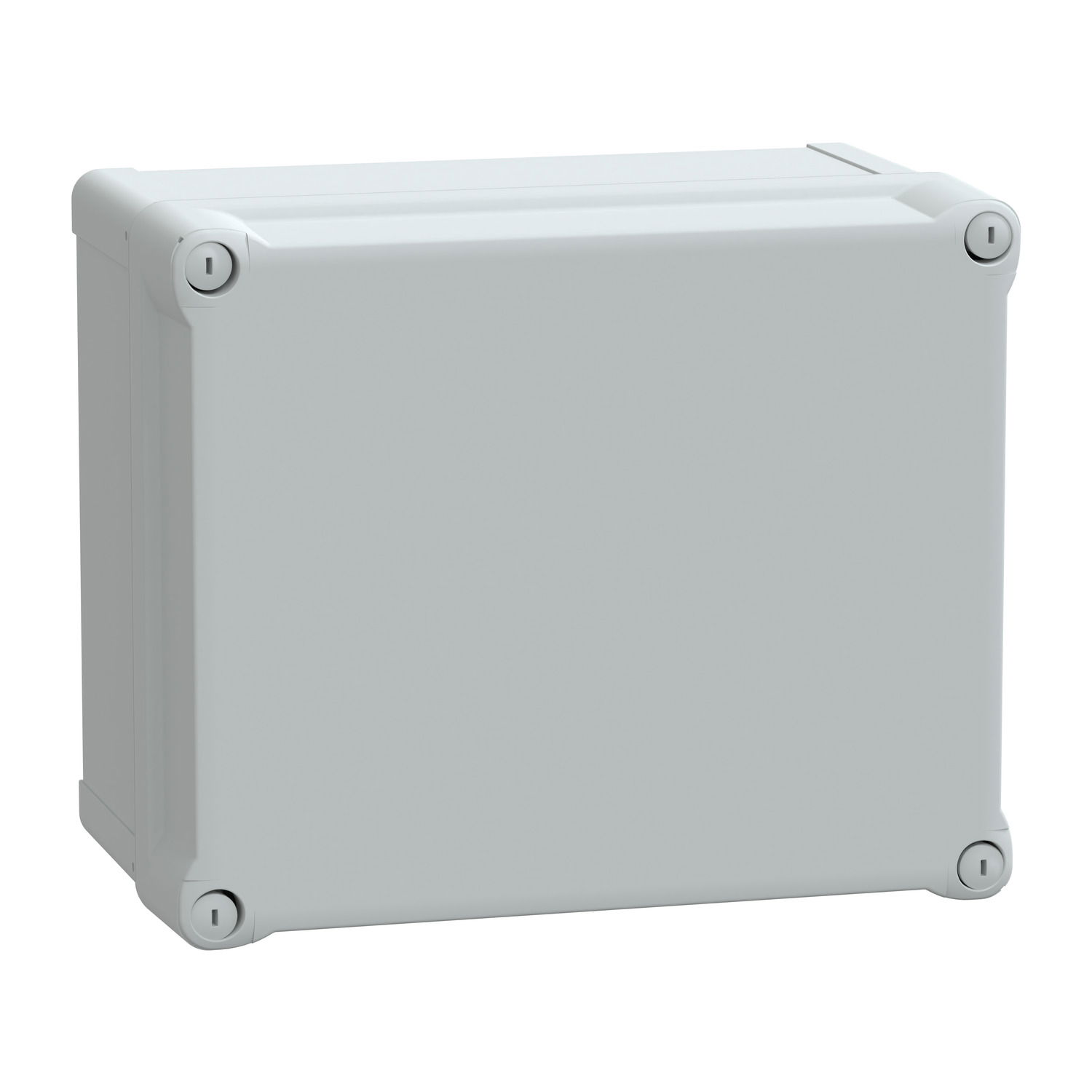

ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60

ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60 by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 1 more. It is currently in stock at 3 of them. Trade prices range from £45.25 to £64.11 excl. VAT. Voltimum+ members earn 8 points per unit.

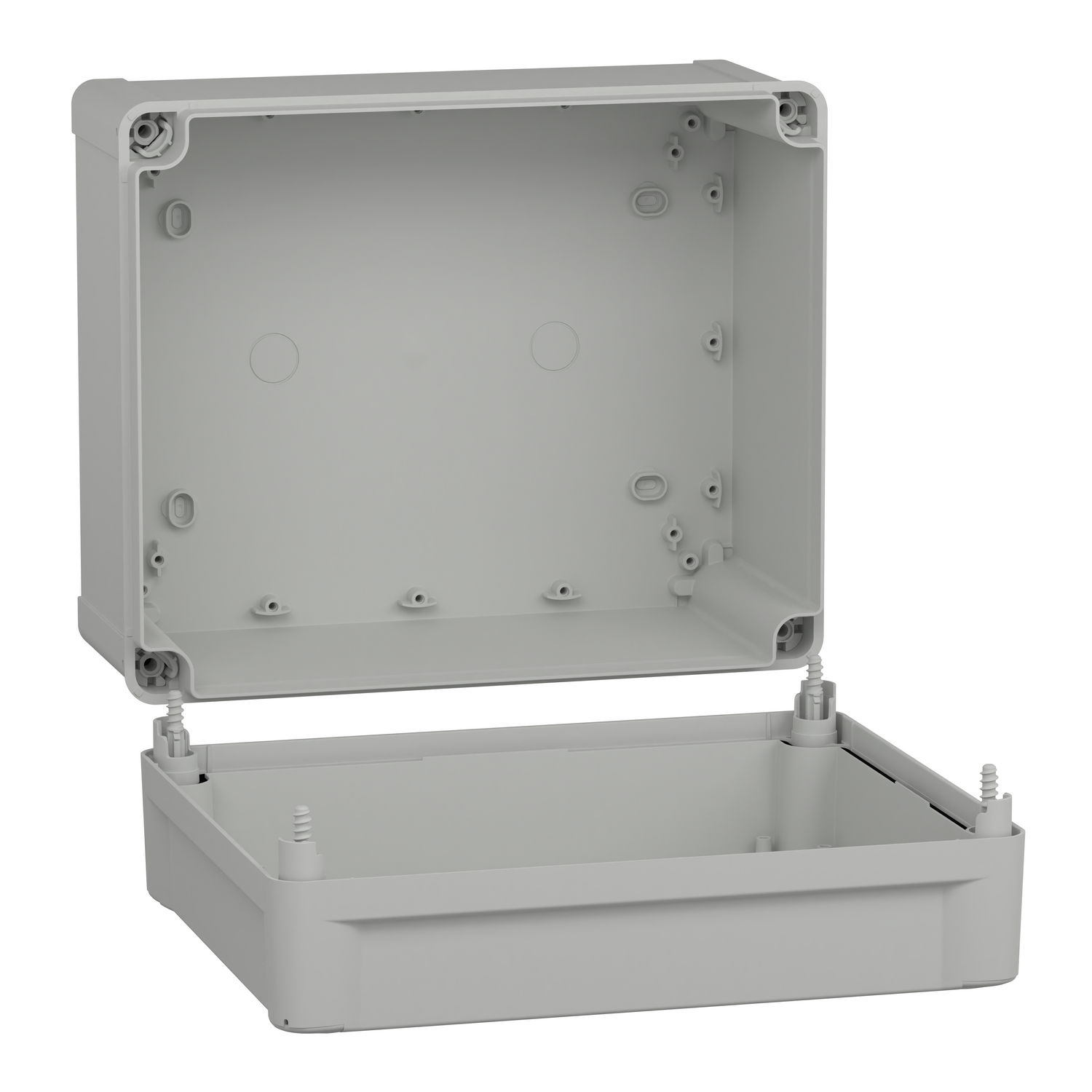

"This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications" "The box has a height, width, and depth of 291 mm, 241 mm, and 168 mm, respectively" "The internal dimensions of the box are 275 mm x 225 mm x 160 mm" "The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures" "The box comes in a grey (RAL 7035) color" "It has a high plain cover that is fixed with captive flat screws" "The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions" "It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard" "The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262)" "It can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance" "With a net weight of 1,24 kg, this TBS is the perfect solution for your multi-purpose needs"

Product identifiers

SKU: NSYTBS292416H
EAN: 3606480165399
GTIN: 3606480165399
MPN: NSYTBS292416H

Voltimum+ Loyalty Programme Loyalty points: 8

Price range: £ 45.25 - £ 64.11 Excl. VAT

Specifications

Depth 168 mm
Width 241 mm
Colour Grey
Height 291 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 160 mm
Built-in depth -
Impact strength IK07
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4
Material plate thickness cabinet 12.5 mm
Material plate thickness door/cover 12.5 mm
Number of openings for flange plates 0
