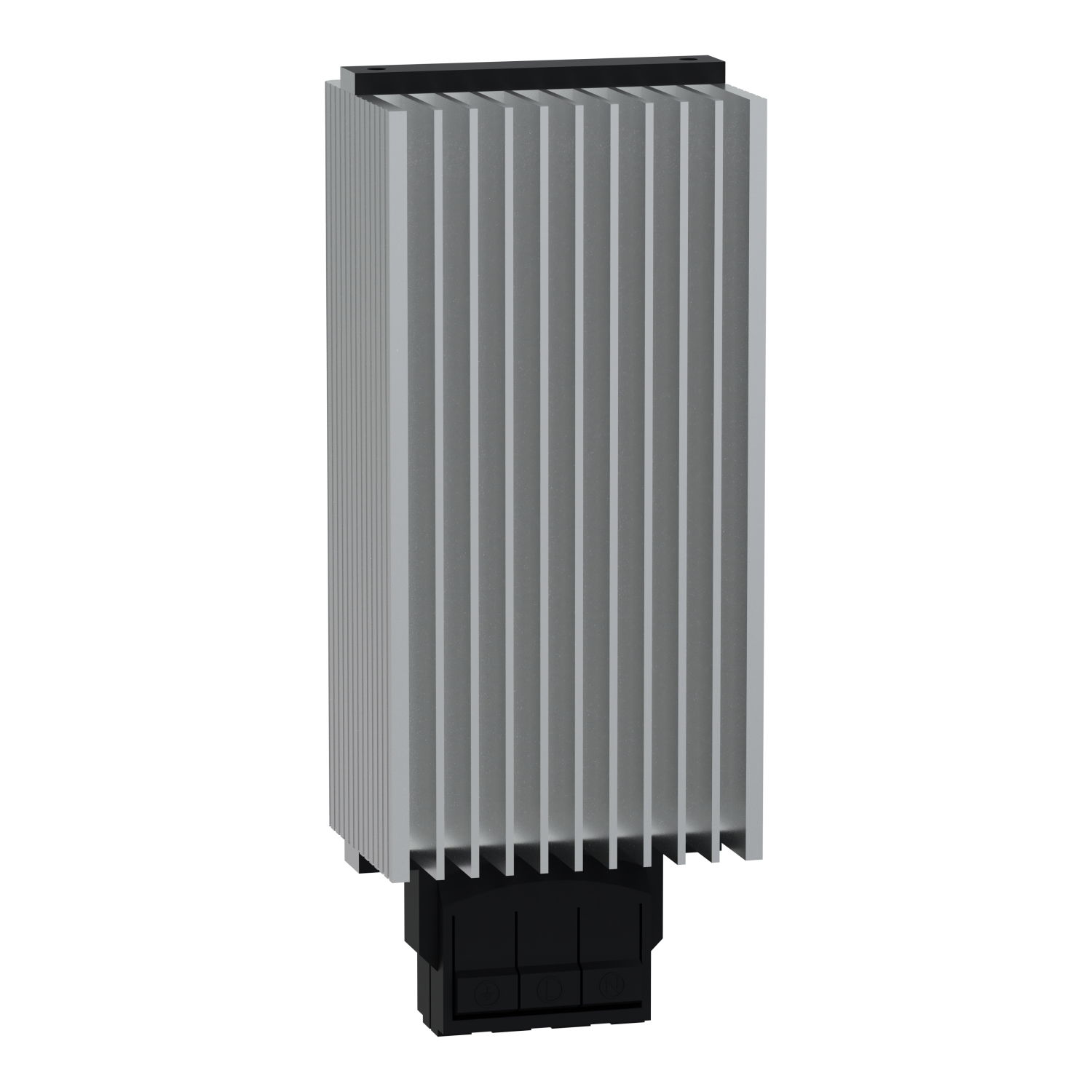

ClimaSys PTC heating resistance 100W 270-420V

Link copied
SKU
EAN
GTIN
MPN

ClimaSys PTC heating resistance 100W 270-420V by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Rexel Group. It is currently in stock at 1 of them. Trade price £114.04 excl. VAT. Voltimum+ members earn 14 points per unit.

"Resistance heater 90W, 270,420 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body" "Fixing by clips in vertical operating position" The product width is 80mm, height is 200mm and depth is 70mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification "This product is qualified as a green premium, with minimal use of hazardous substances"

Voltimum+ Loyalty Programme Loyalty points: 14

Price: £ 114.04 Excl. VAT

Specifications

Depth 70 mm
Width 80 mm
Height 200 mm
With fan no
Rated power 90 W
Voltage type AC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller no

Documents

Declaration of Conformity (Sustainability)

NSYCR100WU3 REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSULATED HEATERS INSTRUCTIONS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYCR100WU3 EU RoHS Directive

Open

Declaration of conformity

DoC_UE_Climasys_Heaters

Open

Environmental Disclosure

ClimaSys Resistance heater

Open
