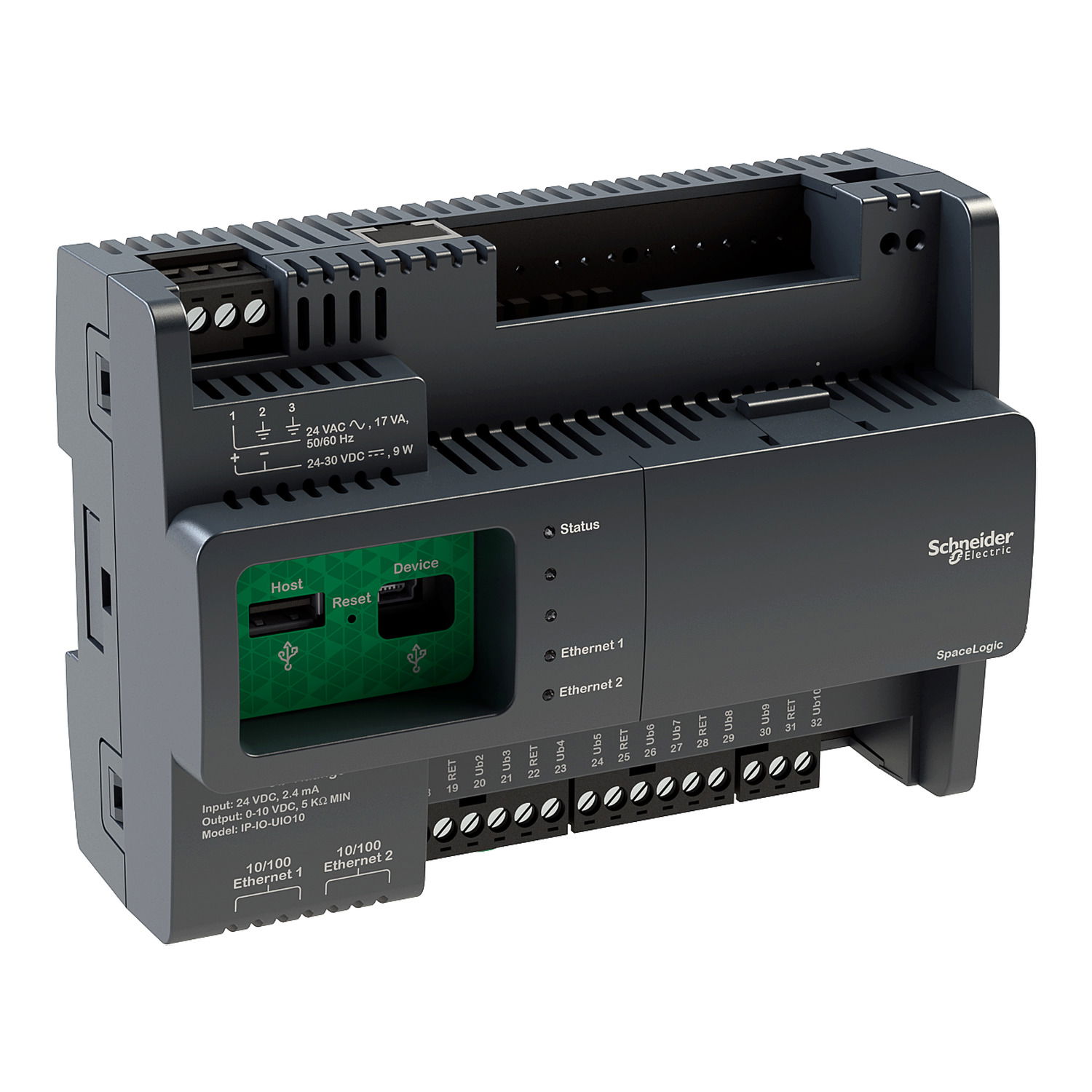

SmartX IP-IO Series Input Output Expander, 10 Universal Inputs/Outputs

SpaceLogic IP Controller IP-IO module provides I/O expansion to HVAC applications over BACnet/IP. It can share its I/O resources across applications running in SpaceLogic servers, SpaceLogic IP controllers, or third-party systems. With local alarms and local trend logs, the module avoids unnecessary traffic over the network while being able to log important information locally. The IP-IO module is based on open protocols that simplify interoperability, IP configuration, and device management. It supports an optional display that provides insight and control of the inputs and outputs. There are three models with different I/O point count and a versatile mix of I/O point types that match a wide variety of applications. The IP-IO-UIO10 model features 10 universal type Ub I/O. Its dimensions are 110 mm (4.3 in.) in height, 153 mm (6.0 in.) in width and 64 mm (2.5 in.) in depth. The IP-IO module supports an optional display (SXWMPCDSP10001). Available spart part is a DIN-rail end clip package (SXWDINEND10001).
