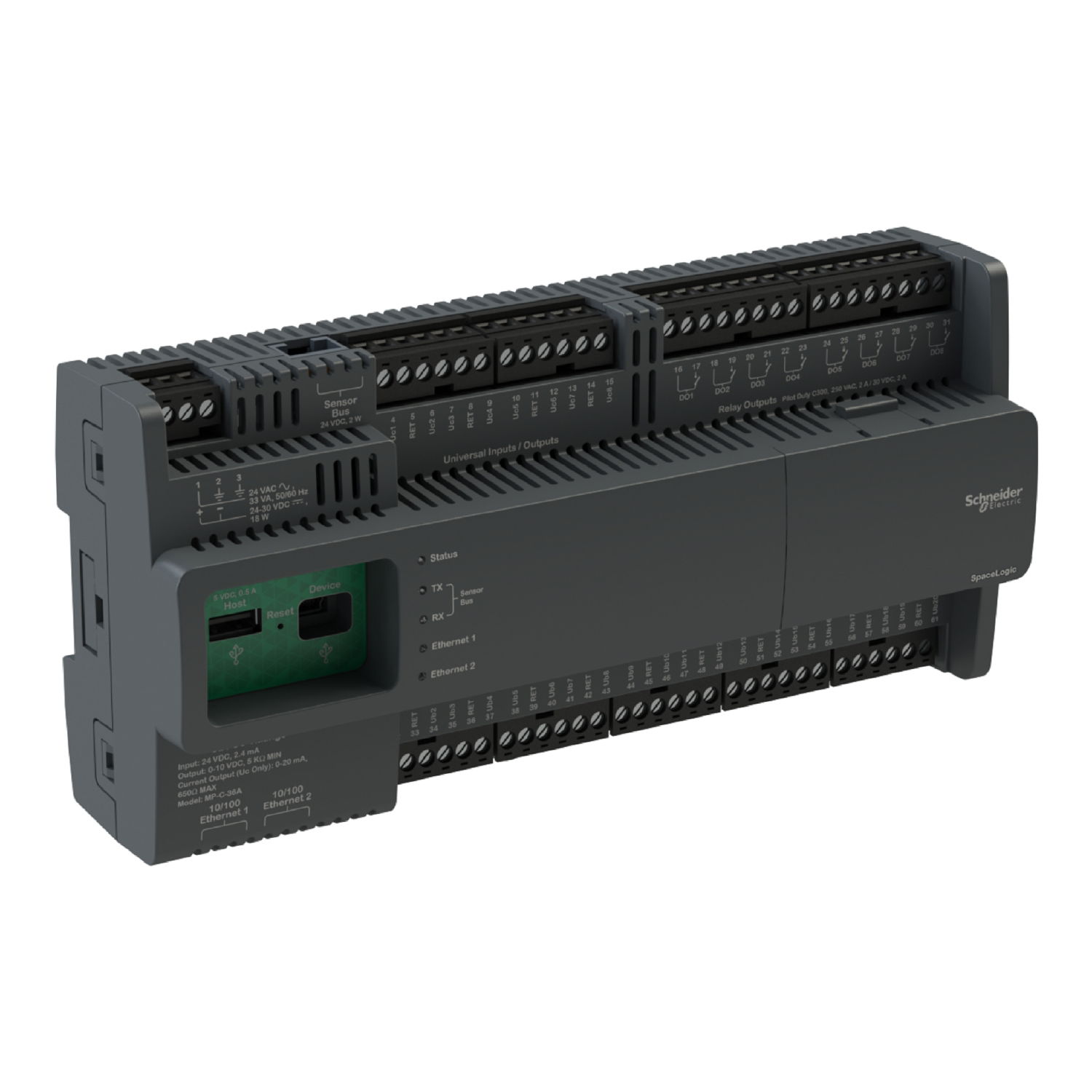

MPC 36 PTS 8UI 8FMA RELAY 20UI

Link copied
SKU
EAN
GTIN
MPN
SpaceLogic MP-C-36A controller is a multi-purpose, fully programmable, IP based field controller ideal for plant room HVAC control. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server. It has a device profile of B-AAC. The MP-C models support an optional display that provides insight and control of the inputs and outputs. The MP-C-36A has 20 Universal I/O Type Ub, 8 Universal I/O Type Uc, 8 Form A Relay I/O points. It supports the SpaceLogic IP-IO Expansion Modules for extended I/O point count. Its dimensions are 110 mm (4.3 in.) in height, 243 mm (9.2 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001). The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Voltimum+ Loyalty Programme Loyalty points: 389

Price: £ 2,331.00 Excl. VAT

Specifications

Depth 64 mm
Width 234 mm
Height -
Contact type -
Smart control yes
Output voltage 250 V
Supply voltage 24 V
Max. contact load -
Reception frequency 50 MHz
Suitable for cooling no
Max. power per channel -
Number of channels/zone -
Connection for external antenna no
Networkable via radiografic (standard) no

Documents

Declaration of Conformity (Sustainability)

SXWMPC36A10001 REACh Regulation

Open

Instruction sheet

SpaceLogic™ MP-C Installation Sheet

Open

Product data sheet

Open

Catalog

EcoStruxture Catalogue

Open

Declaration of Conformity (Sustainability)

SXWMPC36A10001 EU RoHS Directive

Open

Declaration of conformity

CE-DOC-000059-01 SpaceLogic MP-C Series Declaration of conformity

Open

Environmental Disclosure

PEP SpaceLogic MP-C-36A Controller

Open

Circularity Profile

EoLI SpaceLogic MP-C-36A Controller

Open
