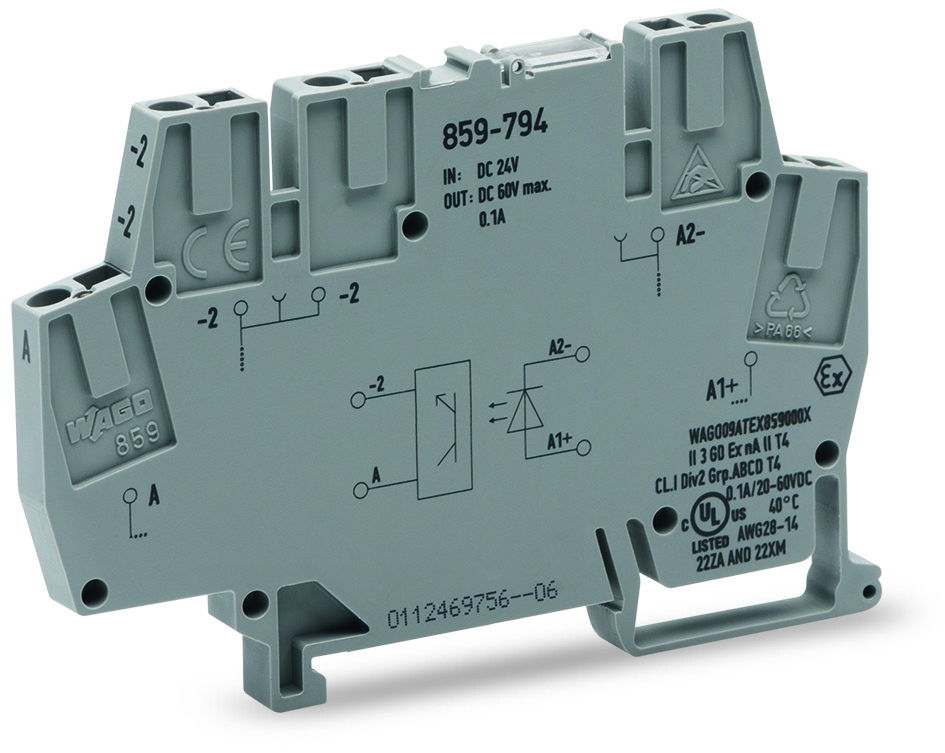

Optocoupler module Nominal input voltage: 24 VDC Output voltage range: 9 … 60 VDC gray
1 / 2
Optocoupler module Nominal input voltage: 24 VDC Output voltage range: 9 … 60 VDC gray
Optocoupler module Nominal input voltage: 24 VDC Output voltage range: 9 … 60 VDC gray by Wago is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at all of them. Trade prices range from £12.94 to £13.34 excl. VAT.
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range: 9 … 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Railway; Red status indicator; Module width: 6 mm; gray
Product identifiers
SKU: 859-794
EAN: 4066966278989
GTIN: 4066966278989
MPN: 859-794
Loyalty points:
3 (x10)
Price range: £ 12.94 - £ 13.34 Excl. VAT
Categories
ETIM group
Specifications
| Input voltage | 16 - 30 |
| Output voltage | 9 - 60 |
| With LED indication | yes |
| Type of digital output | Electronic |
| Type of output voltage | DC |
| Rated operation current Ie | 0.1 |
| Type of voltage (input voltage) | DC |
