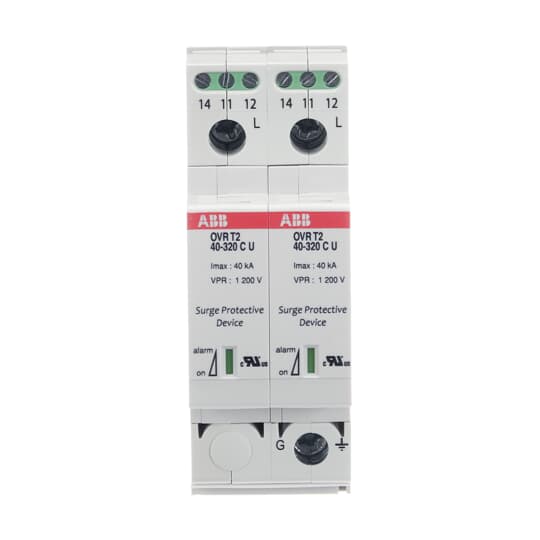

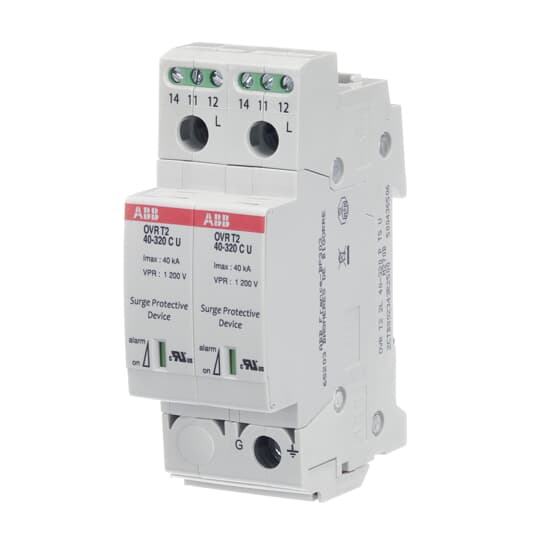

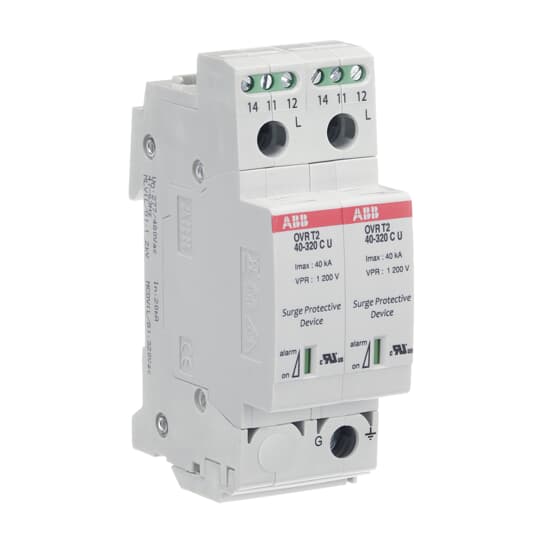

OVR T2 2L 40-320 P TS U Surge Protective Device

Name: OVR T2 2L 40-320 P TS U Surge Protective Device
Brand: ABB
SKU: 2CTB802343R2500
Price: 74.77 GBP
Availability: OutOfStock

Product identifiers

SKU: 2CTB802343R2500

EAN: 3660308518620

GTIN: 3660308518620

MPN: OVR T2 2L 40-320 P TS U

Loyalty points: 7

Price: £ 74.77 Excl. VAT

Specifications

Category type 2	yes
Max. PV-voltage	-
Mounting method	Other
Construction size	2 modular spacing
Nominal voltage AC	277
Nominal voltage DC	-
Leakage-current free	no
Integrated backup fuse	no
System configuration DC	no
System configuration IT	no
System configuration TN	yes
System configuration TT	no
Signalling at the device	Optical
Voltage protection level	1.2
Degree of protection (IP)	IP20
System configuration TN-C	no
System configuration TN-S	yes
Max. continuous voltage AC	320
Max. continuous voltage DC	-
System configuration other	yes
System configuration TN-C-S	yes
Voltage protection level L-N	1.2
Voltage protection level N-PE	-
With remote signalling contact	yes
Integrated short-circuit protection	no
Max. discharge surge current (8/20)	20
Nominal discharge surge current (8/20)	20
Number of conductors (without earthing)	2
Short-circuit breaking capacity (Isccr)	100
Max. conductor cross section flexible (fine-strand)	16
Max. conductor cross section solid (solid, stranded)	25
Integrated short-circuit protection selective to fuse gG	-
Max. overcurrent protection device, series connection (fuse)	-
Max. overcurrent protection device, parallel connection (fuse)	-
