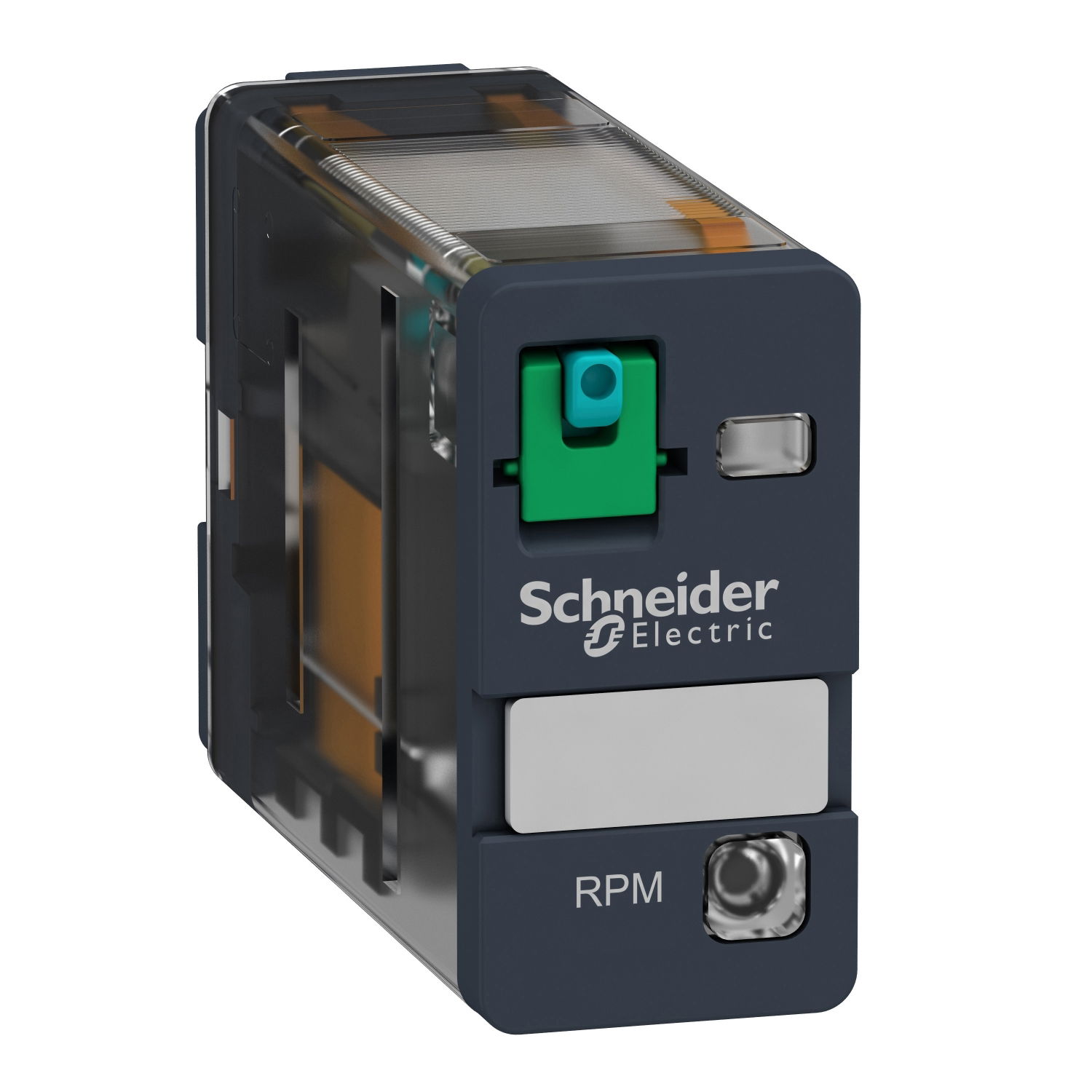

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC

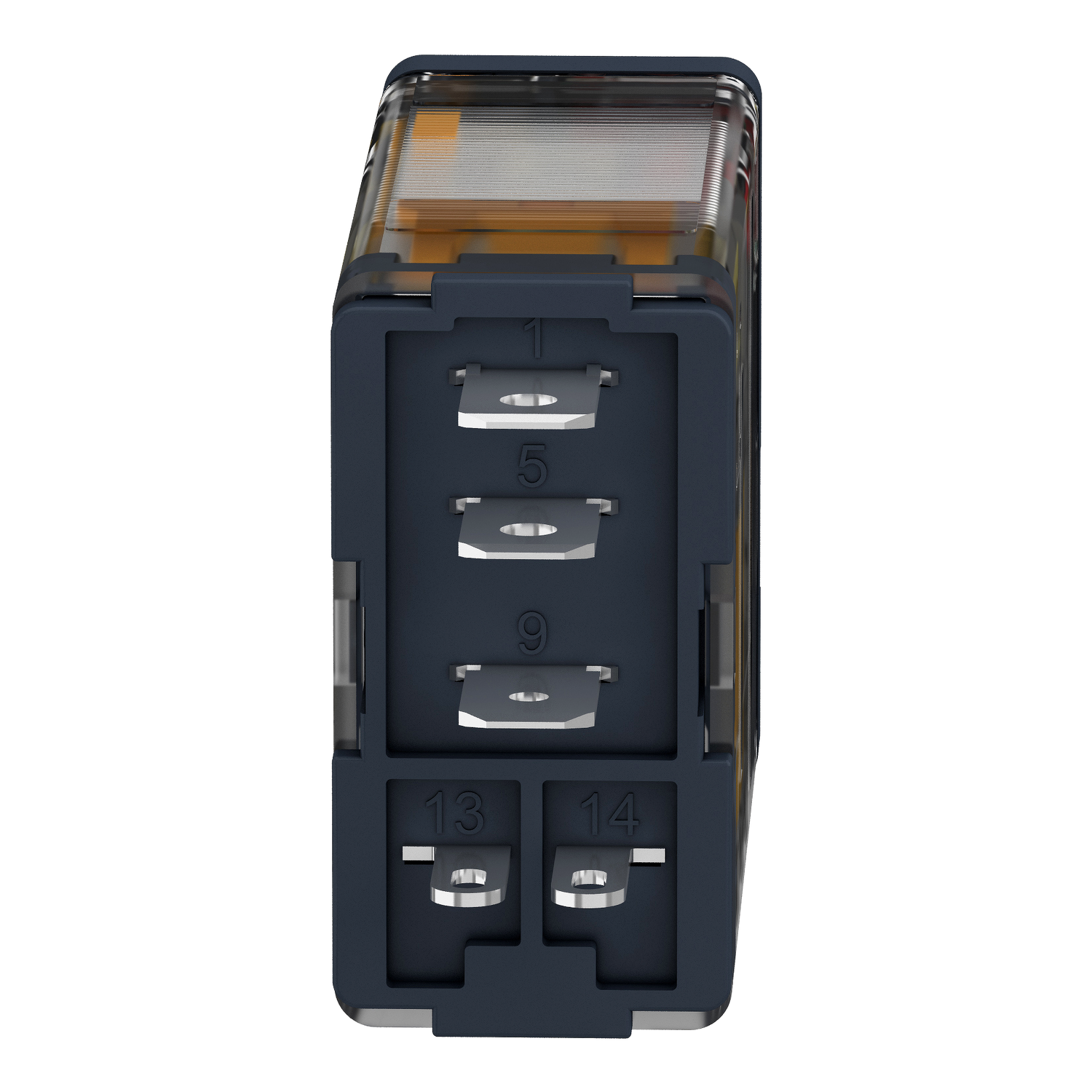

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC – Image 2 of 10

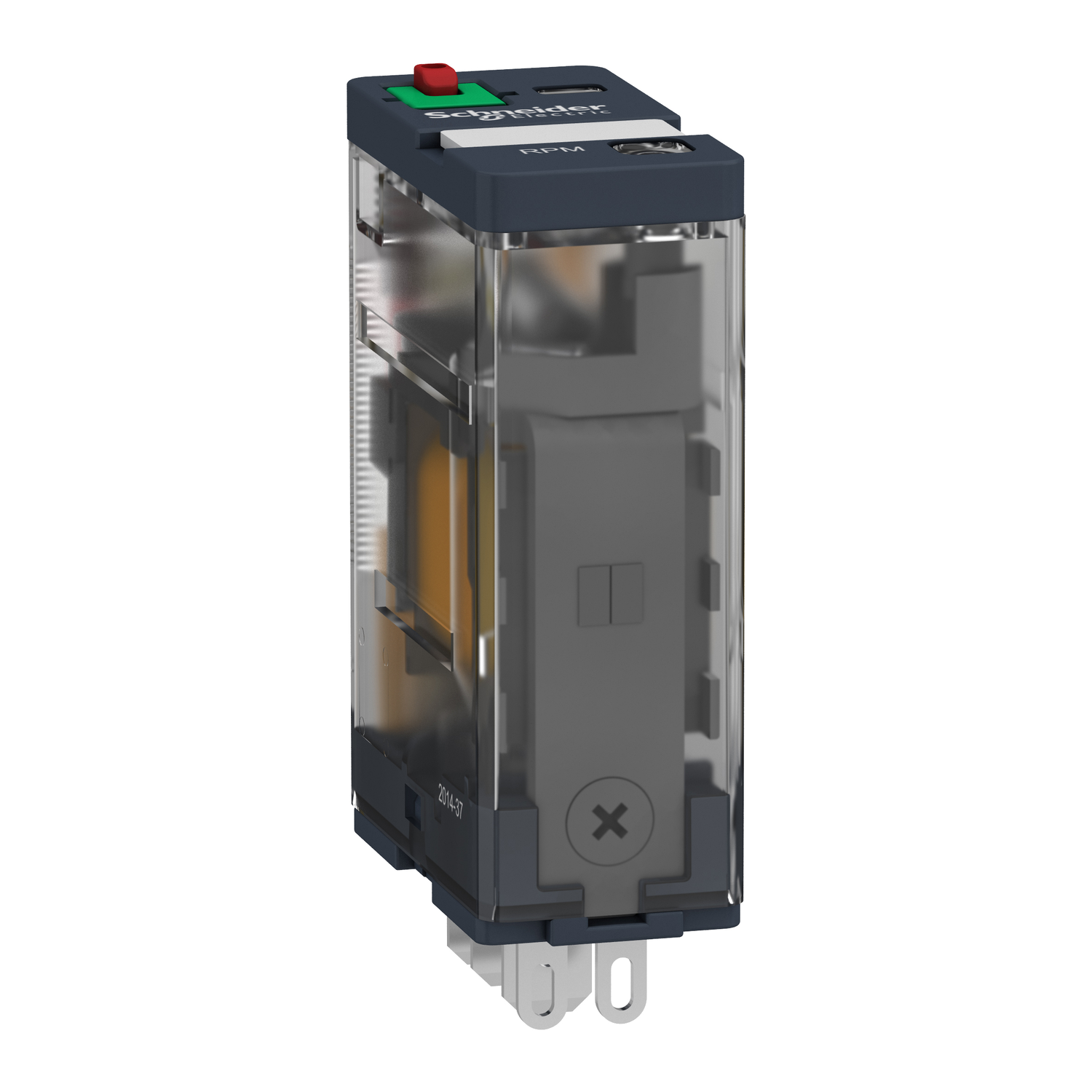

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC – Image 3 of 10

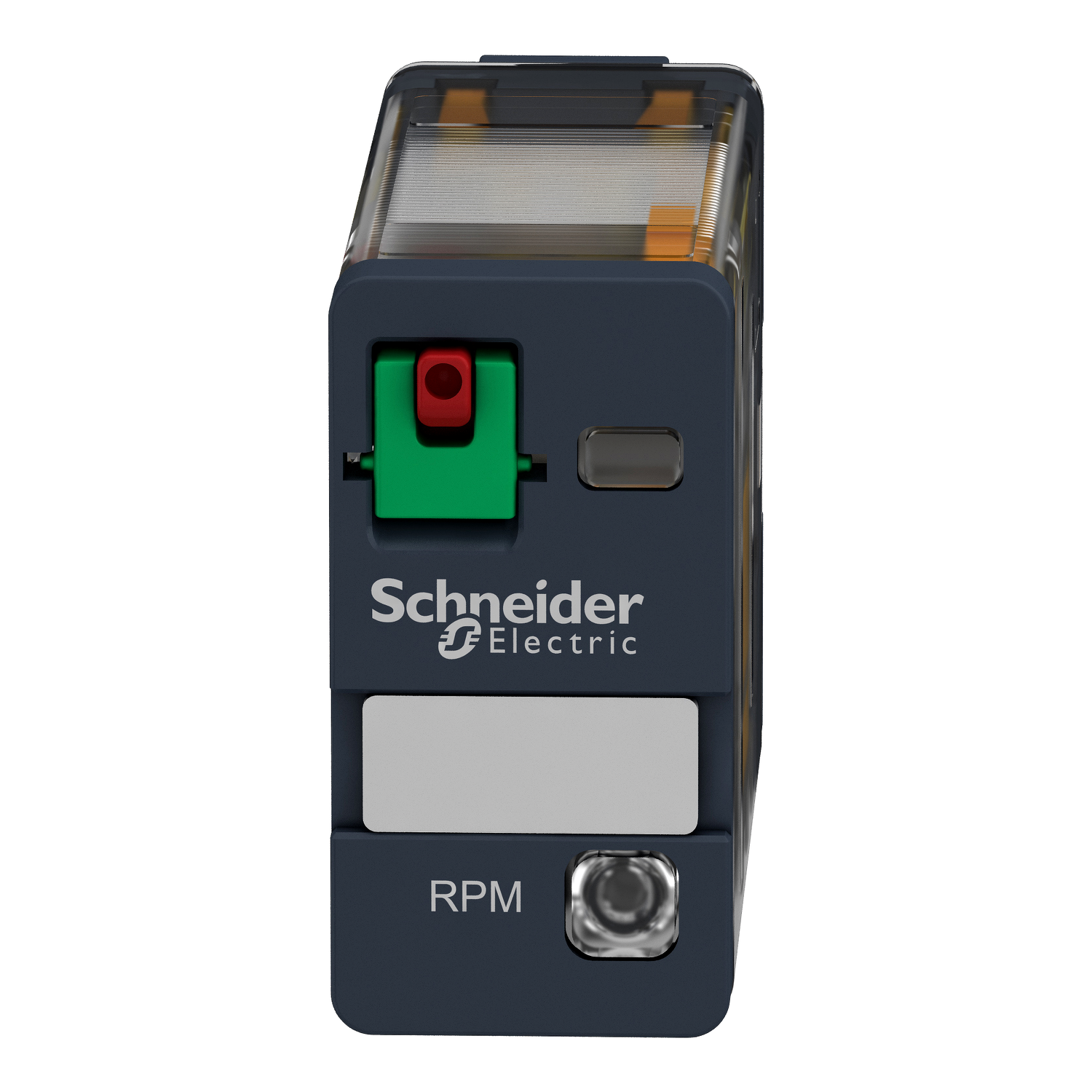

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC – Image 4 of 10

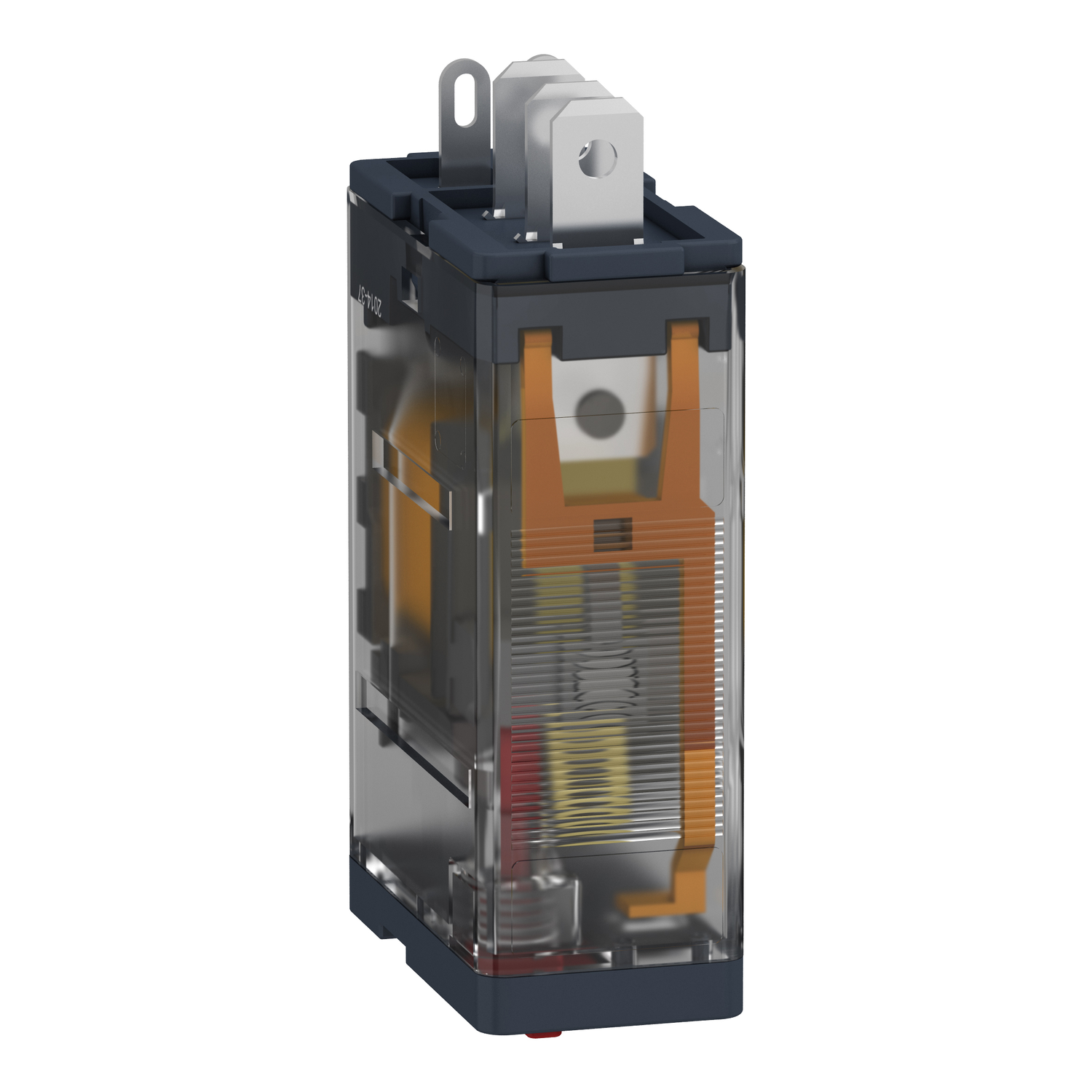

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC – Image 5 of 10

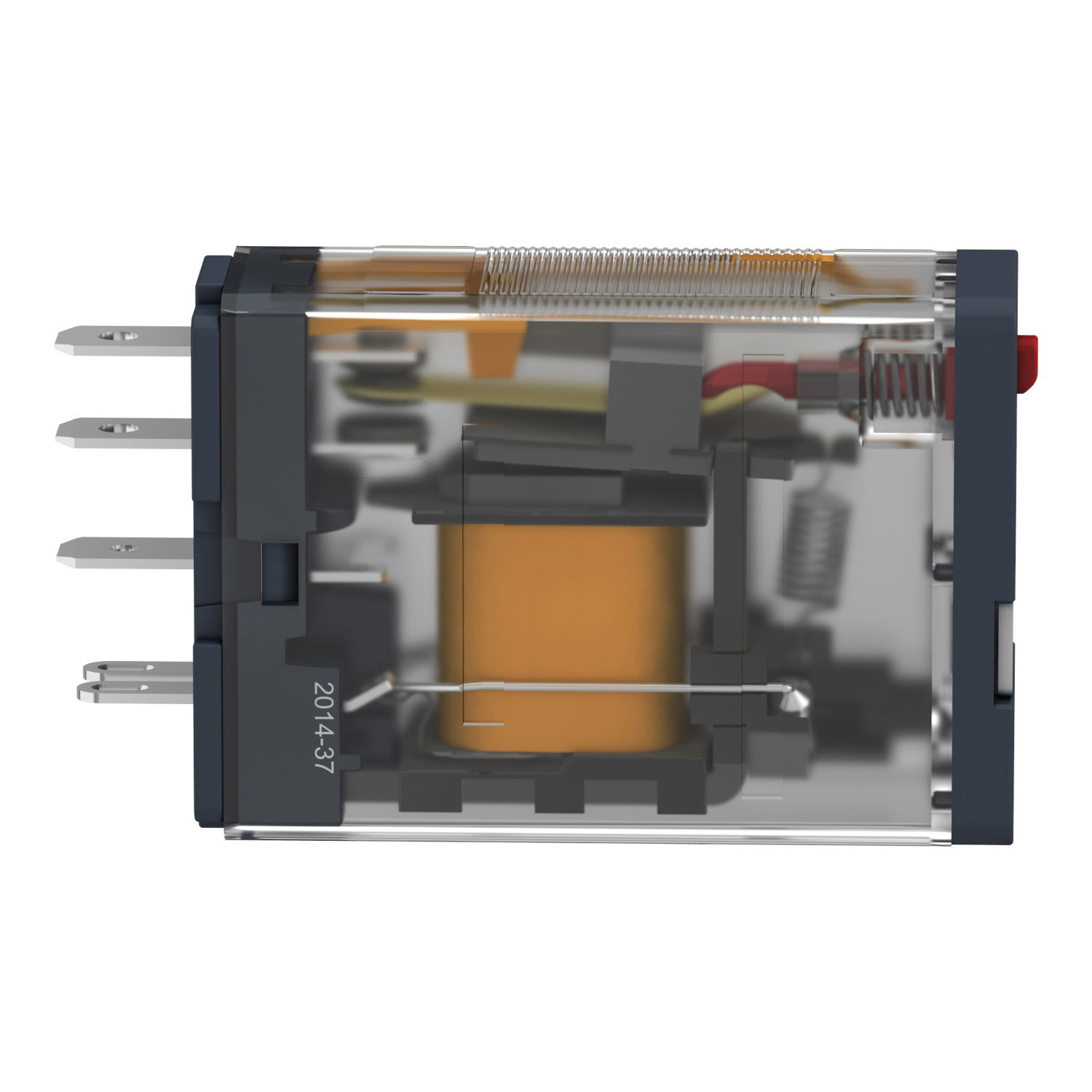

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC – Image 6 of 10

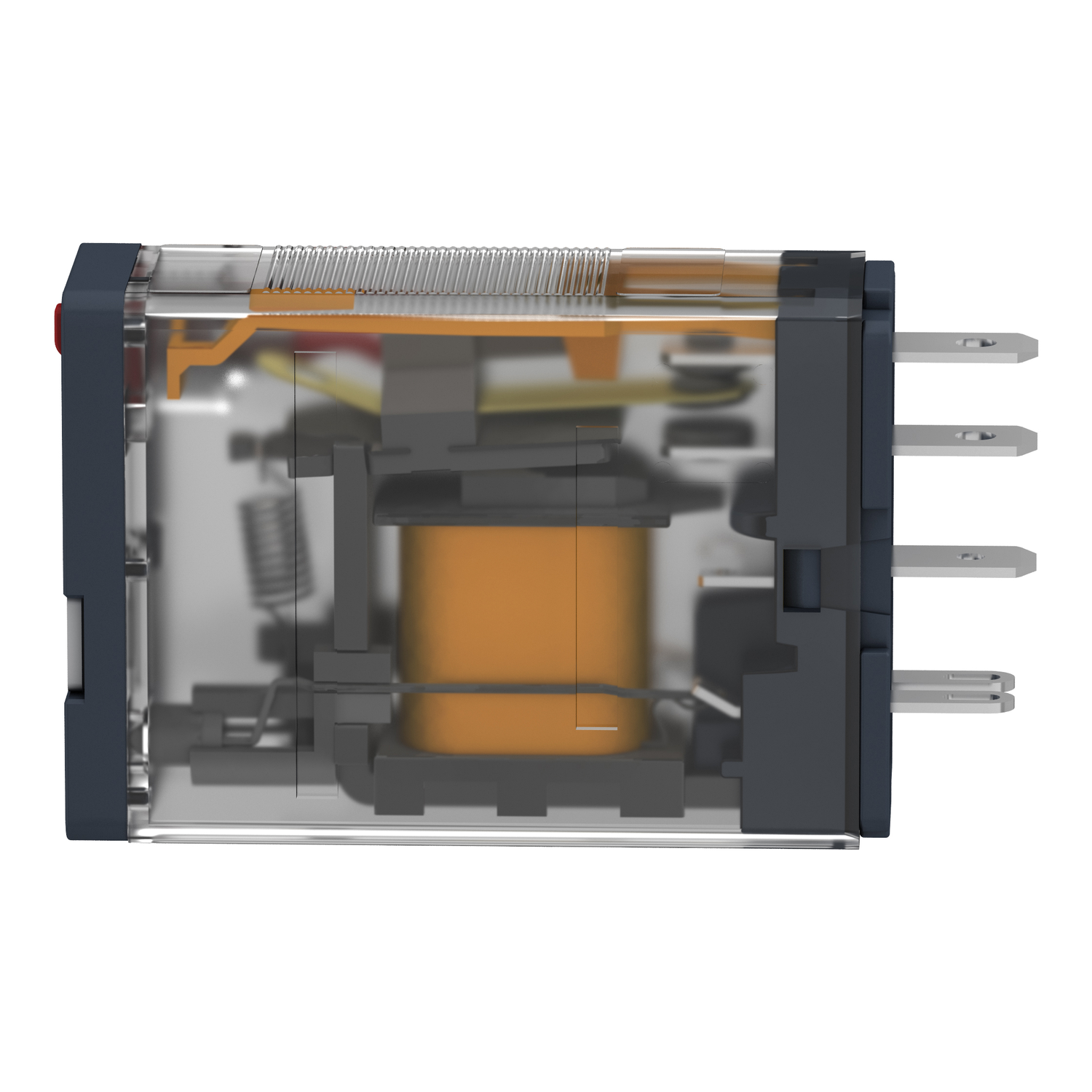

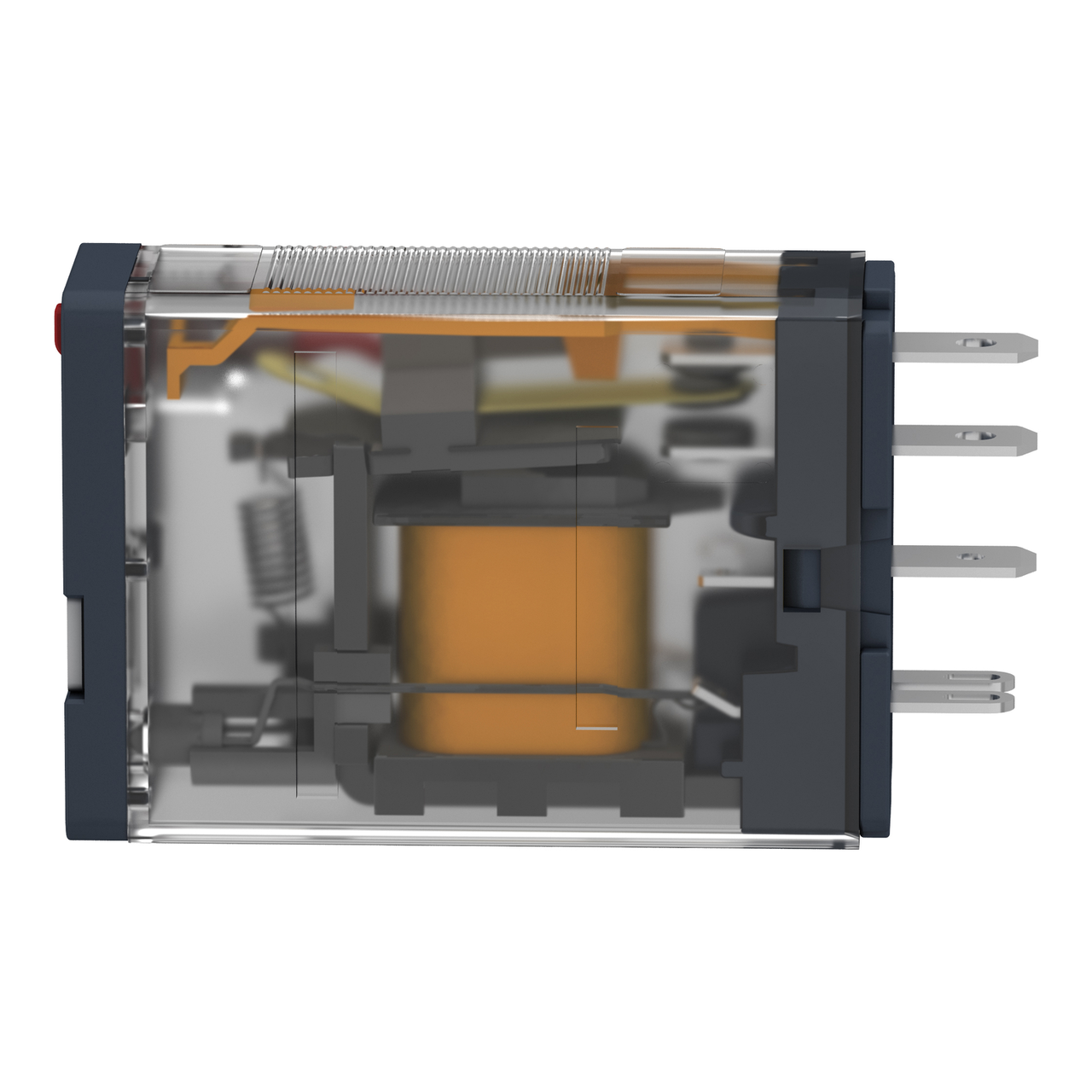

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC – Image 7 of 10

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC – Image 8 of 10

1 / 10

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC

Name: Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC
Brand: Schneider Electric
SKU: RPM12BD
Availability: InStock

Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £4.23 to £6.79 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RPM12BD

EAN: 3389119401739

GTIN: 3389119401739

MPN: RPM12BD

Loyalty points: 1

Price range: £ 4.23 - £ 6.79 Excl. VAT

Specifications

Depth	50 mm
Width	14 mm
Height	27 mm
Nominal current	15 A
Material contact	Other
Drive, polarization	Polarity free
With LED indication	yes
Complete with socket	no
Operating voltage DC
Max. starting current	-
Type of switch contact	Single contact
With detachable clamps	yes
Degree of protection (IP)	IP40
Drive, switching attitude	Mono stable
Material of contact insert	Other
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	DC
Material of contact surface	Other
Type of electric connection	Plug-in connection
With forced-guided contacts	yes
Rated control supply voltage DC
Voltage type (operating voltage)	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of contacts as change-over contact	1
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	RT I
