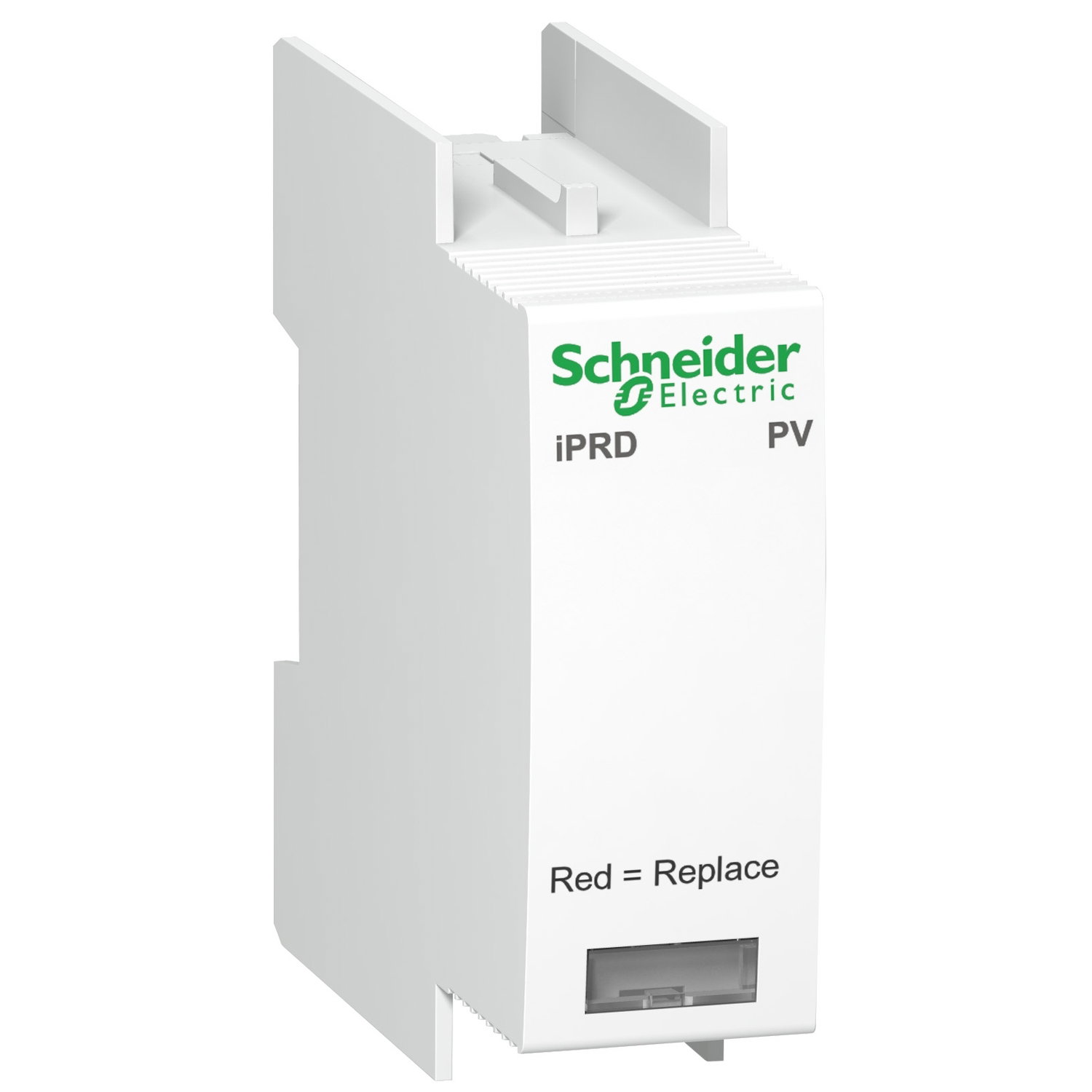

Cartridge C40-1000 PV for surge arrester iPRD-DC

Experience the Acti9 C40-1000 PV compact-size cartridge, designed for 2P iPRD PV-DC surge protection device (SPD). The maximum discharge current is 40kA, and the nominal discharge current is 15kA. Featuring local signaling with white and red flags for clear cartridge replacement indication. The maximum continuous operating voltage is 1000VDC. The maximum voltage protection level is 2kV. It can be plugged into a surge-protecting device module. Its width is 2 pitches of 9mm. The dimensions are (W) 18mm x (H) 57mm x (D) 56mm. The product colour is white (RAL 9003). It offers reliable protection with an IP20 rating on the front face. The product operates in temperatures between -25°C and 60°C. It complies with EN/IEC 61643-31 standard. Acti9 iPRD-DC-PV range is a range of Surge Protection Devices for photovoltaic applications, protecting equipments against the overvoltages coming from the lightning strikes of the PV inverter direct current input and of the photovoltaic panels. They are particularly important to protect sensitive electrical equipments like AC/DC inverters, monitoring devices, PV panels or other sensitive equipments powered by the 230V AC electrical distribution network.

Product identifiers

SKU: A9L40182
EAN: 3606480506642
GTIN: 3606480506642
MPN: A9L40182

Voltimum+ Loyalty Programme Loyalty points: 35

Price: £ 211.00 Excl. VAT

Categories

Low Voltage Switchgear Switchgear Switchgear & Circuit Protection

ETIM group

Earthing, lightning and surge protection

Specifications

Category type 2 yes
Max. PV-voltage 1000 V
Mounting method On basic element
Construction size 1 modular spacing
Nominal voltage AC -
Nominal voltage DC 1000 V
Leakage-current free no
Integrated backup fuse no
System configuration IT no
System configuration TT no
Voltage protection level 2 kV
System configuration TN-C no
Max. continuous voltage AC -
System configuration other no
Voltage protection level L-N -
With remote signalling contact no
Max. discharge surge current (8/20) 40 kA
Number of conductors (without earthing) -
Max. conductor cross section flexible (fine-strand) -
Integrated short-circuit protection selective to fuse gG -
Max. overcurrent protection device, parallel connection (fuse) -

Documents

Declaration of Conformity (Sustainability)

A9L40182 REACh Regulation

Open

Instruction sheet

iPRD 40r PV (Type 2) Surge arrester - Instruction Sheet

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

A9L40182 EU RoHS Directive

Open

Declaration of conformity

EU Declaration of Conformity Schneider Electric

Open

Declaration of Conformity (Sustainability)

A9L40182 POP Directive

Open

Declaration of Conformity (Sustainability)

A9L40182 OECD PFAS Regulation

Open

Environmental Disclosure

Acti9 iPRU 40r 40kA 3P+N 350V SPD

Open
