Monobloc perforated plates H500xW400mm with universal perforations 11x26mm

Link copied

SKU
EAN
GTIN
MPN

Monobloc perforated plates H500xW400mm with universal perforations 11x26mm by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £23.76 to £26.37 excl. VAT. Voltimum+ members earn 3 points per unit.

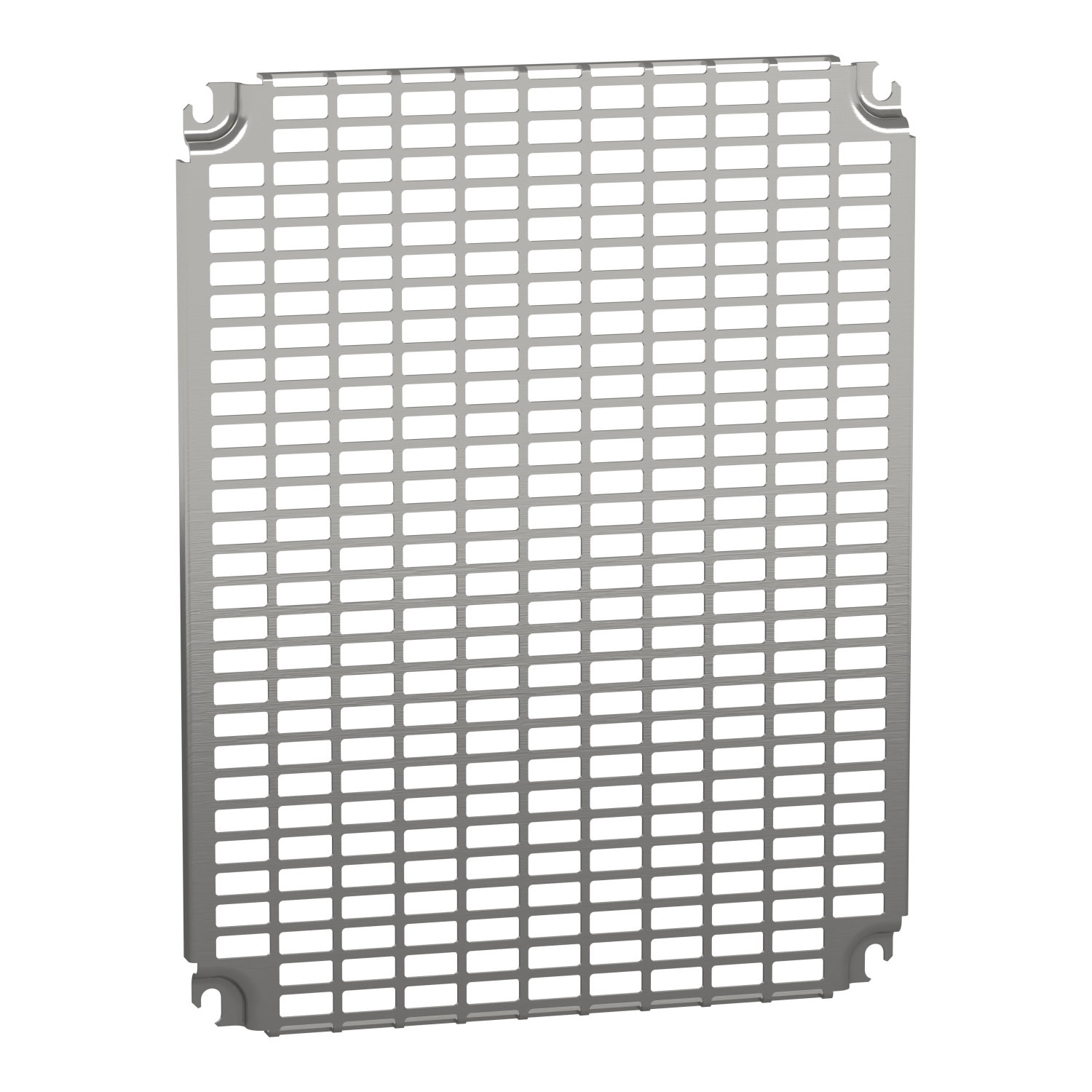

Monobloc perforated mounting plates with universal perforations for Spatial CRN, S3D, S3X and PanelSeT PLM. The dimensions are (H) 500 mm x (W) 400 mm. The mounting plate can be fixed using step slide or by direct fixing on backstuds (M8 screws). It is Telequick perforated. The dimensions of the cut-out are 11 mm x 26 mm. It count a total of 341 slots. The product is made of steel with zinc coated surface finish. It can be installed in the rear of the enclosure.

Loyalty points: 3

Price range: £ 23.76 - £ 26.37 Excl. VAT

Specifications

Width	400 mm
Height	500 mm
Material	Steel
Perforated	yes
Surface protection	Galvanised
