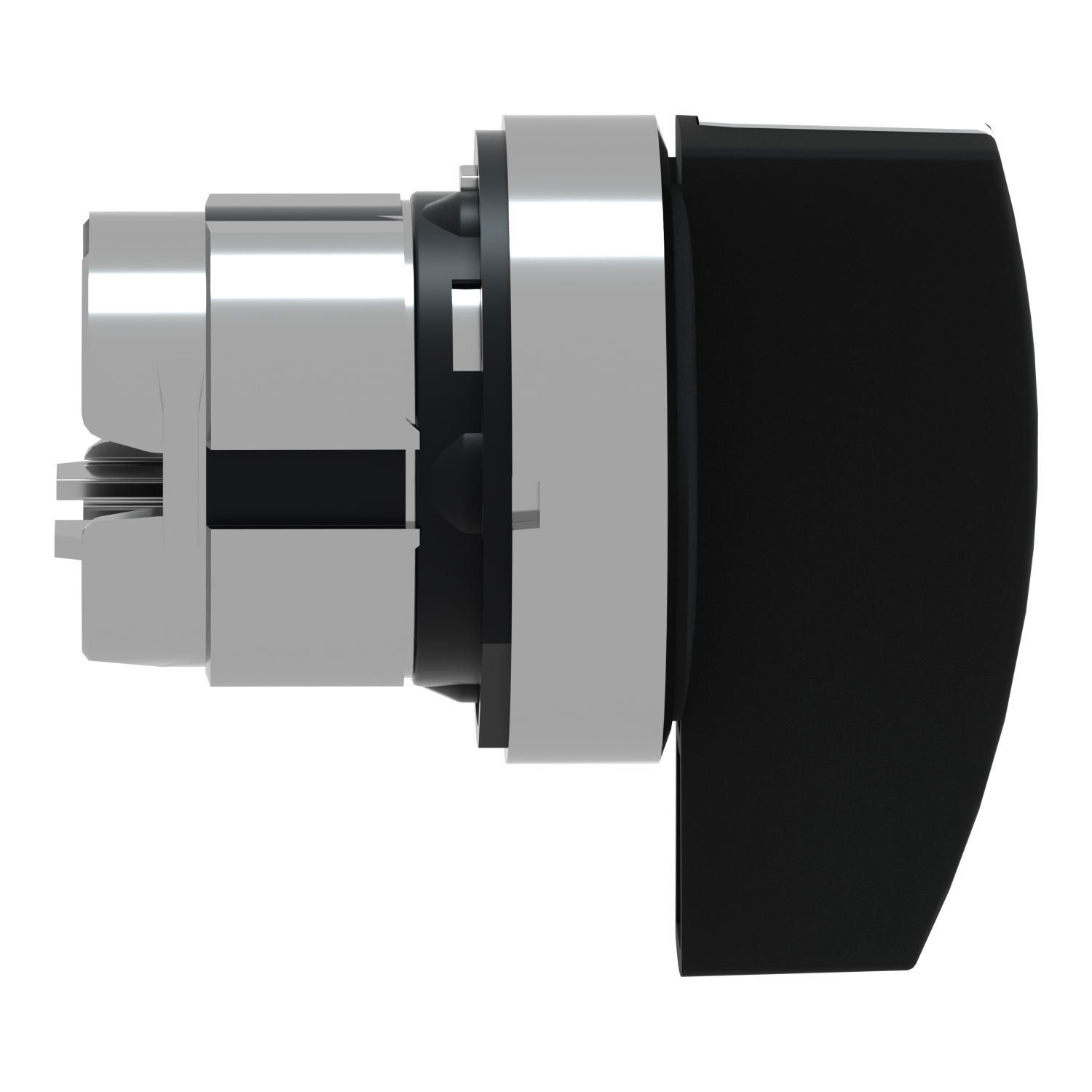

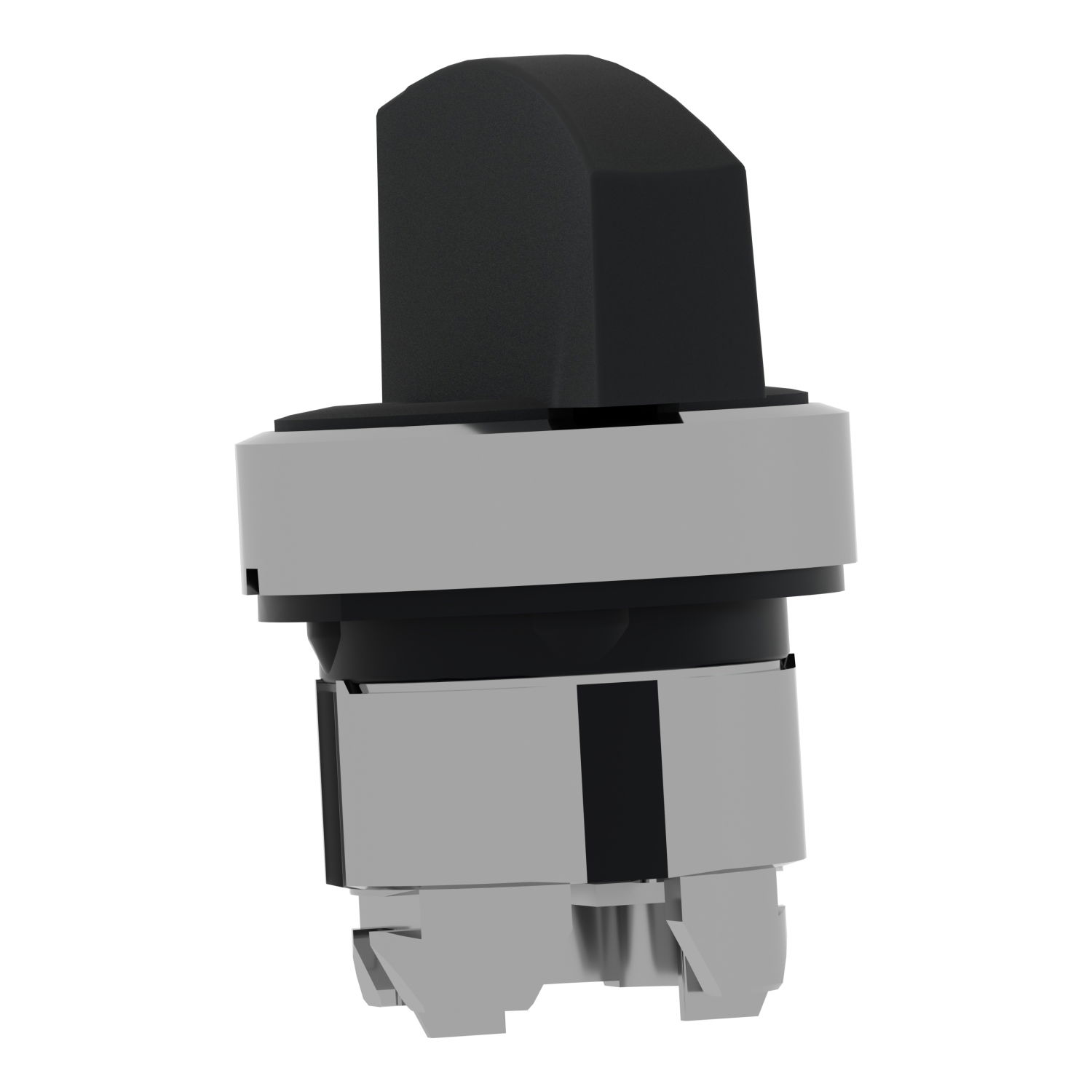

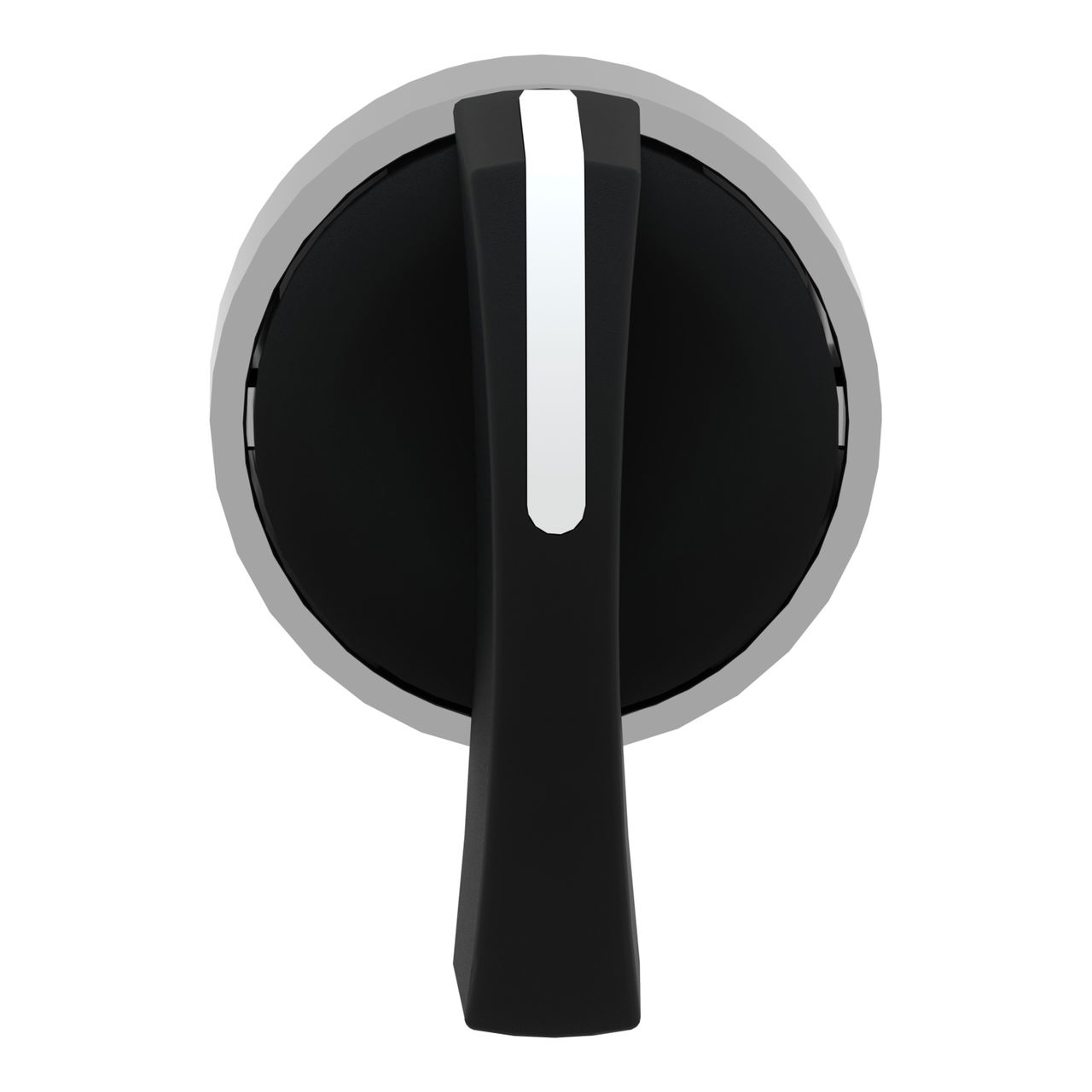

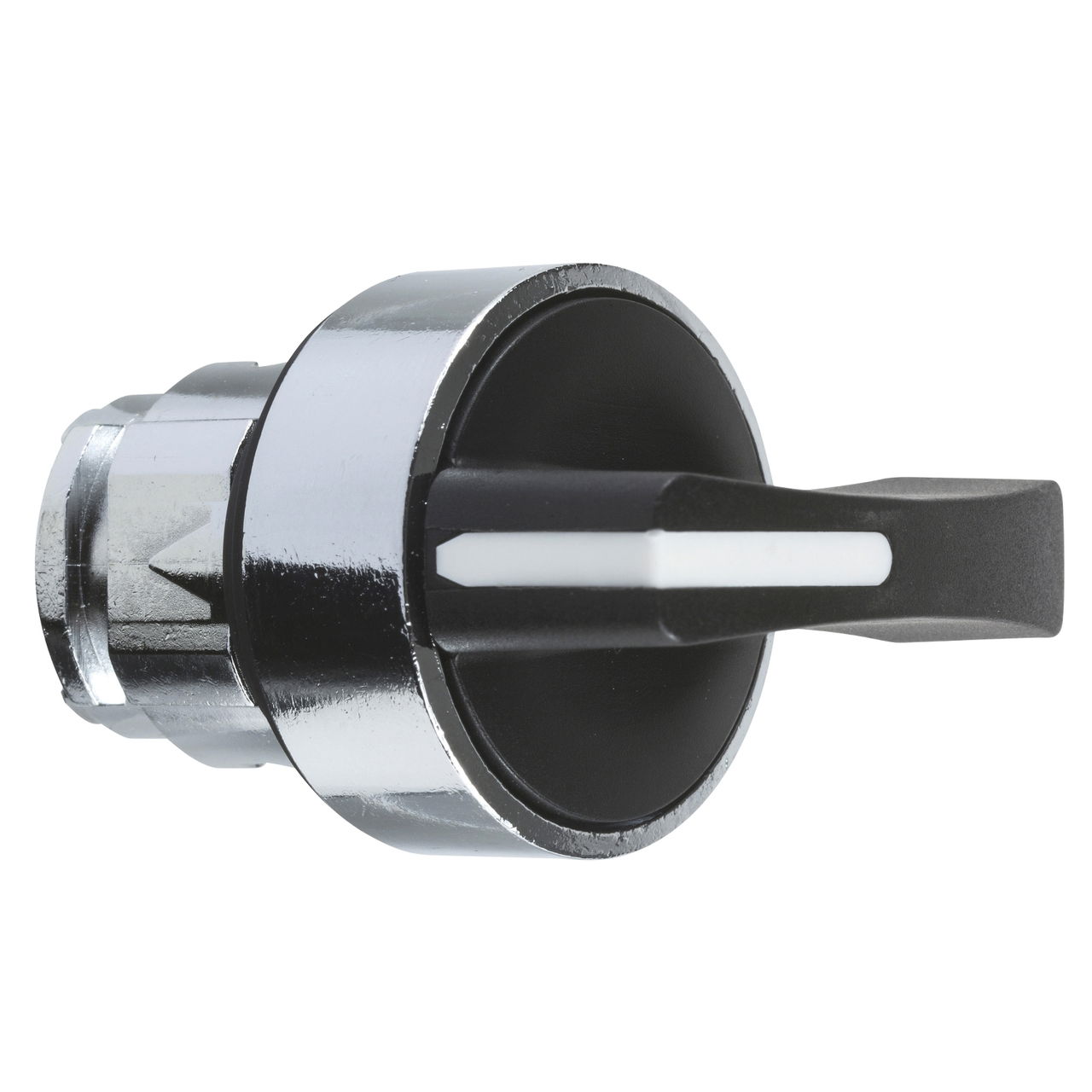

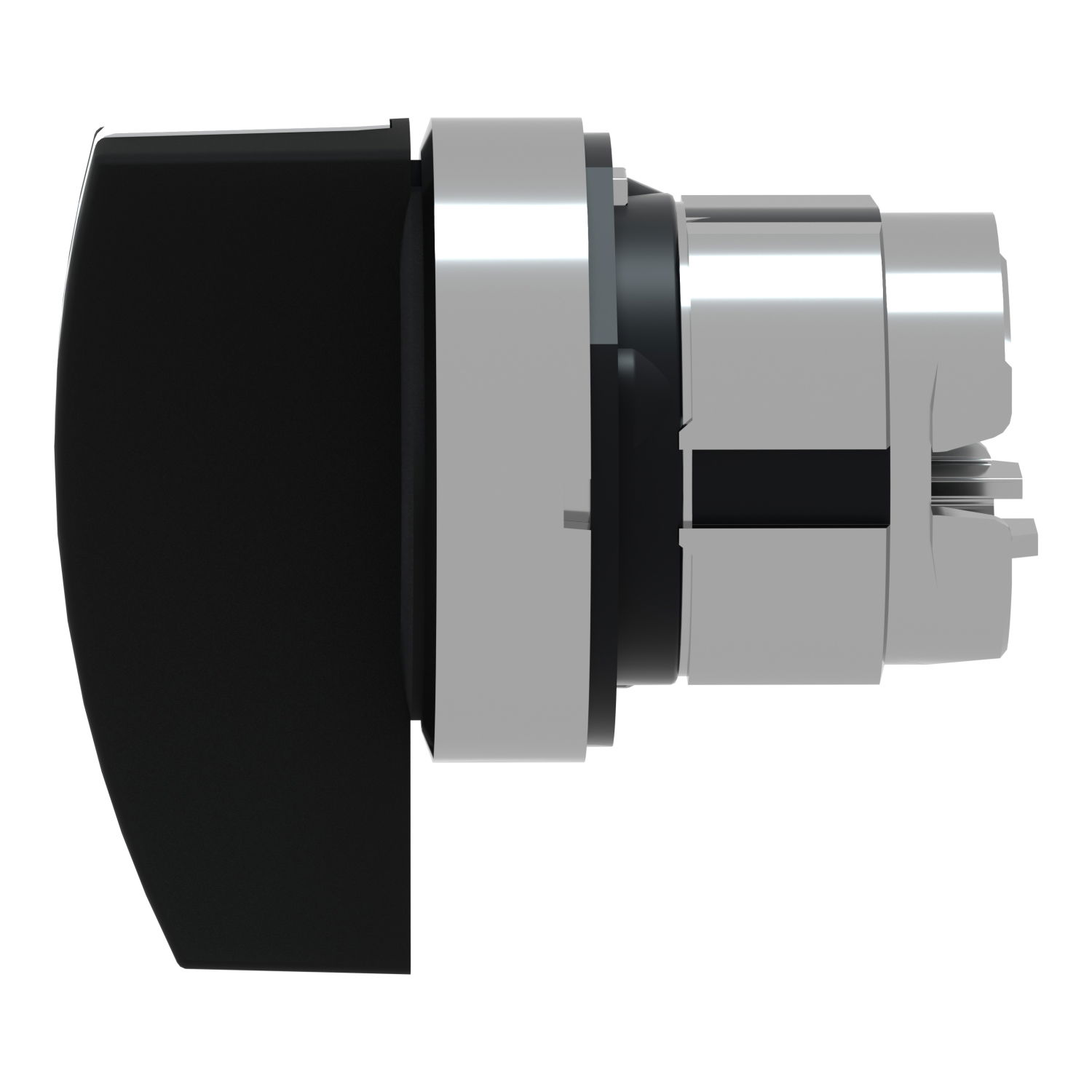

Black selector switch head Ø22 3-position stay put

Link copied
SKU
EAN
GTIN
MPN

Black selector switch head Ø22 3-position stay put by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £8.97 to £14.39 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB4, black head with long handle has 3 positions, operates with stay-put mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 8.97 - £ 14.39 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Industrial Switchgear

ETIM group

Low-voltage industrial components

Specifications

Hole diameter 22.5 mm
Spring-return no
Width opening -
Height opening -
With front ring yes
Colour front ring Chrome
Material front ring Metal
Suitable for lighting no
Construction type lens Round
Colour indicator light cap -
Degree of protection (NEMA) Other
Degree of protection (IP), front side IP67/IP69K

Documents

Declaration of Conformity (Sustainability)

ZB4BJ3 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB4 metal Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB4BJ3 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

Harmony XB5 Key Selector Switch

Open

Circularity Profile

Harmony XB5 Key Selector Switch

Open
