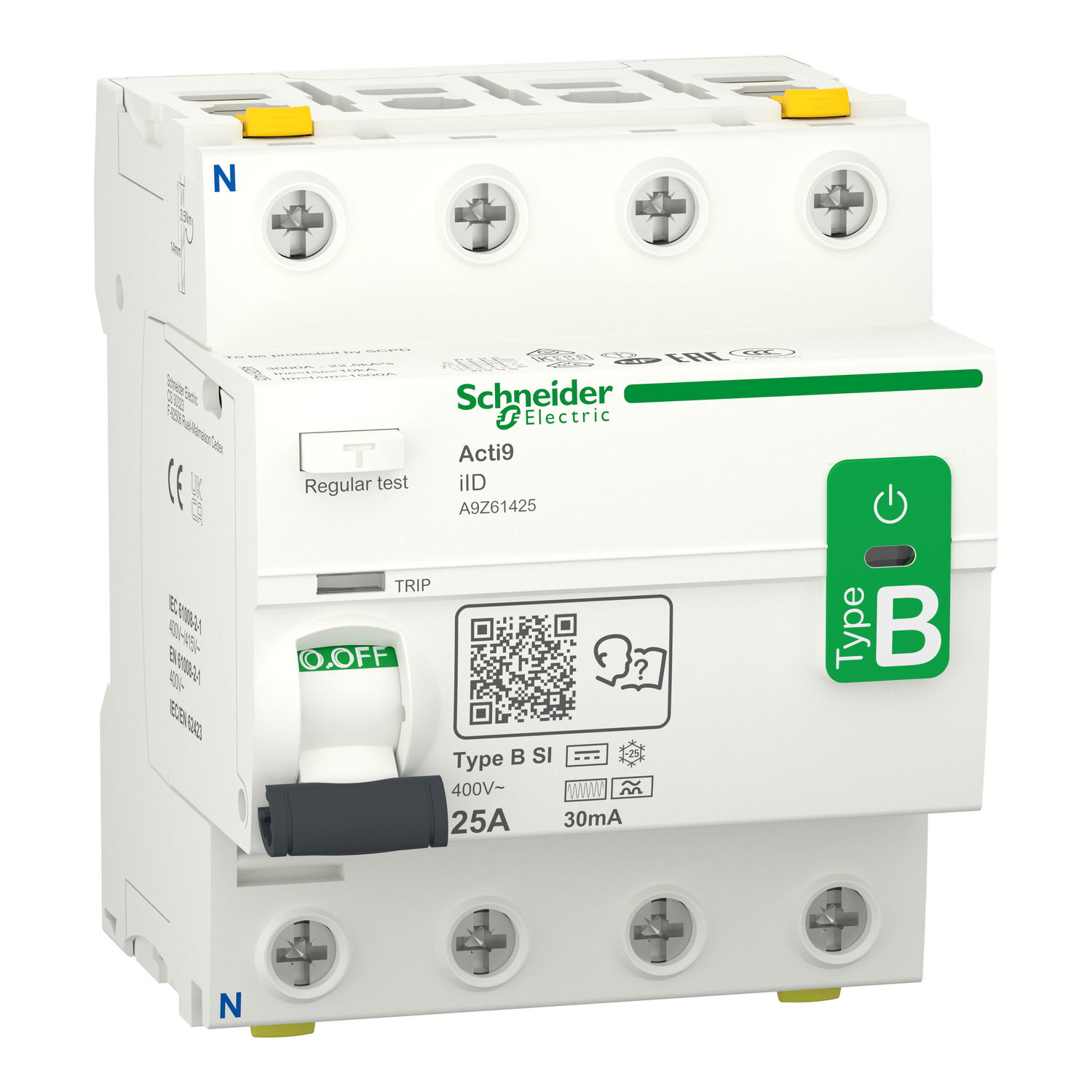

Acti9 iID - Residual Current Circuit Breaker - 4P - 25A - 30mA - B-SI type

Link copied
SKU
EAN
GTIN
MPN

Acti9 iID - Residual Current Circuit Breaker - 4P - 25A - 30mA - B-SI type by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £741.03 to £1,018.00 excl. VAT. Voltimum+ members earn 118 points per unit.

This Acti9 iID product is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, 30mA earth leakage sensitivity and B-SI type protection class. This product protects against electric shock by direct contact. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance. This product complies with IEC/EN 61008-2-1 and IEC/EN 62423 standards. It is certified with CCC certification. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue rated operational voltage is 400VAC. It is DIN rail mountable. The width in 9mm pitches is 8. The pollution degree is 3. The overvoltage category is IV. The product colour is white (RAL 9003). The dimensions are (W) 72mm x (H) 88mm x (D) 79mm. The weight is 415g. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Voltimum+ Loyalty Programme Loyalty points: 118

Price range: £ 741.03 - £ 1,018.00 Excl. VAT

Specifications

Frequency 50 Hz
Power loss 0.53 W
Voltage type AC
Rated current 25 A
Rated voltage 400 V
Built-in depth 44 mm
Explosion-proof no
Mounting method DIN rail
Pollution degree 3
Leakage current type B
Selective protection no
With interlocking device no
Rated insulation voltage Ui 500 V
Additional equipment possible yes
Ambient temperature during operating
Short-circuit breaking capacity (Icw) -
Connectable conductor cross section multi-wired

Documents

Declaration of Conformity (Sustainability)

A9Z61425 REACh Regulation

Open

User guide

Acti9 iID B-SI Type Residual Current Device iID - User Guide and FAQs

Open

Instruction sheet

Instruction sheet - Acti9 iID B-SI type

Open

Product data sheet

Open

Catalog

Multi9 - Catalog 13 April 2026 - Multistandard protection for OEM applications

Open

Declaration of Conformity (Sustainability)

A9Z61425 EU RoHS Directive

Open

Declaration of conformity

EU DoC_FD19010701D_RCCB iID type B

Open

Declaration of Conformity (Sustainability)

A9Z61425 POP Directive

Open
