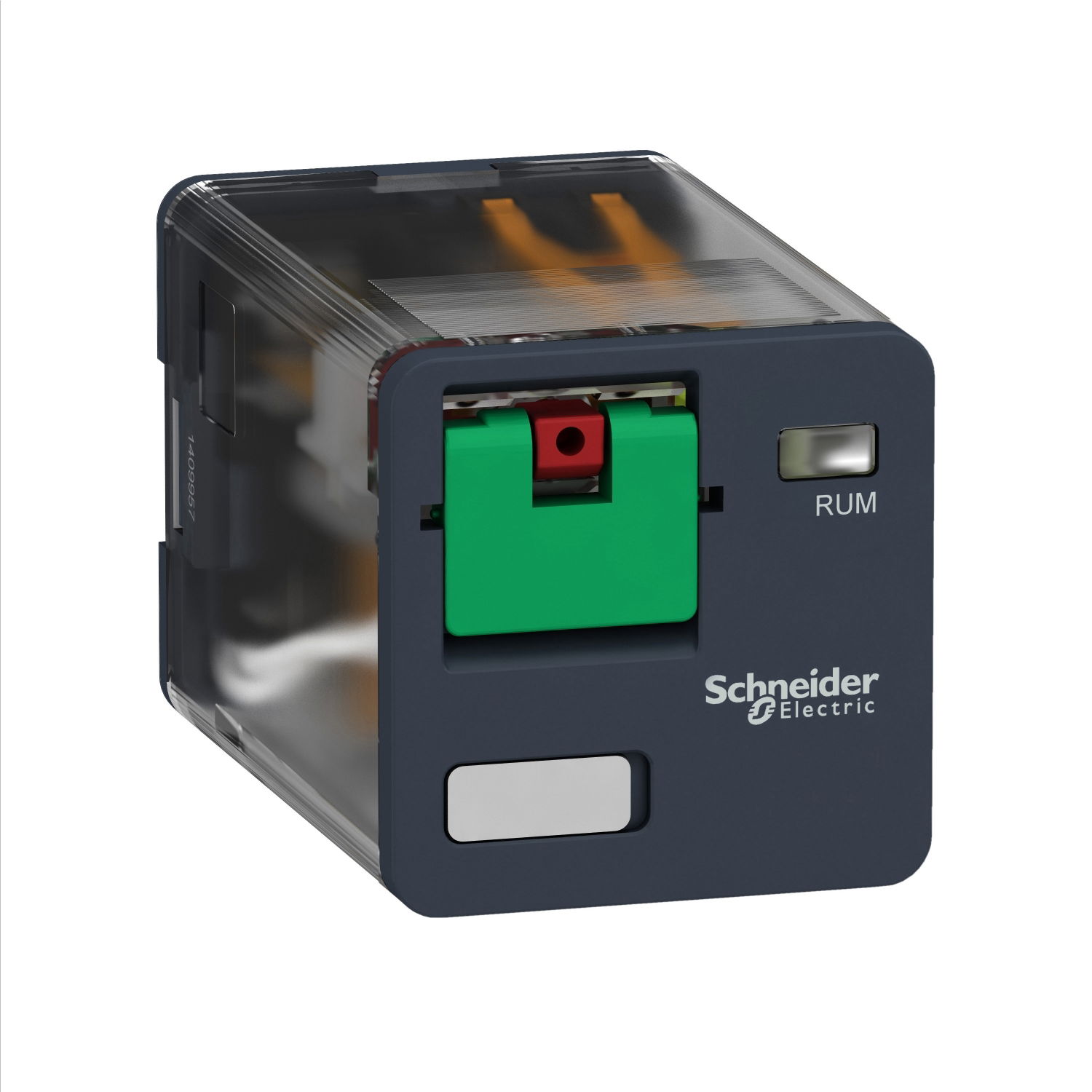

Universal plug-in relay - Harmony RUM - 3 C/O - 48 V AC - 10 A

Universal plug-in relay - Harmony RUM - 3 C/O - 48 V AC - 10 A

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 48V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RUMC31E7
EAN: 3606480626838
GTIN: 3606480626838
MPN: RUMC31E7

V+ Loyalty points:

5

Price: £ 13.34 Excl. VAT

Specifications

Depth 56 mm
Width 35 mm
Height 35.4 mm
Nominal current 10 A
Material contact Other
Drive, polarization Polarized
With LED indication no
Complete with socket no
Max. starting current -
With detachable clamps no
Drive, switching attitude Mono stable
Operating voltage AC 50 Hz
Voltage type for actuating AC
Type of electric connection Plug-in connection
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Number of contacts as change-over contact 3
Number of contacts as normally closed contact 0
