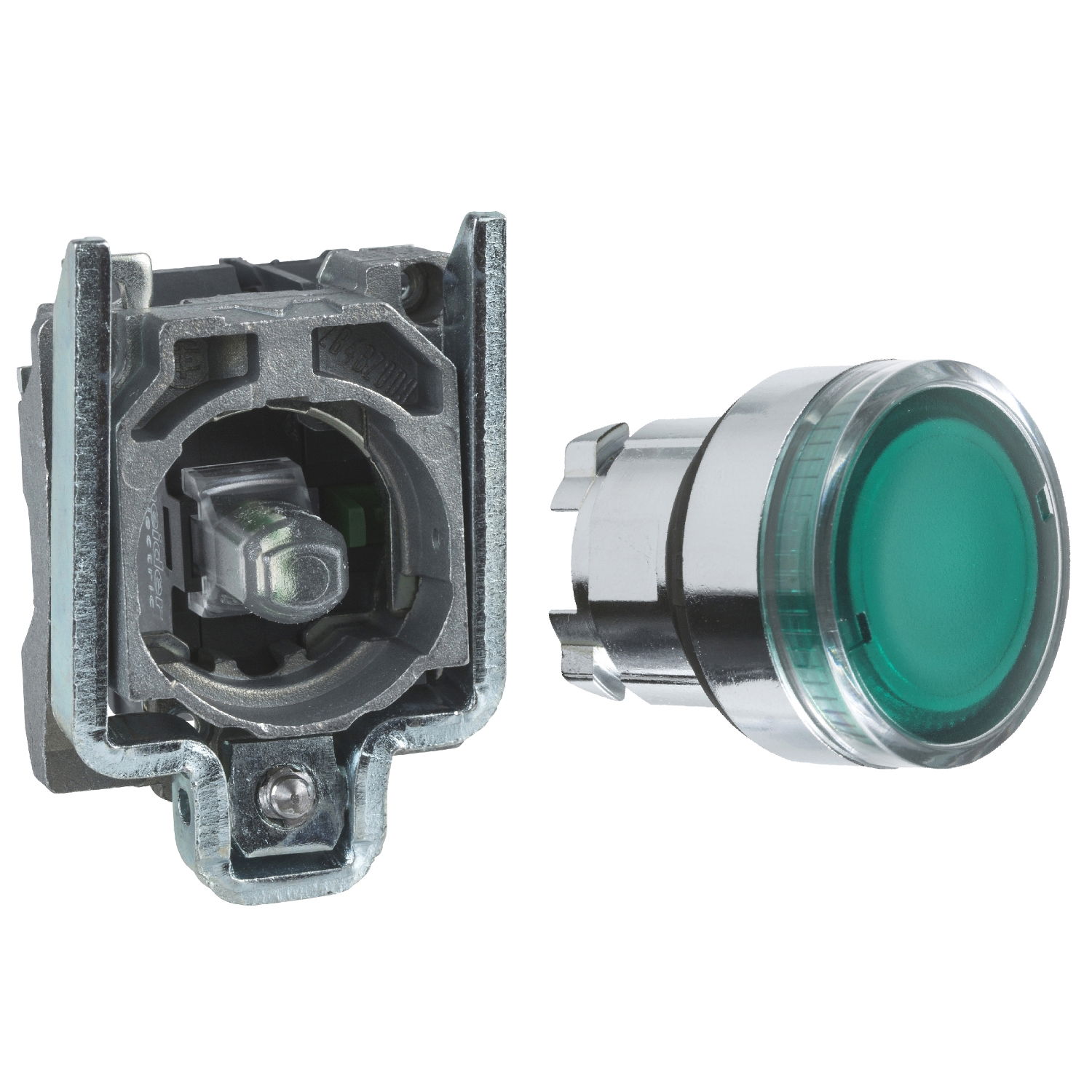

Illuminated push button, Harmony XB4, green flush complete illum pushbutton Ø22 mm spring return 1 NO 24 V

Link copied
SKU
EAN
GTIN
MPN

Illuminated push button, Harmony XB4, green flush complete illum pushbutton Ø22 mm spring return 1 NO 24 V by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £28.52 to £31.61 excl. VAT. Voltimum+ members earn 4 points per unit.

This Harmony XB4 illuminated green flush pushbutton operates with a spring return mechanism, is supplied with 24V AC DC, and uses a universal LED. It has a chromium-plated metal bezel and a zamak fixing collar. This illuminated pushbutton provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with screw clamp terminals. It is distinguishable visually at a distance thanks to a bright and long-lasting LED illumination. The XB4BW33B1 pushbutton is equipped with one normally open (NO) contact, featuring a slow break operation. This product is made from metal, it weighs 97g. It is impact-resistant, dust-resistant, water resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This product meets many standards, including UL 508, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4 standards, and certifications such as BV, CSA, LROS (Lloyd's Register of Shipping), DNV, and UL listed. Legend holders, marked or unmarked legends for this pushbutton, can be purchased separately. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Voltimum+ Loyalty Programme Loyalty points: 4

Price range: £ 28.52 - £ 31.61 Excl. VAT

Specifications

Transparent yes
Colour button Green
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Metal
Suitable for lighting yes
Degree of protection (IP) IP66
Number of command positions 1
Type of electric connection Screw connection
Number of contacts as normally open contact 1
