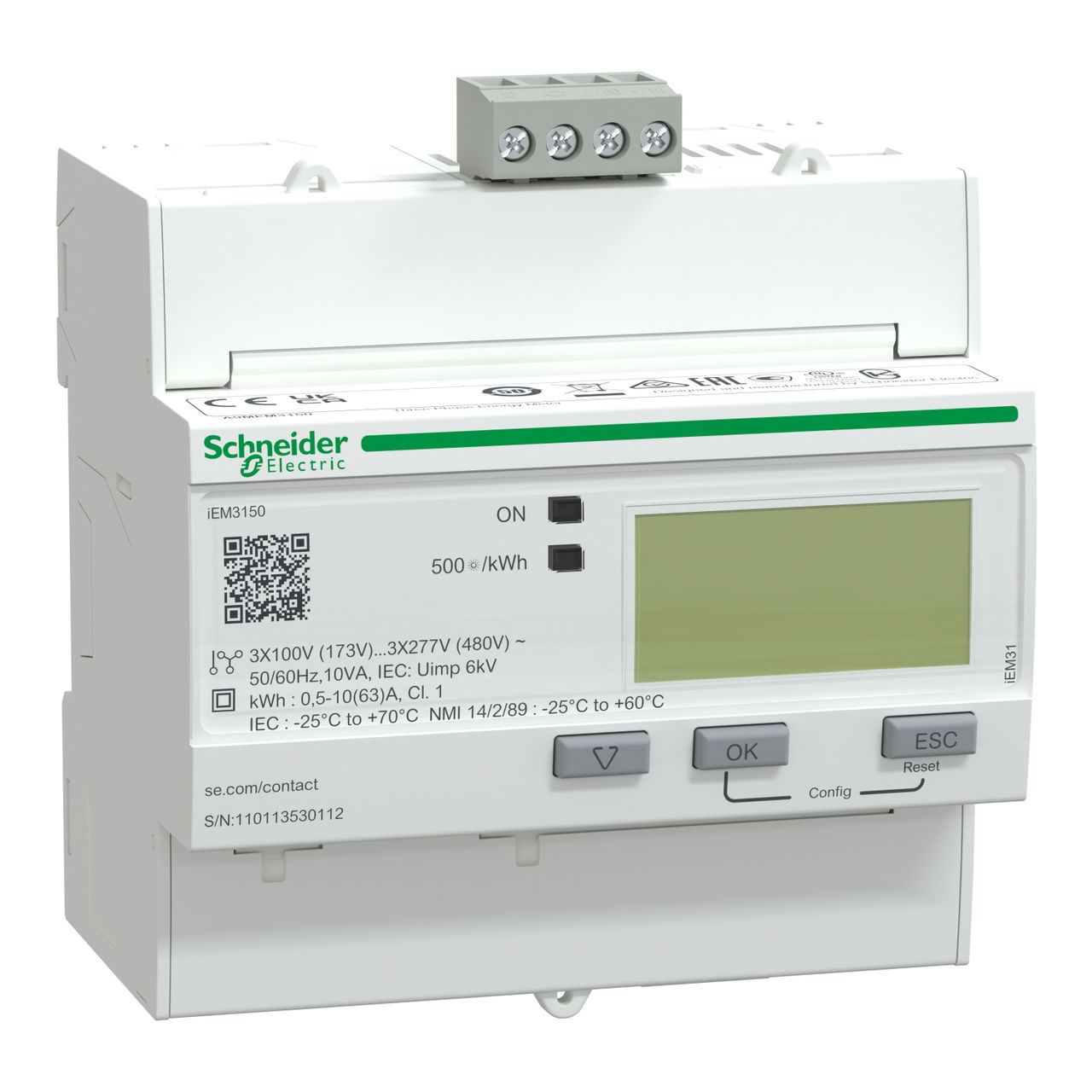

IEM3150 energy meter - 63 A - Modbus

Link copied
SKU
EAN
GTIN
MPN

IEM3150 energy meter - 63 A - Modbus by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £310.45 excl. VAT. Voltimum+ members earn 51 points per unit.

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, and per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. No secondary communication ports. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.

Voltimum+ Loyalty Programme Loyalty points: 51

Price: £ 310.45 Excl. VAT

Specifications

Depth 69 mm
Model Direct measurement
Width 90 mm
Height 95 mm
Approval Domestic
Frequency
Pole type Three conductor/four conductor
Calibrated no
Pulse type -
Tariff type One-tariff
Suitable for Purchase
Accuracy class B
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of interface Modbus
Max. current (Imax) 63 A
Nominal current (In) 63 A
Nominal voltage (Un) N-L
Degree of protection (NEMA) 1
Number of positions total (counter) 9
