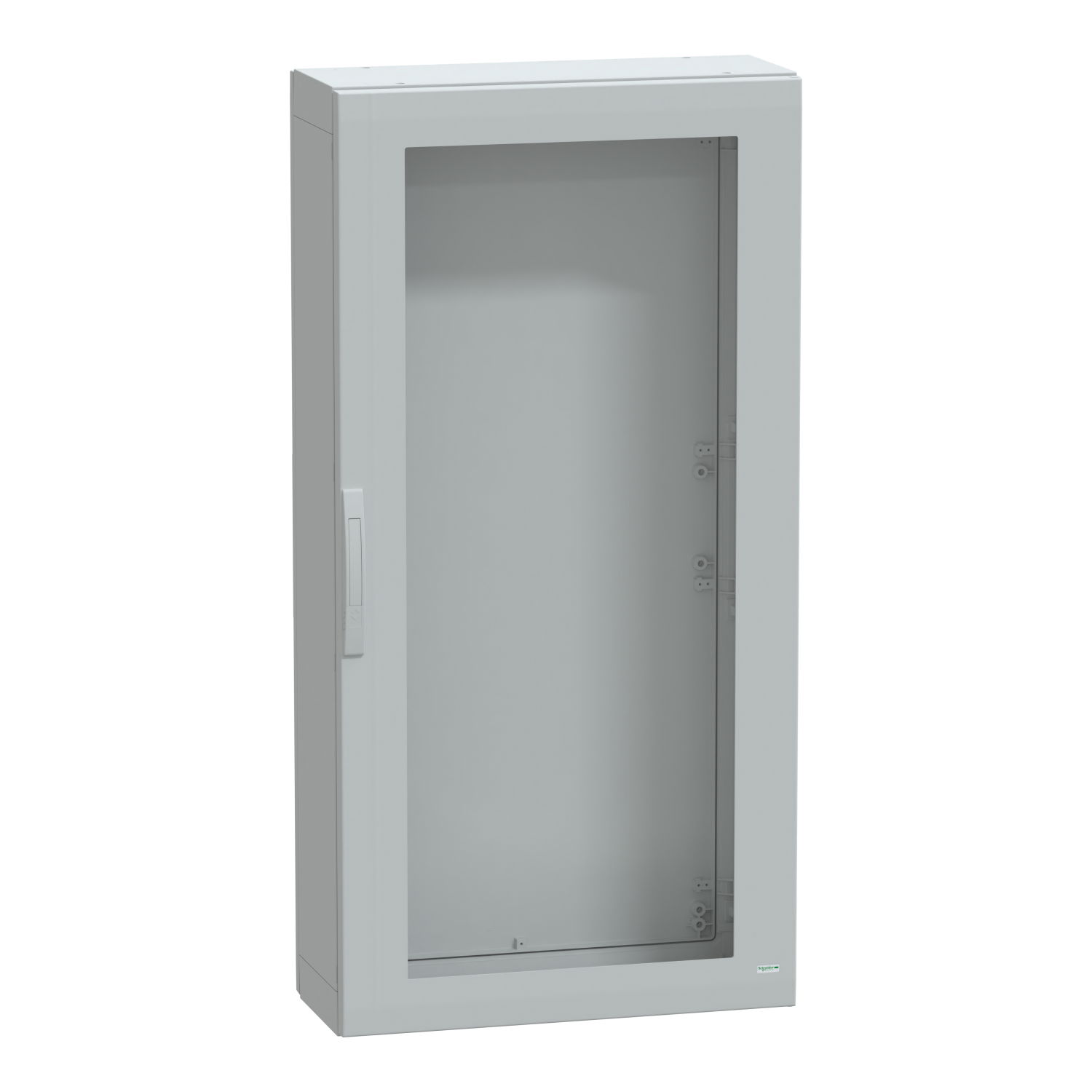

Floor standing encl. polyester vers.PLA compl.sealed 1500x750x320 IP65 glazed

Floor standing encl. polyester vers.PLA compl.sealed 1500x750x320 IP65 glazed

"This PLA is a multi-purpose, floor-standing enclosure that is suitable for a variety of applications" "It is 1500mm in height, 750mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, both indoors and outdoors" "The enclosure is available in grey (RAL 7035) color and consists of two side parts, one transparent front door, one rear panel, and one plinth" "The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door is equipped with a four-point lock and a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure has an IK08 rating (IEC 62262), indicating high resistance to impacts, and is rated IP65 (IEC 60529), providing complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL/cUL listed and DNV Marine certified, and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Product identifiers

SKU: NSYPLA1573TG
EAN: 3606480774805
GTIN: 3606480774805
MPN: NSYPLA1573TG

Voltimum+ Loyalty Programme Loyalty points: 142

Price: £ 852.00 Excl. VAT

Videos

Promotional video

Specifications

Depth 320 mm
Width 750 mm
Colour Grey
Height 1500 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Polyester
Surface finishing Untreated
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 4
Suitable for metrical mounting no
Max. permissible load of the door(s) according to IEC 62208 -
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
