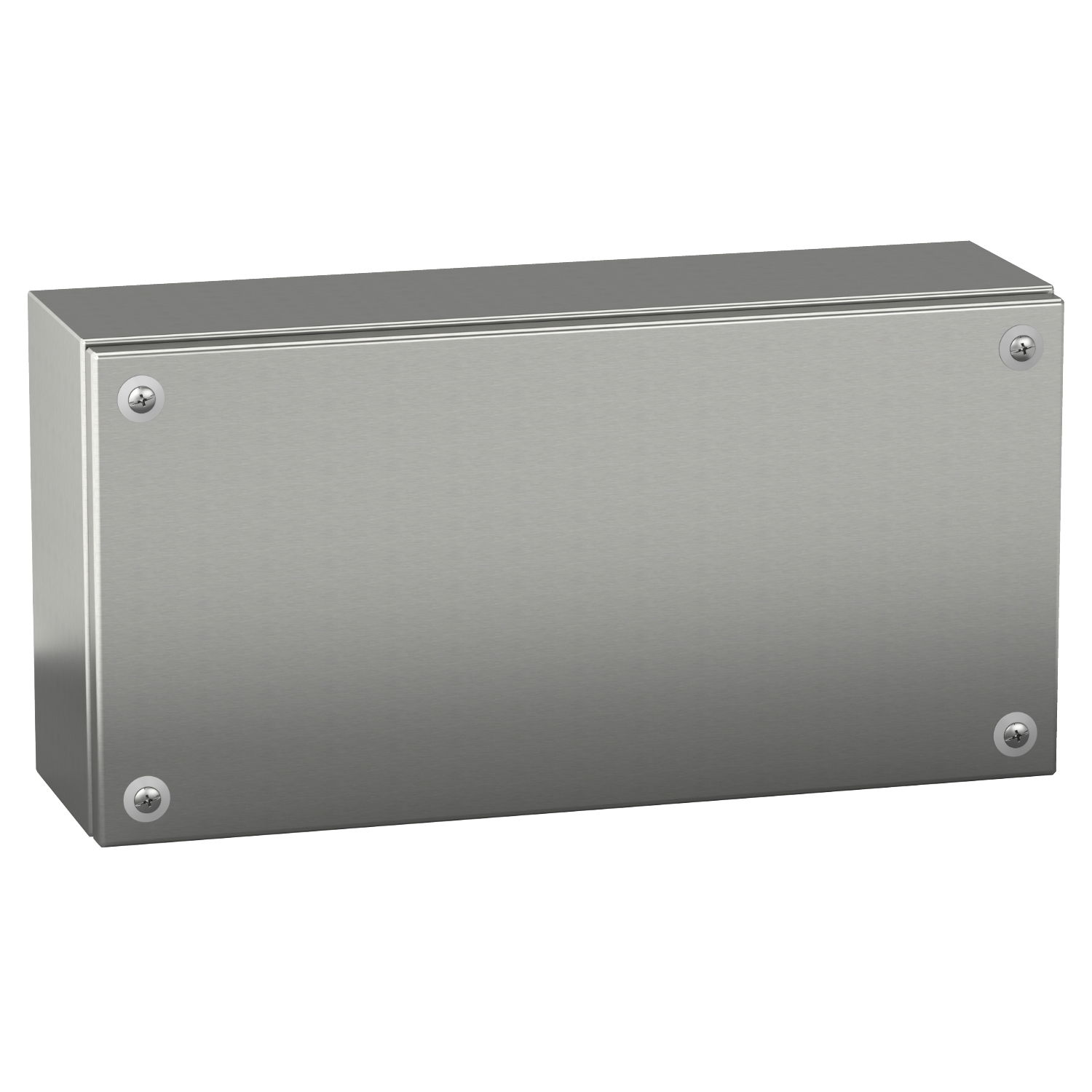

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x400x120 mm, IP66"

Link copied
SKU
EAN
GTIN
MPN

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x400x120 mm, IP66" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £269.11 excl. VAT. Voltimum+ members earn 31 points per unit.

PanelSeT SBX stainless steel 304L industrial box for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 200mm, 400mm and 120mm respectively The box is made with a Scotch-Brite® brushed surface finish The box consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 3,2kg It meets the standards of IEC 62208 and is certified by BV, BVM and UL The enclosure is wall mounted and the cover is fixed using half turn metal screws The ambient air temperature for storage and operation is -35-60°C and -35-80°C respectively

Voltimum+ Loyalty Programme Loyalty points: 31

Price: £ 269.11 Excl. VAT

Specifications

Depth 120 mm
Shape Square
Width 400 mm
Colour Grey
Length 400 mm
EFUK0020 no
EFUK0021 yes
Material Stainless steel
RAL-number 7035
Halogen free yes
Type of inlet -
For Ex-zone gas None
Mounting method Surface mounted
Cover attachment Screwed
Number of inlets 0
Extension possible no
Operating temperature
Explosion-tested version no
Degree of protection (NEMA) 4
Rated insulation voltage Ui -
Material plate thickness cabinet 1.2 mm

Documents

Declaration of Conformity (Sustainability)

NSYSBX204012 REACh Regulation

Open

Instruction sheet

PanelSeT SBX - Stainless Steel Industrial Boxes and Accessories - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYSBX204012 EU RoHS Directive

Open

Environmental Disclosure

PanelSeT SBX – Stainless Steel Industrial Box
