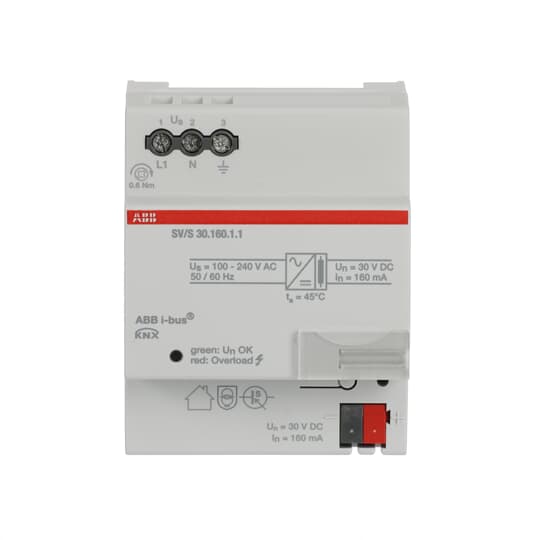

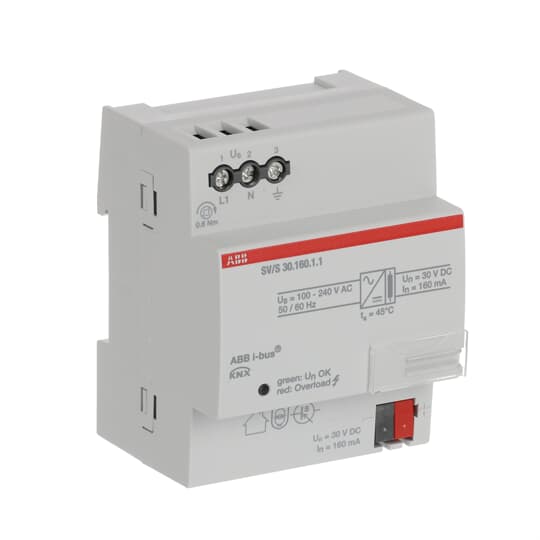

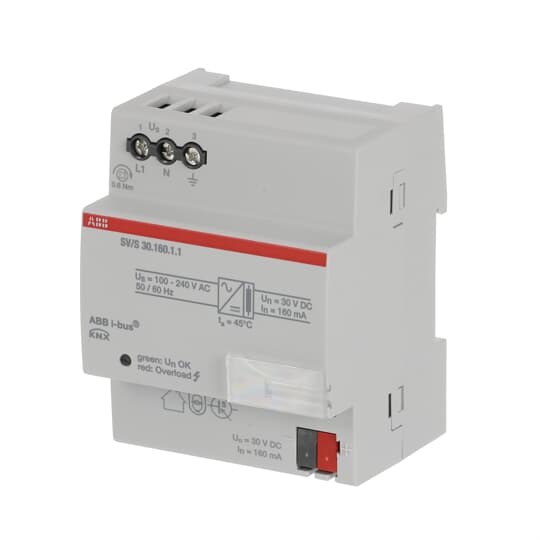

SV/S30.160.1.1 Power Supply, 160 mA, MDRC
KNX power supplies 160 mA generate and monitor the KNX system voltage (SELV). The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuit and overload protected. The two-color LED indicates device output status. With two-coloured status indicator and wide range input from 85…265 V AC, 50/60 Hz.
Product identifiers
SKU: 2CDG110144R0011
EAN: 4016779866668
GTIN: 4016779866668
MPN: SV/S 30.160.1.1
Loyalty points: 94
Price range: £ 191.17 - £ 198.90 Excl. VAT
Categories
Features
|
Bus system KNX
|
yes
|
|
Bus system LON
|
no
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
Other bus systems
|
None
|
|
Secondary voltage
|
-
|
|
Bus system Powernet
|
no
|
|
Max. output current
|
160.00 mA
|
|
With LED indication
|
yes
|
|
Bus voltage stockable
|
no
|
|
Number of lines to feed
|
1
|
|
Bus system radio frequency
|
no
|
|
Number of integrated choke coils
|
1
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Width in number of modular spacings
|
4.0
|
