Component terminal block double-deck with diode 1N4007 gray

Name: Component terminal block double-deck with diode 1N4007 gray
Brand: Wago
SKU: 870-540/281-410
Availability: OutOfStock

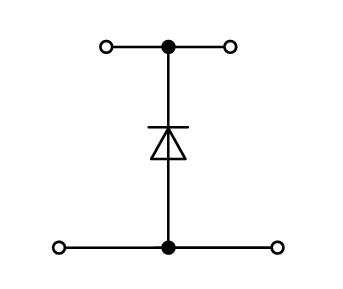

Component terminal block; double-deck; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; gray

Product identifiers

SKU: 870-540/281-410

EAN: 4045454198541

GTIN: 4045454198541

MPN: 870-540/281-410

Price: £ 270.50 Excl. VAT

Terminal blocks

Specifications

Depth	40
Width	5
Colour	Grey
Height	70
EFNA0008	V0
Rated voltage	250
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	2
Rated current In	0.5
Type of component	Diode
Operating temperature	105 - 105
Closing plate required	yes
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.08 - 2.5
Connectable conductor cross section multi-wired	0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 4
