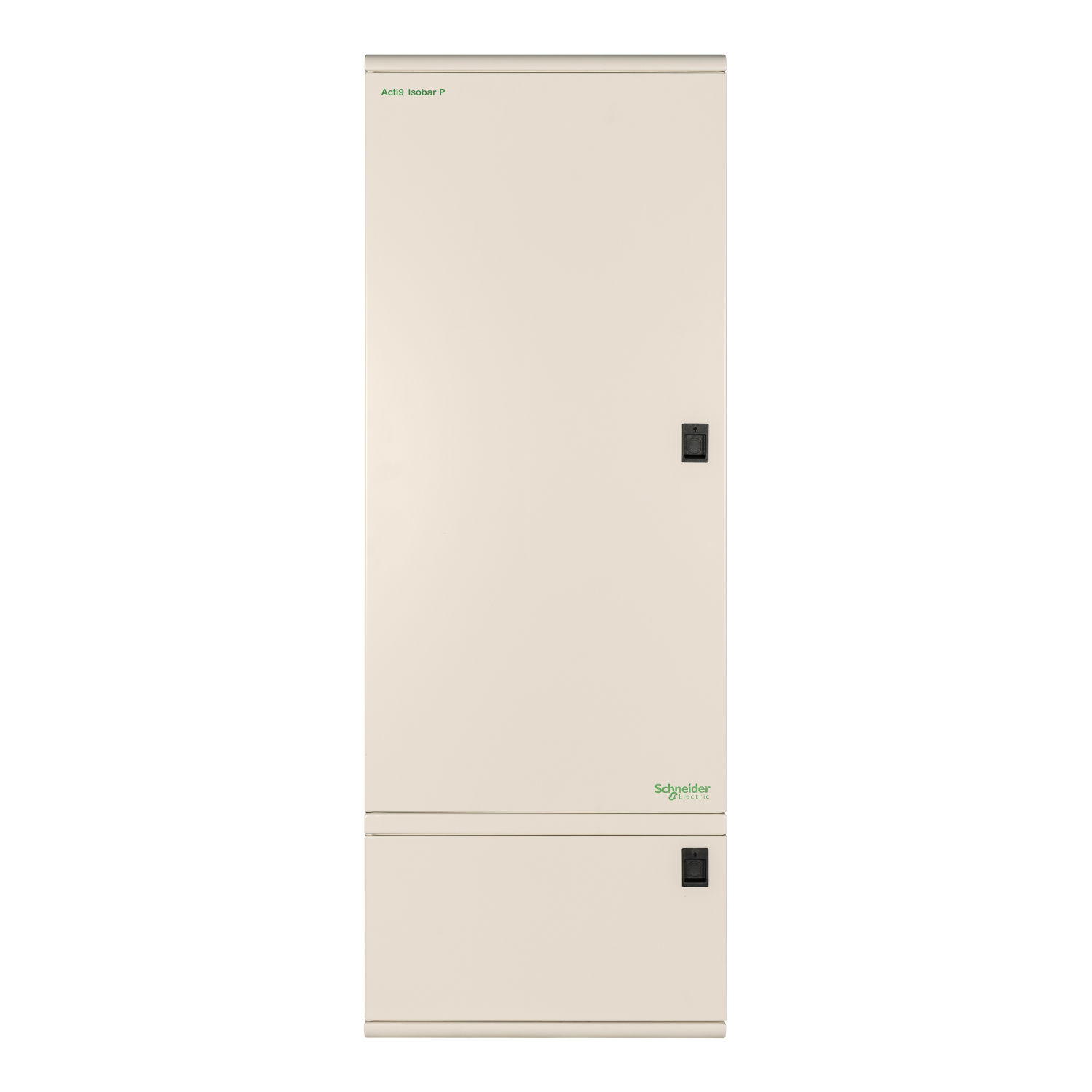

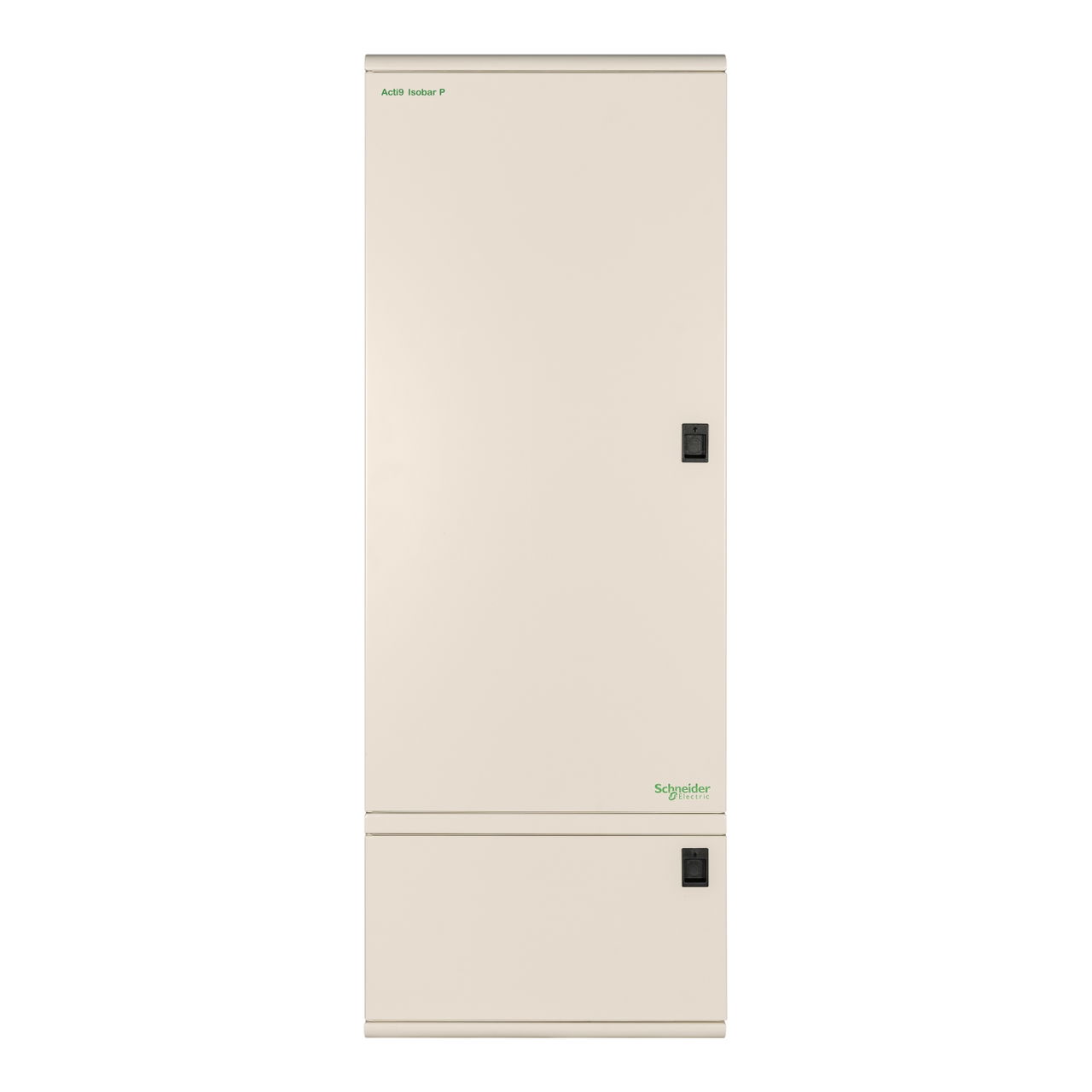

Acti9 Isobar B P - split metered distribution board -250A - 8 + 8 ways TP+N

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar B P - split metered distribution board -250A - 8 + 8 ways TP+N by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 596 points per unit.

This Acti9 Isobar P B product is a split metered distribution board, up to 250A. It is a 8 ways of 3 poles outgoer for lower pan assembly and 8 ways of 3 poles outgoer for upper pan assembly. This distribution board includes 2 MID meters with communications. The incomer device like switch disconnector or residual current circuit breaker is supplied separately. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 1694mm x (D) 139mm. According to BS/EN 60529 standard, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL 9001). This distribution board is compliant with BS/EN 61439-3 standard.

Voltimum+ Loyalty Programme Loyalty points: 596

Price: £ 3,578.00 Excl. VAT

Specifications

Depth 139 mm
Width 470 mm
Colour Other
Height 1694 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 8
