Isobar B - neutral bar - 1N - for distribution board - 8 ways

Link copied
SKU
EAN
GTIN
MPN

Isobar B - neutral bar - 1N - for distribution board - 8 ways by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Rexel Group. It is currently in stock at 1 of them. Trade price £90.54 excl. VAT. Voltimum+ members earn 10 points per unit.

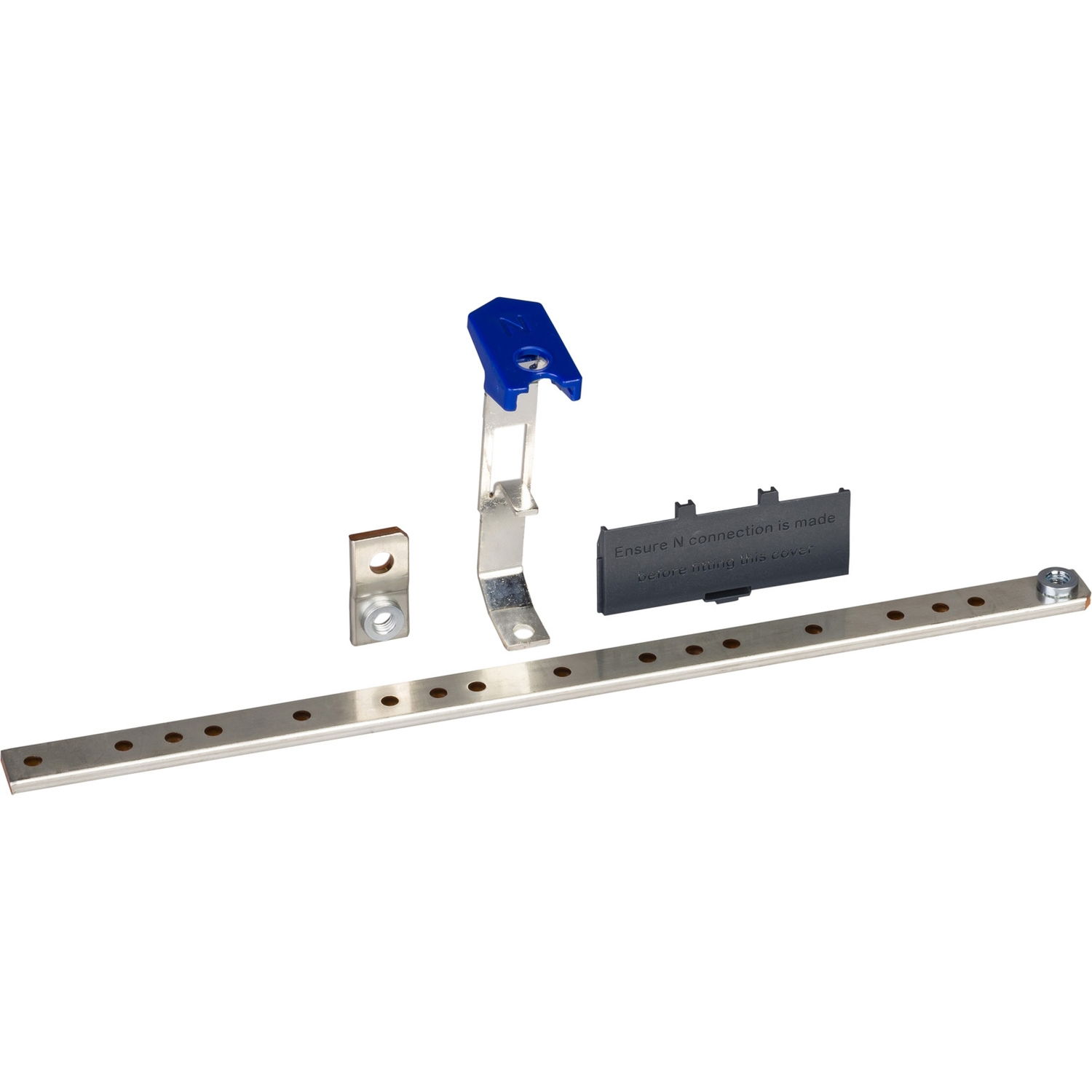

This Acti 9 Isobar B product is a neutral bar composed of 4 busbar links and busbar cover. This bar has 8 outgoers. It has been designed to be installed into an Isobar B 3P+N distribution board. The Ie rated operational current is 250A at 400/415VAC. Its dimensions are (H) 538mm x (D) 138mm. The ambiant temperature for operation is -35°C to 70°, while the temperature for storage is -40°C to 80°C.

Voltimum+ Loyalty Programme Loyalty points: 10

Price: £ 90.54 Excl. VAT

Specifications

Depth 138 mm
Width -
Height 538 mm
With cover no
Rail height -
Busbar distance -
Busbar position Bottom centre
Number of poles 3
Max. rated current 250 A
