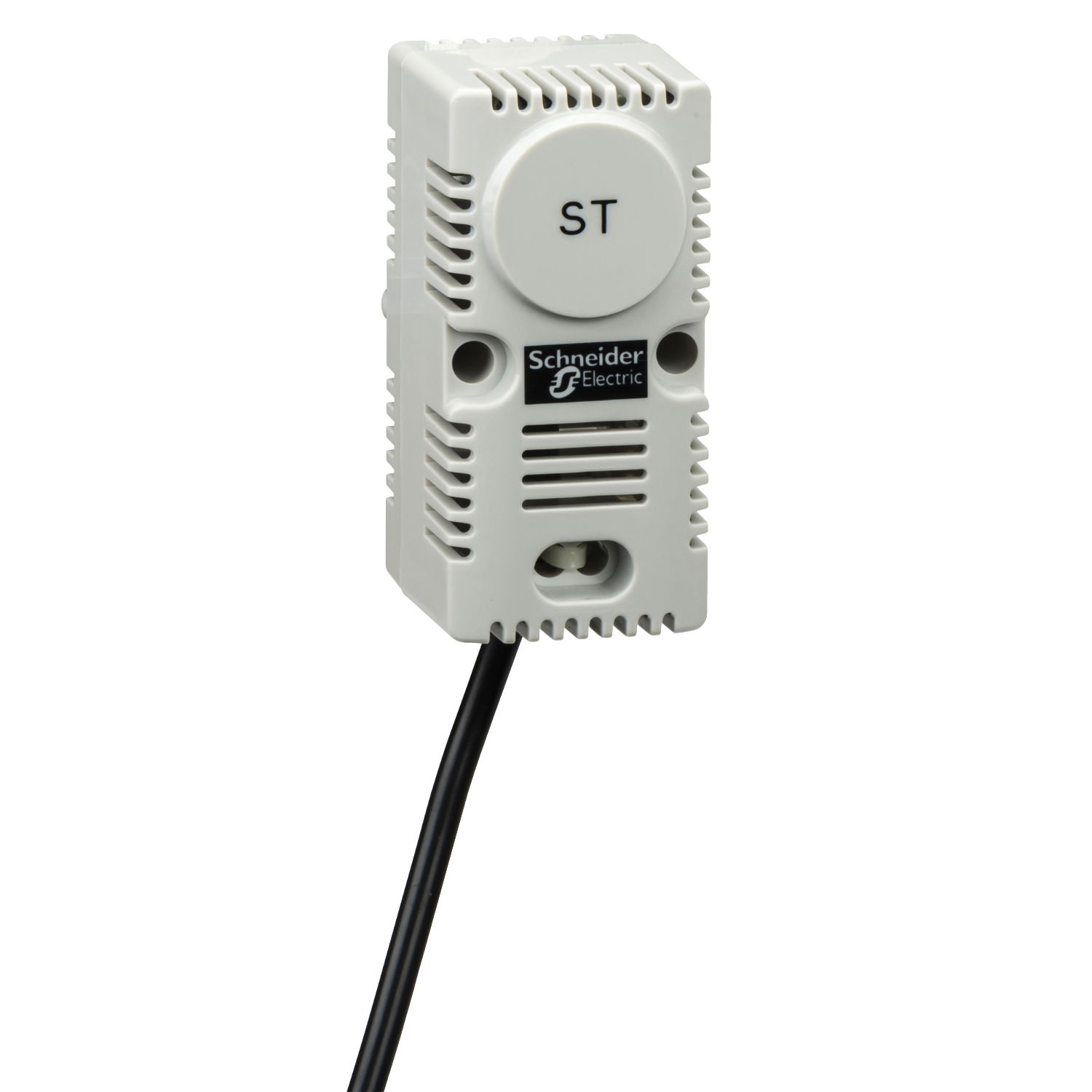

Climasys CC - temperature sensor - temperature range -30…+80°C - cord=3m

Climasys CC - temperature sensor - temperature range -30…+80°C - cord=3m

Product identifiers

SKU: NSYCCASTE
EAN: 3606480632130
GTIN: 3606480632130
MPN: NSYCCASTE

V+ Loyalty points:

13

Price range: £ 32.41 - £ 32.73 Excl. VAT


Categories

Features

Wireless
FALSE
Bluetooth
FALSE
Tolerance
2 %
Technology
Other
Sensor type
NTC, 10K
Cable length
3 m
UV resistant
FALSE
With display
FALSE
With housing
TRUE
Housing depth
43 mm
Housing width
33 mm
Insert length
-
Sensor length
25.8 mm
Housing colour
Grey
Housing height
60 mm
Explosion-proof
FALSE
LoRa technology
FALSE
Type of display
-
Cover attachment
Screwed
Material element
Other
Suitable for air
TRUE
Wi-Fi-compatible
FALSE
Measurement of CO2
FALSE
Measurement of VOC
FALSE
Suitable for gases
FALSE
Ambient temperature
CO2 measuring range
Standby push button
FALSE
VOC measuring range
Enthalpy measurement
FALSE
Scope of application
Other
Suitable for liquids
FALSE
Trend representation
-
Type of power supply
-
Fixed cable to sensor
TRUE
With mounting material
TRUE
Diameter sensor element
7 mm
IFTTT support available
FALSE
Measurement of dewpoint
FALSE
Offset setting possible
FALSE
Rated supply voltage AC
Rated supply voltage DC
Dewpoint measuring range
Enthalpy measuring range
Number of output signals
1
Degree of protection (IP)
IP67
Number of measuring points
1
Number of measuring ranges
-
Suitable for duct mounting
FALSE
Suitable for tube mounting
FALSE
Suitable for wall mounting
TRUE
Error registration possible
FALSE
Supporting protocol for KNX
FALSE
Temperature measuring range
Type of electric connection
Screw connection
Compatible with Amazon Alexa
FALSE
Average temperature measuring
FALSE
Compatible with Apple HomeKit
FALSE
Sensor element inside housing
FALSE
Suitable for ceiling mounting
TRUE
Active temperature measurement
TRUE
NFC (Near Field Communication)
FALSE
Sensor element outside housing
-
Supporting protocol for BACnet
FALSE
Supporting protocol for Modbus
FALSE
Passive temperature measurement
-
Compatible with Google Assistant
FALSE
With reverse polarity protection
-
Potentiometer with adjustment knob
FALSE
Number of output ranges 0 V ... 5 V
-
Particulate matter measurement (PM)
FALSE
Measurement of absolute air humidity
FALSE
Measurement of relative air humidity
FALSE
Number of output ranges 0 V ... 10 V
-
Number of output ranges 2 V ... 10 V
-
Measuring range absolute air humidity
Measuring range relative air humidity
Max. ambient humidity (non-condensing)
-
Number of output ranges 0 mA ... 20 mA
-
Number of output ranges 4 mA ... 20 mA
-
Particulate matter measuring range (PM)
Scope of application, flow speed medium
Supporting protocol for MP (multi point)
FALSE
