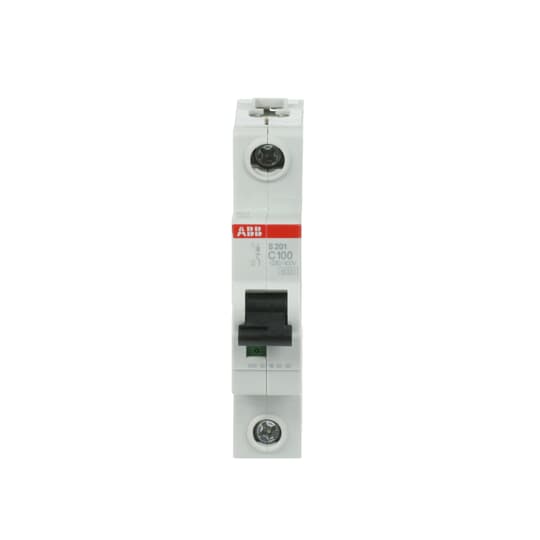

Miniature Circuit Breaker - S200 80-100A - 1P - 100 A - C - (AC) 6 kA

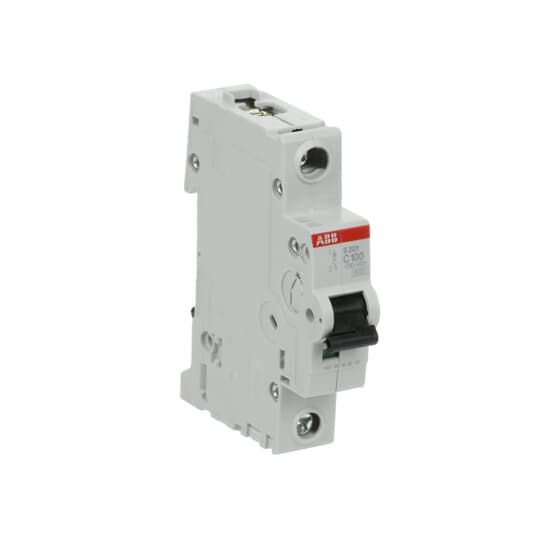

Miniature Circuit Breaker - S200 80-100A - 1P - 100 A - C - (AC) 6 kA – Image 2 of 3

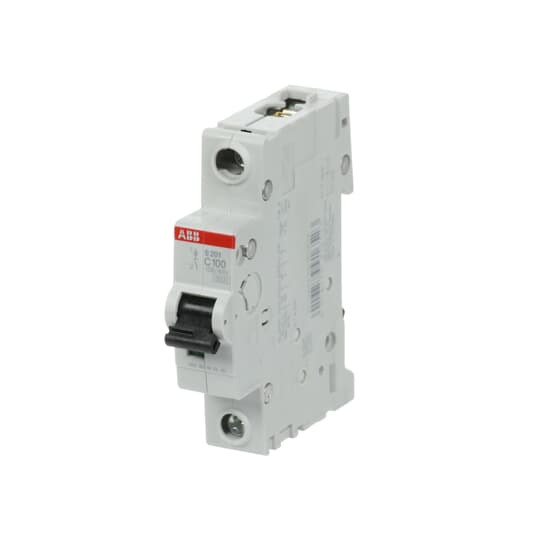

Miniature Circuit Breaker - S200 80-100A - 1P - 100 A - C - (AC) 6 kA – Image 3 of 3

1 / 3

Miniature Circuit Breaker - S200 80-100A - 1P - 100 A - C - (AC) 6 kA

Name: Miniature Circuit Breaker - S200 80-100A - 1P - 100 A - C - (AC) 6 kA
Brand: ABB
SKU: 2CDS251001R0824
Availability: InStock

Miniature Circuit Breaker - S200 80-100A - 1P - 100 A - C - (AC) 6 kA by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £55.29 to £68.96 excl. VAT. Voltimum+ members earn 30 points per unit.

S201-C100 Miniature Circuit Breake C-Char., 6kA, 100A, 1P

Product identifiers

SKU: 2CDS251001R0824

EAN: 4016779916523

GTIN: 4016779916523

MPN: S201-C100

Loyalty points: 30

Price range: £ 55.29 - £ 68.96 Excl. VAT

Specifications

Frequency
Power loss	9.8
Voltage type	AC
Rated current	100
Rated voltage	230
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	1
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	1
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	6
